Introduction

This chapter will introduce the detailed definitions of some common interface pins of our products

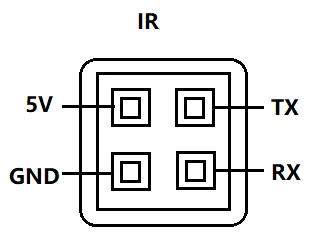

Device DEBUG port

M32HV(RS232) M32/M32H(TTL)

Device DEBUG port

ps: The male connector is the device-side interface, and the female connector is the line-side

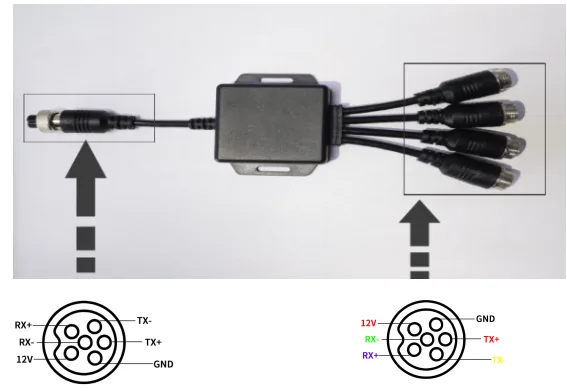

Equipment-side video four-core input port

<hr>

Equipment-side video four-core output port

<hr>

Equipment-side video six-core input port

<hr>

Device power input port

<hr>

Device video output port (CVBS)

<hr>

Device video output port (VGA)

<hr>

Device network input port (LAN)

<hr>

Peripheral: Network HUB input and output port

<hr>

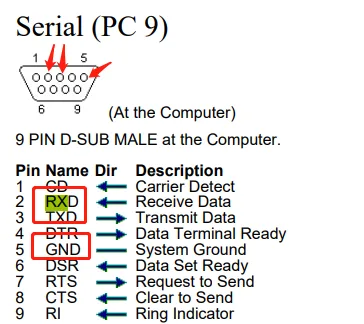

Device 232 debug port wiring definition

Device 232 debug port wiring definition

Note: Direction is DTE (Computer) relative DCE (Modem). Note: Do not connect SHIELD(1) to GND(7).

4pin female connector for sound and light alarm

4pin female connector for sound and light alarm
