Prerequisites:
- The device network can access the Internet normally, for example: 4G dial-up is successful or wired network routing is successful or WiFi connection is successful, refer to the "Function Usage">>>"Network Function" article introduction!
Operation steps:
Download this configuration file template Download config Unzip locally
Open the text editing tool and fill in "Device number" "Connection type" "Registered IP address" "Registered domain name address" "Registered port" Parameters saved
Parameter notes: strFD_DeviceNo="111111":Device number; ucFD_AddressType="0":Connection type IP registration;"1"Domain name registration; uiFD_IP="":Registered IP address; strFD_Domain="hy.ent.cn":Registered domain name address; usFD_Port="6608":Registered port
Unlock the device, remove the hard disk or SD card storage, use a hard disk reader or SD card reader to insert it into the computer, and open the root directory of the first storage partition

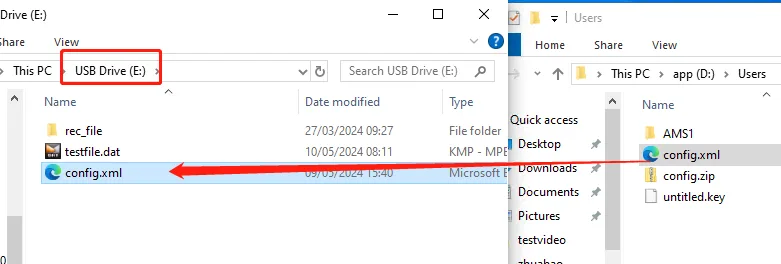

Copy the config configuration file you just edited and saved to this directory, disconnect the connection, insert the device and lock it

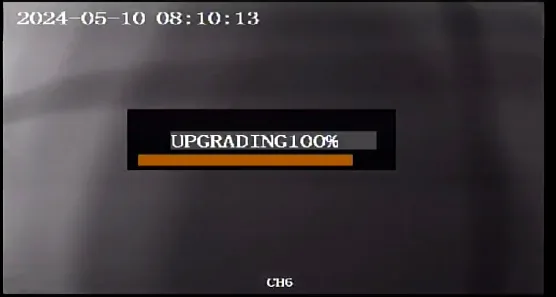

When the device is powered on, it will automatically import the configuration and restart. The configuration will take effect after the restart

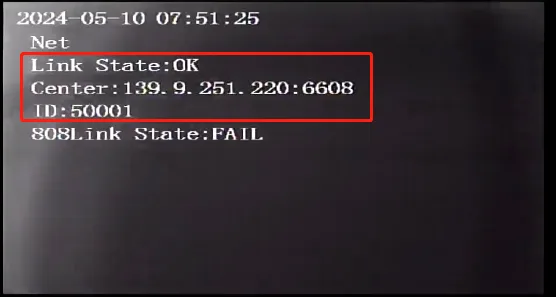

Check whether the registration is successful locally or check whether the platform is online
