Prerequisites:

  • The device and computer are in the same LAN, and the computer can ping the local IP address of the device

Operation steps:

  1. Click to download MmxConfig_V1.0.10.rar configuration tool, unzip and install, click "Mxc_Config" to open the tool Operation steps:

  2. Click Search to search for devices in the LAN Operation steps:

  3. Select the device to view the configuration Operation steps:

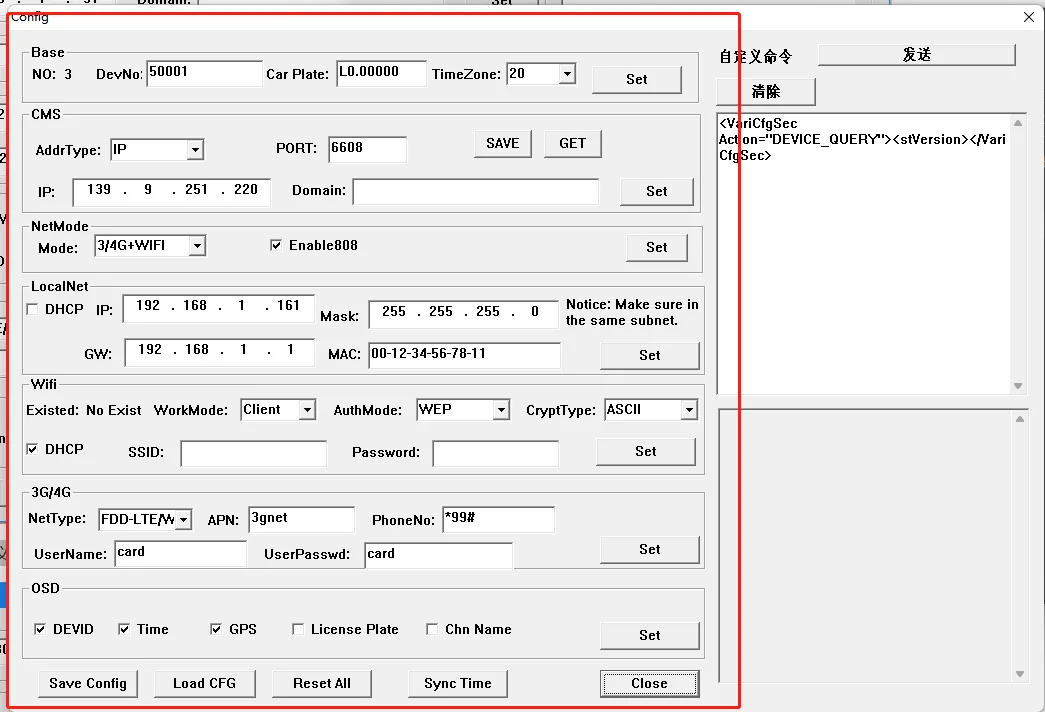

  4. On the left are some common function configuration items. After filling in the parameters, click the "set" button on the right to save the settings Operation steps:

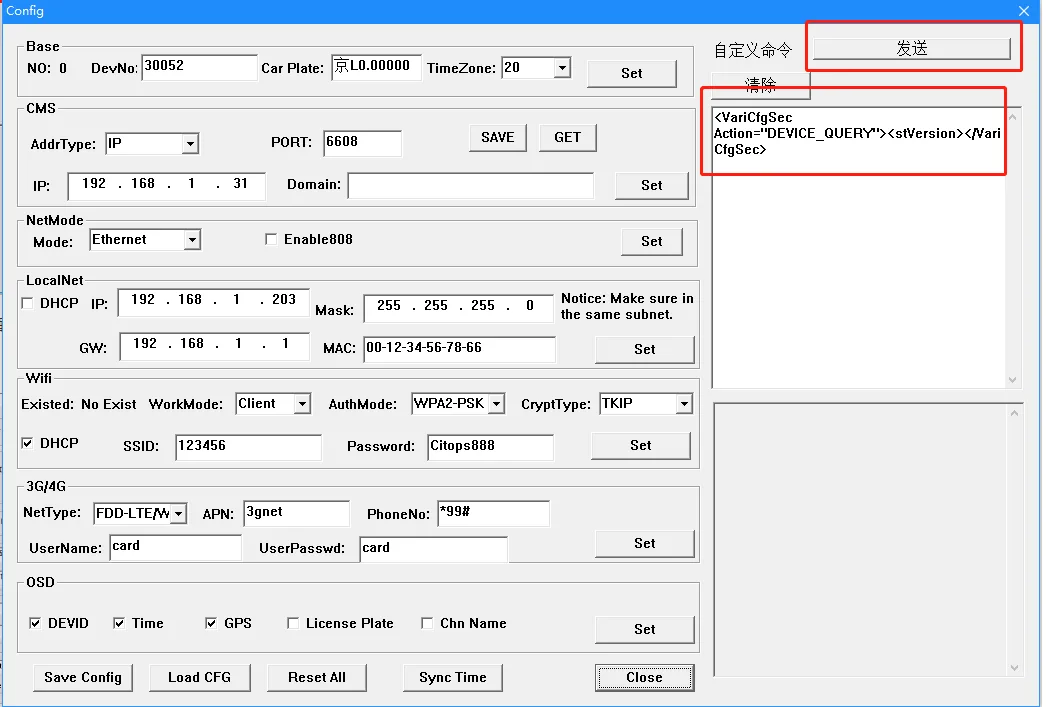

  5. On the right is the custom configuration command. Click to send Operation steps:

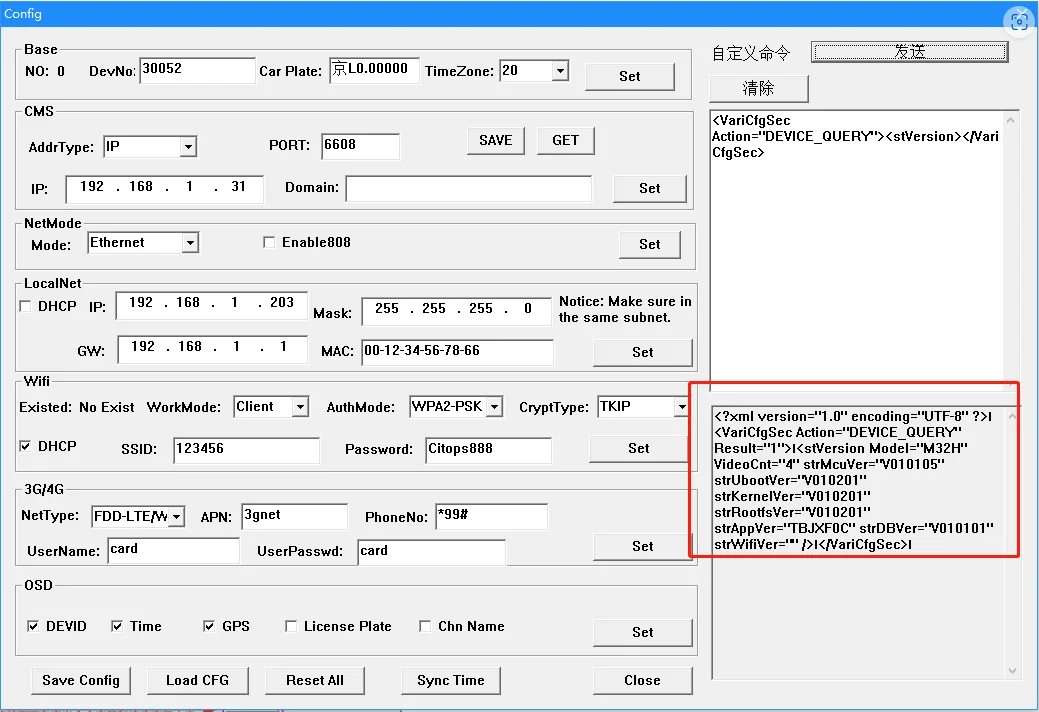

  6. Get the feedback result after sending Operation steps:

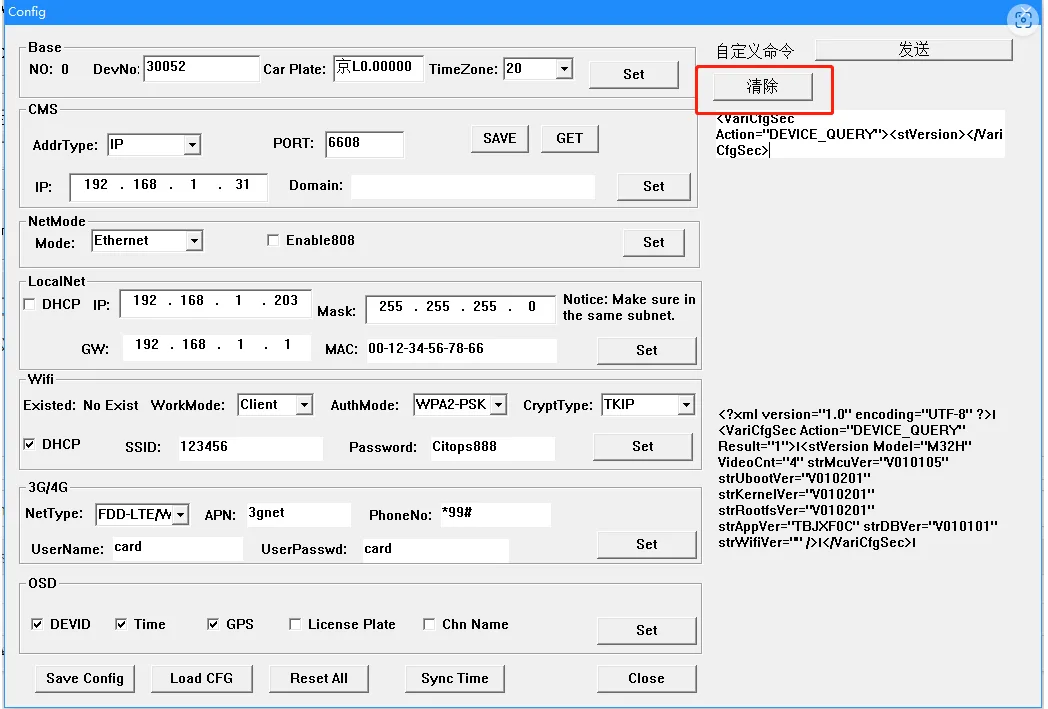

  7. Click to clear the contents of the custom command window and response window below Operation steps:
