Camera
TA4
Model MX-AHDX-TA4

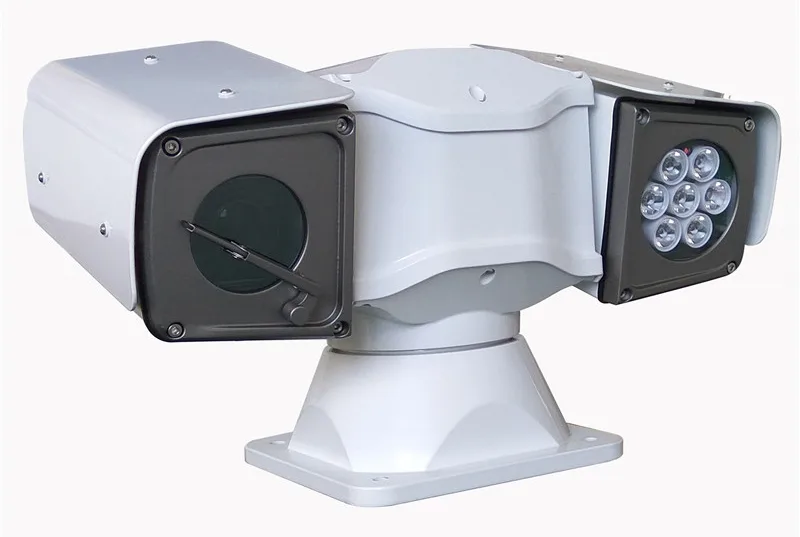

T-type vehicle PTZ camera with a freely adjustable lens angle and 100 m IR projection distance; waterproof sealed aluminum housing rated IP66 with integrated shockproof and anti-loosening design. Works with a 485 control keyboard and relay to integrate into MDVR systems.
Key Specs
| Pan/Tilt speed | 100°/S pan, 60°/S tilt |
|---|---|
| Preset positions | Up to 256 |
| IR projection distance | 100 meters |
| IR emitter | High-brightness LED array ×7 (850nm) |
| Waterproof grade | IP66 |
| Power | DC12V (Iin≥4A) |
| Working temperature | -35℃~55℃ |
Full Specification
Product model: MX-AHDX-TA4
Features:
◎ Exquisite design, exquisite workmanship, precise circuit and rigorous structure, reflecting the highest technology;
◎The lens is adjustable, and the angle can be adjusted at will during the installation process;
◎Long viewing distance and wide viewing angle;
◎Waterproof sealed aluminum cover, using special waterproof treatment materials, reaches IP66 waterproof effect, suitable for outdoor use;
◎Integrated structure, shockproof and anti-loosening design;

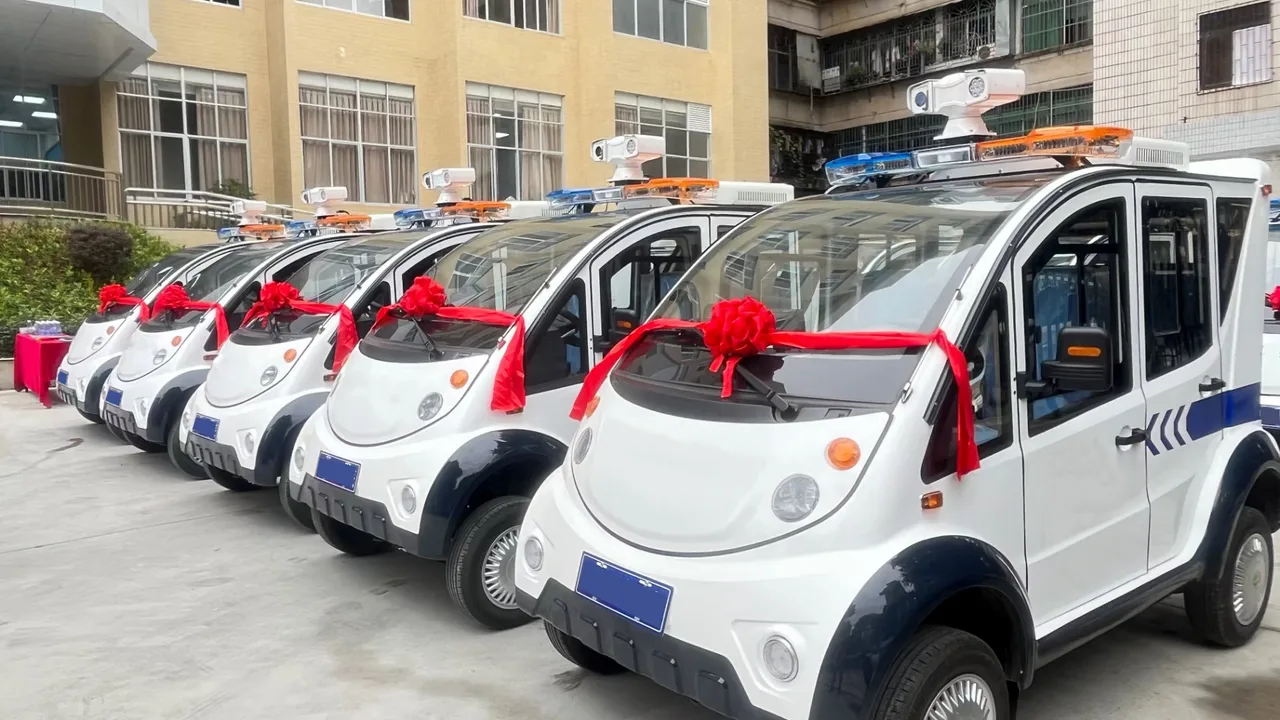

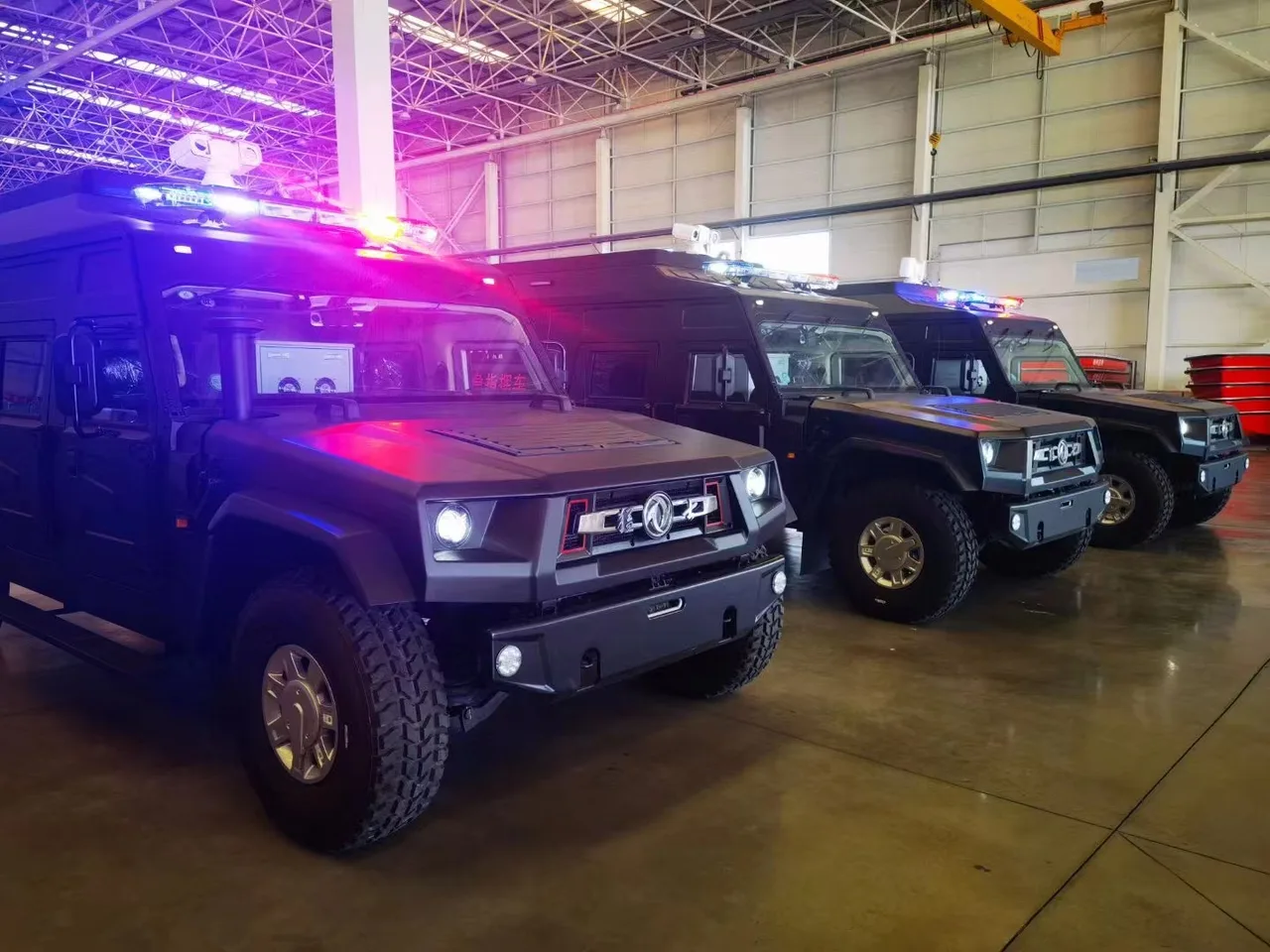

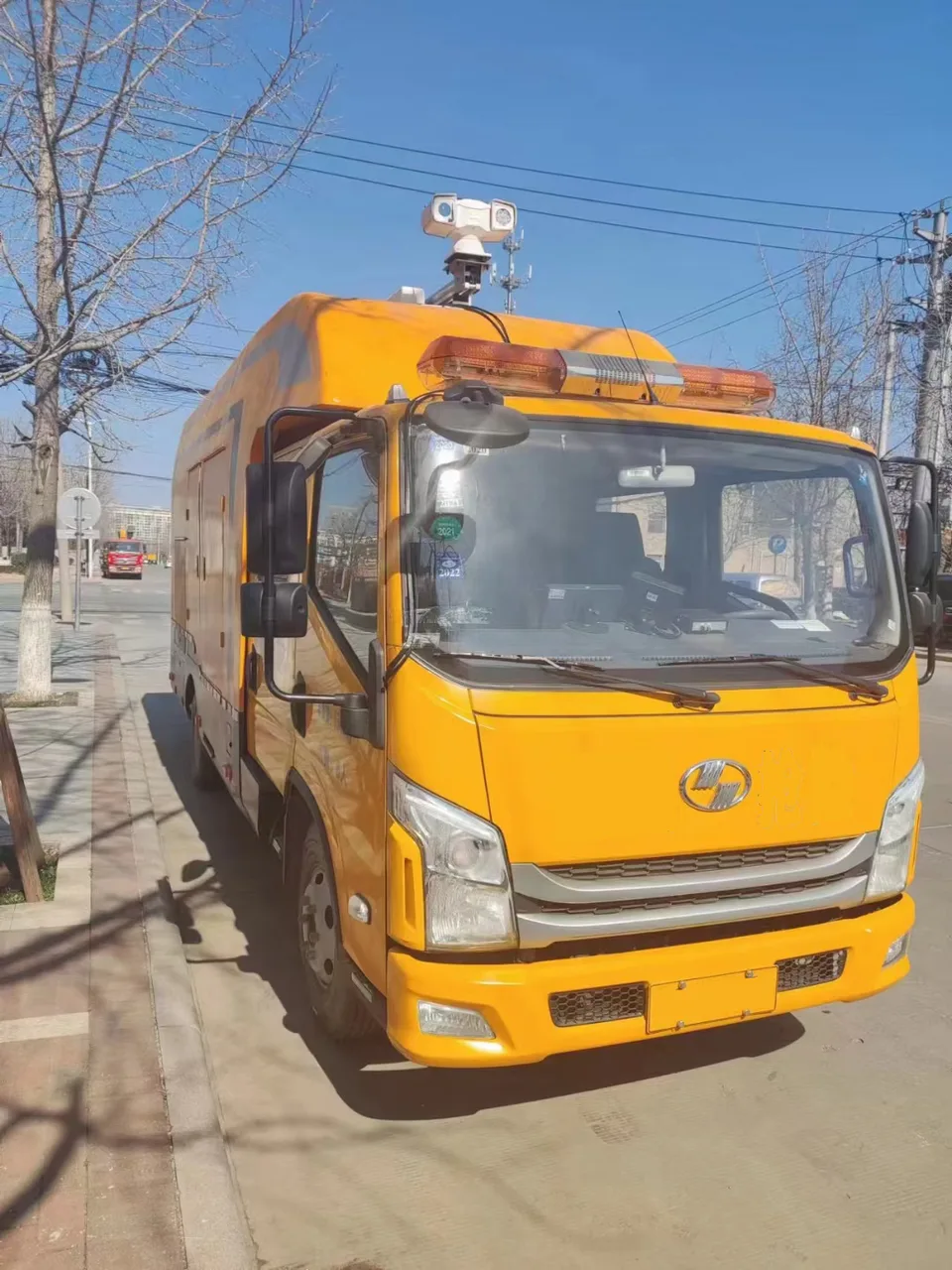

◎Suitable for monitoring in various vehicle environments;
◎Image: positive image/mirror image;
◎Appearance color: white.
Specifications:
Specification | Power supply (optional) | DC12V I in ≥4A |
Power consumption | 35W | |
weight | 7Kg | |
Installation | Flat base installation | |
Relative humidity | 10-90% | |
Operating temperature | -35℃~55℃ | |
Waterproof grade | IP66 | |
Aperture & Zoom | Automatic/Manual | |
Basic functions of PTZ | Horizontal rotation | 100°/S max |
Rotate up and down | 60°/S max | |
Preset position | Up to 256 | |
Patrol function | support | |
Line scan speed | 0.5～30°/s | |
Infrared light | Infrared emitter | High brightness LED array x 7 |
wavelength | 850nm | |
Throw distance | 100 meters | |
Power consumption | 10W | |
Infrared light control | Automatic/menu manual control | |
Infrared lamp life | More than 20,000 hours |

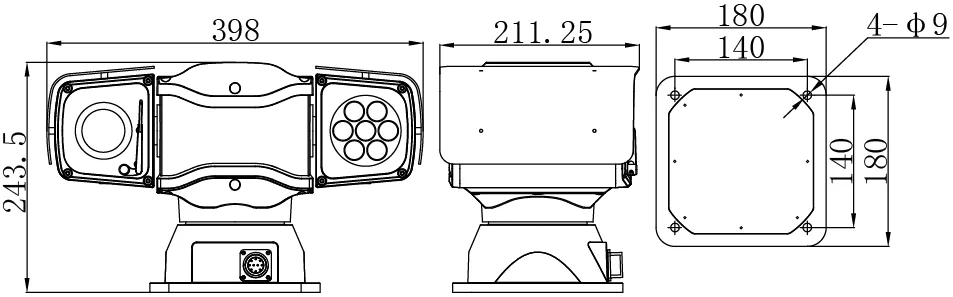

Specifications and dimensions:
