Camera
113
Model MX-AHDH-113A-AXP-005,2.8mm
Exquisite design, exquisite workmanship, precise circuit and rigorous structure, reflecting the highest technology;
Key Specs
| Resolution | 1080P |
|---|---|
| Pixel | 1920（H) x 1080(V) |
| Image sensor | 1/2.8″ SONY AHD |
| Interface | M12 aircraft carrier head (with O-ring) |
Full Specification

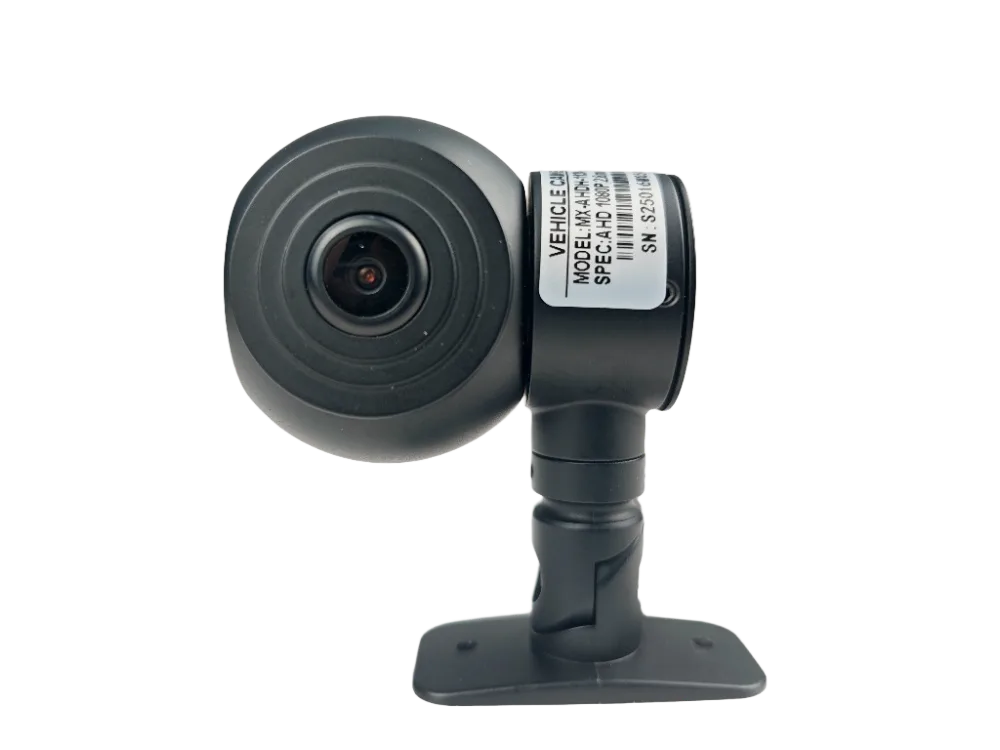

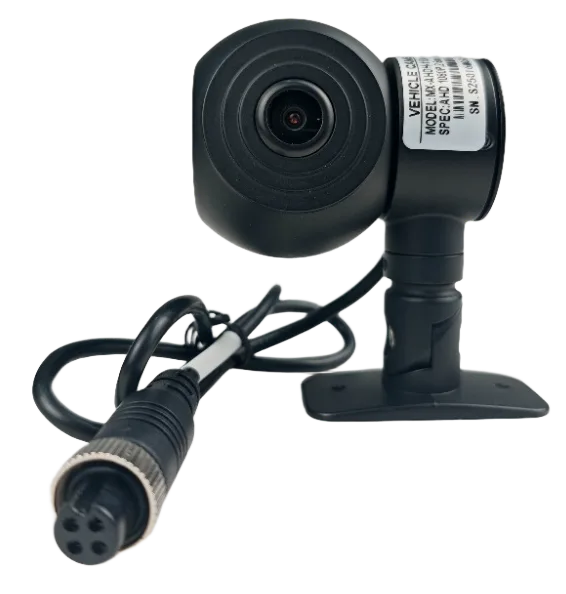

Product Model: MX-AHDH-113A-AXP-005, 2.8mm
Features:
◎ Exquisite design, exquisite workmanship, precise circuit and rigorous structure, reflecting the highest technology;
◎Specialized strong adhesive design, easy to install;
◎Rotatable lens allows you to adjust the shooting angle;
◎Meet the needs of most commercial vehicles;
◎Image: positive image/mirror image;
◎Appearance color: black;
◎Specialized aviation interface design;
Parameters and specifications:
Plan | FH8333+IMX662 |
Image sensor | 1/2.8″ SONY AHD |
Resolution | 1080P |
Signal system | PAL system |
Pixel | 1920（H) x 1080(V) |
lens | 2.8mm lens |
Camera angle | 100° |
Minimum illumination | 0.01Lux |
Backlight compensation | automatic |
Shutter speed | Automatic: 1/50~1/100,000 (seconds) |
White Balance | Auto tracking white balance |
Wide dynamic range | Greater than 120DB |
Signal-to-noise ratio | Greater than 50db |
Video Output | 1.0Vp-p,75Ω |
power supply | DC12V±10% |
Power consumption | ≤3W |
Operating temperature | -20℃ ~ +70℃ |
Infrared wavelength | / |
Number of infrared lights | / |
Infrared light irradiation distance | / |
Infrared light illumination | / |
Interface | M12 aircraft carrier head (with O-ring) |
Dimensions | 72mm*58mm*78mm |

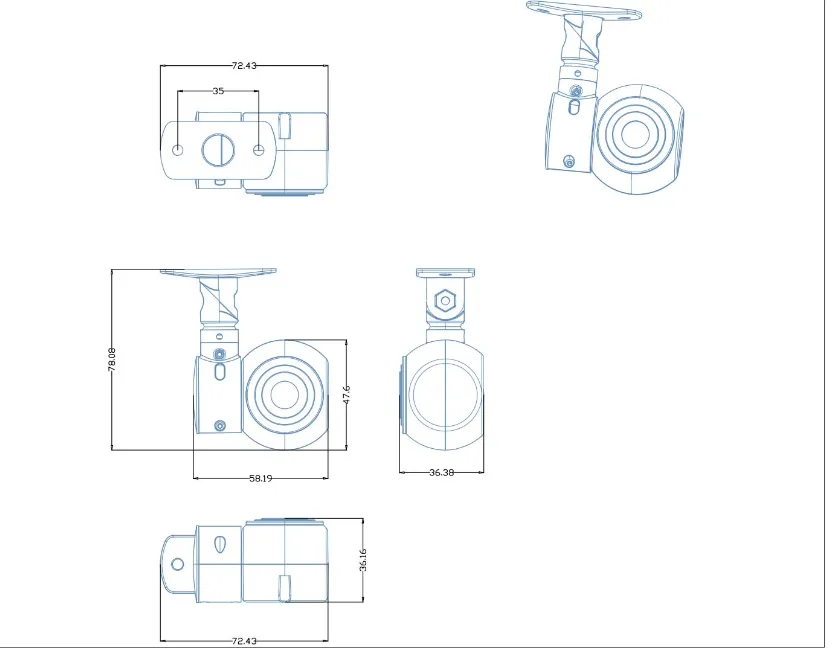

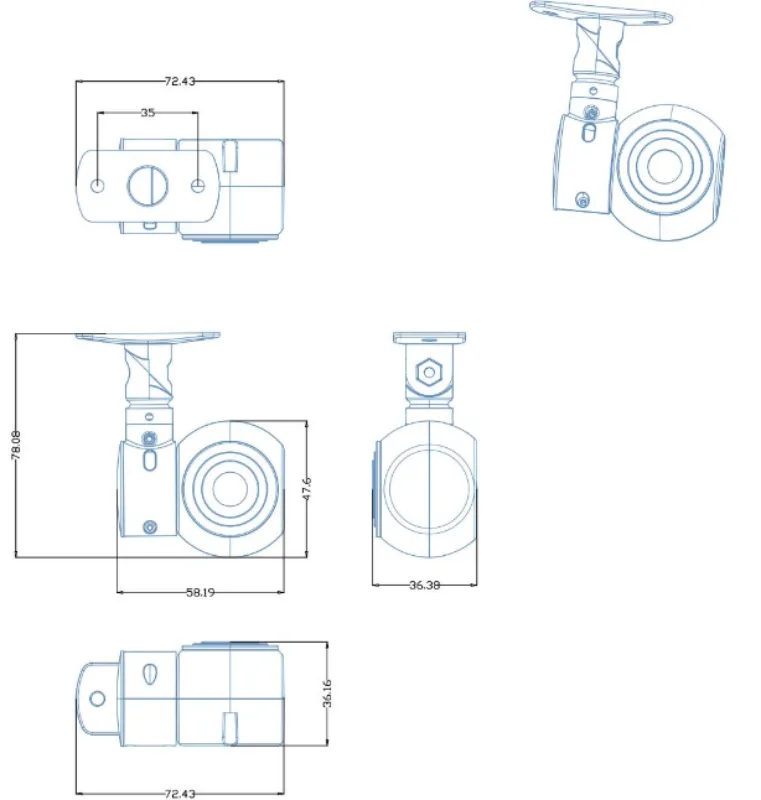

Dimensions:
