Full Specification
Product Model: MX-AHDM-267A-NNP-005H
Features:
- 1/ 2.9 " CMOS
- Resolution: 1280*720L
- Minimum illuminance: 0.01 Lux
- Automatic electronic shutter, automatic exposure, automatic white balance
- Supports 2.1 mm field of view lenses
- Night vision: Infrared night vision
- Waterproof, suitable for outdoor installation
Specifications:
Product Model | MX-AHDM-267A-NNP-005H |
Imaging devices | 1/ 2.9 " CMOS |
resolution | 720P |
Standard | P-system/25 frames |
Minimum Illumination | 0.01 lux |
Synchronization System | Internal synchronization |
Scanning System | line scan |
Signal-to-noise ratio | ≥50dB |
Electronic shutter | 1/25 to 1/25,000 of a second (automatic) |
Filter type | Color box black and white switching |
White Balance | Automatic white balance tracking |
Automatic gain | support |
3D noise reduction | support |
Backlight compensation | support |
angle | Field of view: Diagonal: 140 ° , Horizontal: 120 ° , Vertical: 68 ° |
Image mode | Colored bricks black and white |
Video output | 1.0Vp-p composite video output, 75 ohms, 4-pin aviation cable |
power supply | DC12V -24V |
Power consumption | Maximum 300mA/DC12V±5% |
Operating temperature | -30°C ~ 75°C |
Operating humidity | Humidity less than 95% (no condensation) |
Waterproof rating | IP68 |
Installation method | bracket installation |
audio | No audio |

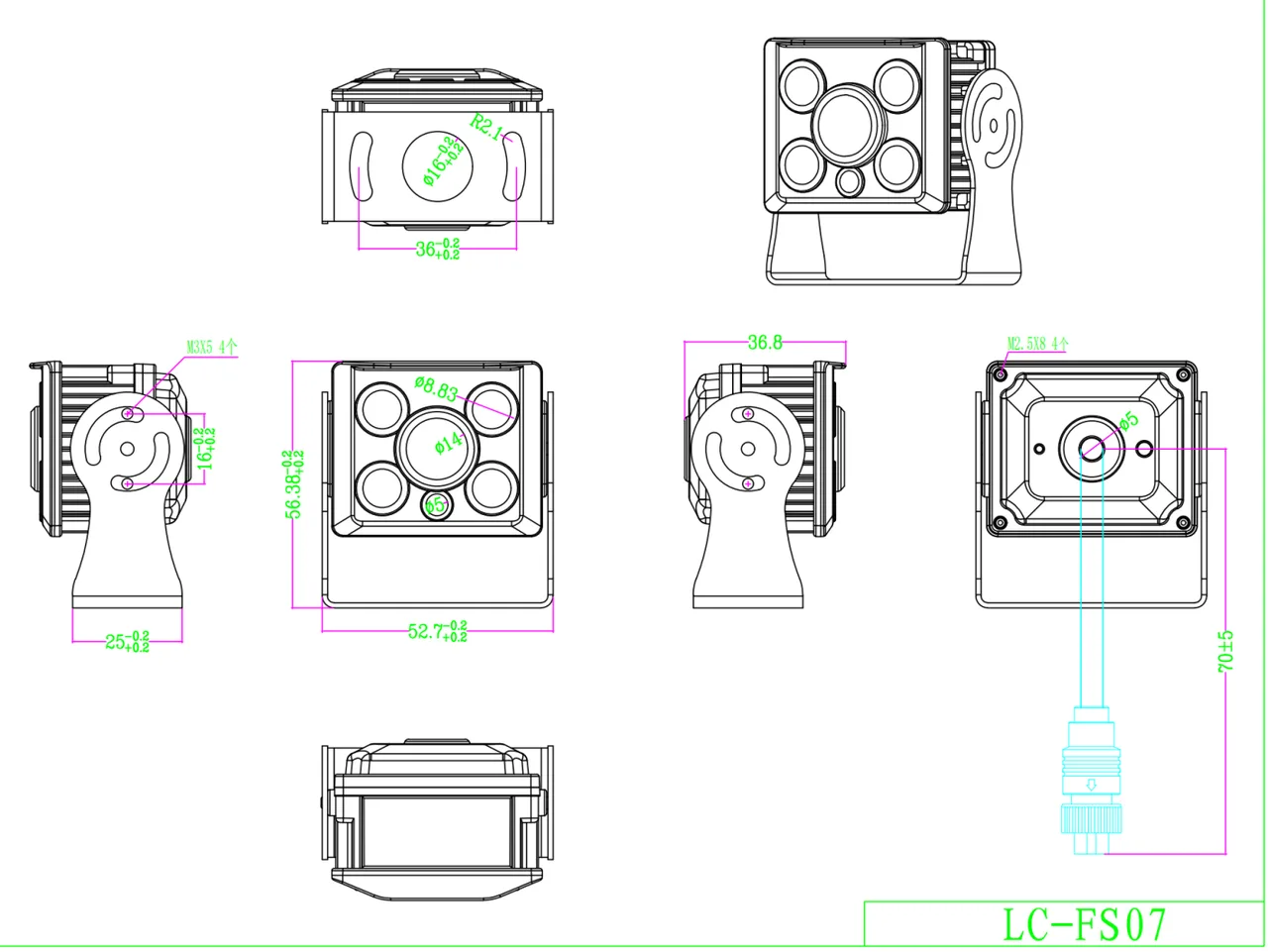

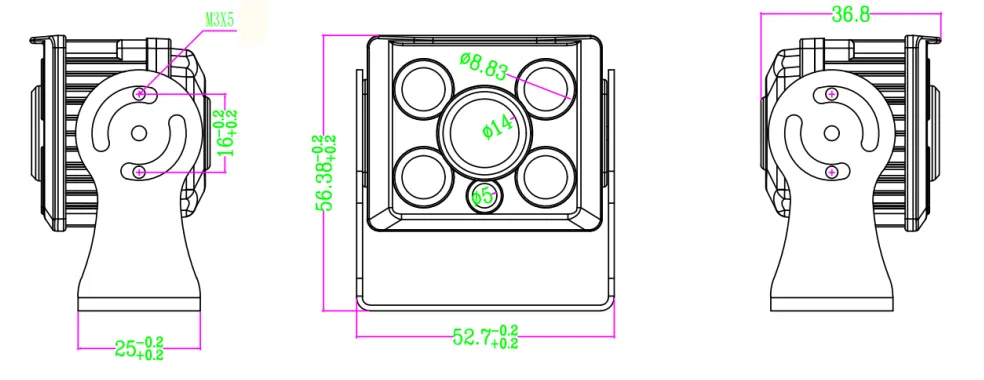

Size specifications :

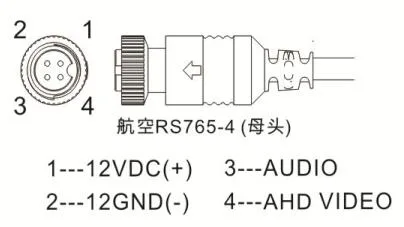

Wiring definition:
