Camera
266
Model MX-AHDH-266A-NNP-005H
1/2.9″ high-resolution CMOS sensor
Key Specs
| Resolution | 1080P |
|---|---|
| Image sensor | 1/2.9″ CMOS AHD |
| Interface | M12 aircraft carrier bow (with O-ring) |
Full Specification
Product Model: MX-AHDH-266A-NNP-005H
Features:
◎ 1/2.9″ high-resolution CMOS sensor
◎ 1080P Ultra HD Camera
◎ Supports automatic white balance
◎ Supports low-light night vision down to 0.01 Lux
◎ Horizontal angle of the lens: 165°
◎ Compact design supports better waterproofing
◎ Multiple mounting holes for quick installation
◎ Appearance color: Black;
Specifications:
Model | MX-AHDH-266A-NNP-005H |
plan | FH8536+2053 |
Image sensor | 1/2.9″ CMOS AHD |
Resolution | 1080P |
Signal System | PAL system |
Pixels | 1920 (H) x 1080 (V) |
lens | 1.58mm lens |
Horizontal | 165° |
Minimum Illumination | 0.01 Lux |
Backlight compensation | automatic |
Shutter speed | Automatic: 1/50 to 1/100,000 (seconds) |
White Balance | Automatic white balance tracking |
Wide dynamic range | none |
Signal-to-noise ratio | Greater than 55dB (AGC OFF) |
Video output | 1.0Vp-p, 75Ω |
power supply | DC12V±10% |
Power consumption | ≤3W |
Operating temperature | -20℃ ~ +70℃ |
Infrared wavelength | / |
Number of infrared lights | / |
Infrared light illumination distance | / |
Infrared light illuminance | / |
Interface | M12 aircraft carrier bow (with O-ring) |

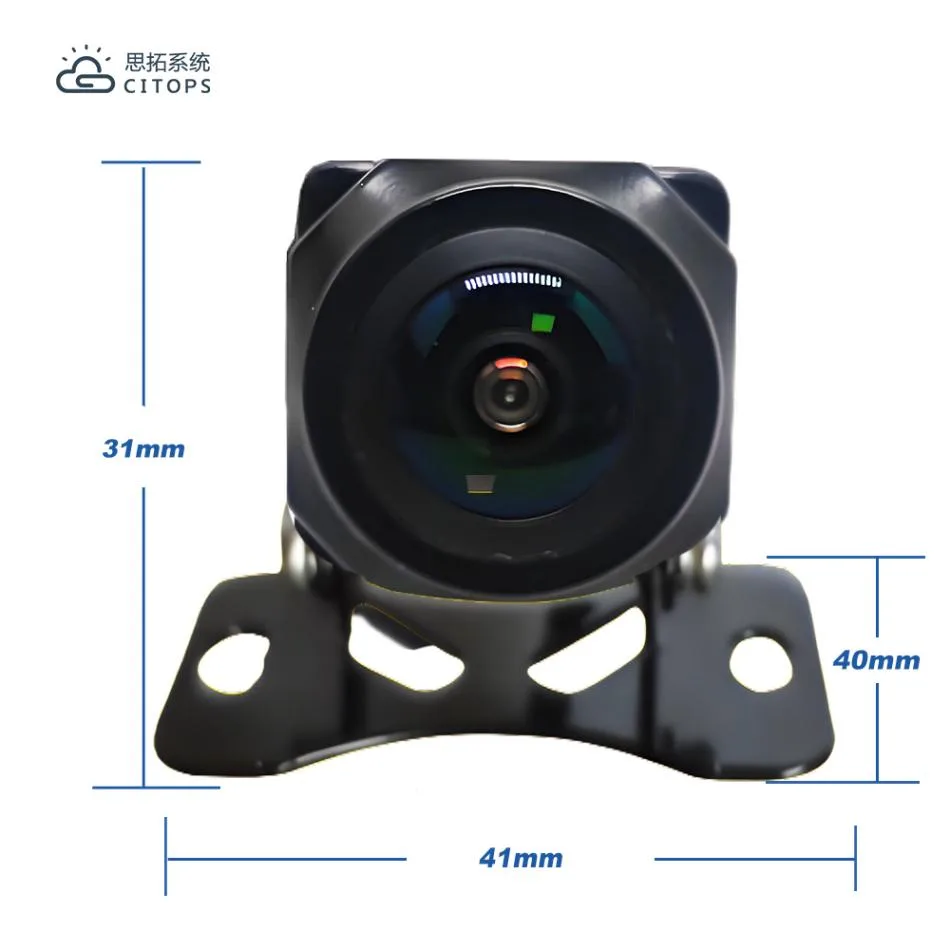

External dimensions | 41*40*31 (mm) |
Size specifications :
