Camera
260
Model MX-AHDH-260A-NXP-005H
Key Specs
| Resolution | 1080P |
|---|---|
| Pixel | 1920（H) x 1080(V) |
| Image sensor | 1/2.9″ CMOS AHD |
| Interface | Professional aviation interface |
Full Specification
Product model: MX-AHDH-260A-NXP-005H (Optional fisheye version)
Product features:
- Exquisite design, exquisite workmanship, precise circuits and rigorous structure, reflecting the highest technology;
- Wide angle adjustable bracket, which can adjust the angle freely during the installation and fixation process;
- Equipped with a small sunshade protective cover;
- Waterproof sealed aluminum cover with waterproof effect;
- Integrated structure, shockproof and anti loosening design;
- Suitable for monitoring in various vehicle environments;
- Image: Ortho/Mirror.
- Appearance color: black;
- Special aviation interface design
Specification parameters:
Model | MX-AHDH-260A-NXP-005H |
Programme | 8550+2093（fisheye 8536H+2053） |
Image sensor | 1/2.9″ CMOS AHD |
Resolution | 1080P |
Signal system | PAL/NTSC |
Pixel | 1920（H) x 1080(V) |
Horizontal angle of view | 130°/160°/180° |
Minimum illumination | 0.01Lux |
Backlight compensation | built-in |
White balance | Automatic tracking of white balance |
Signal-to-noise ratio | ＞45db (AGC OFF) |
Video output | 1.0Vp-p,75Ω |
Source | DC12V±10% |
Power consumption | ≤2W |
Working temperature | -20℃ ~ +70℃ |
Interface | Professional aviation interface |
Appearance dimensions | 56.75mm*52.7mm*37.5mm |

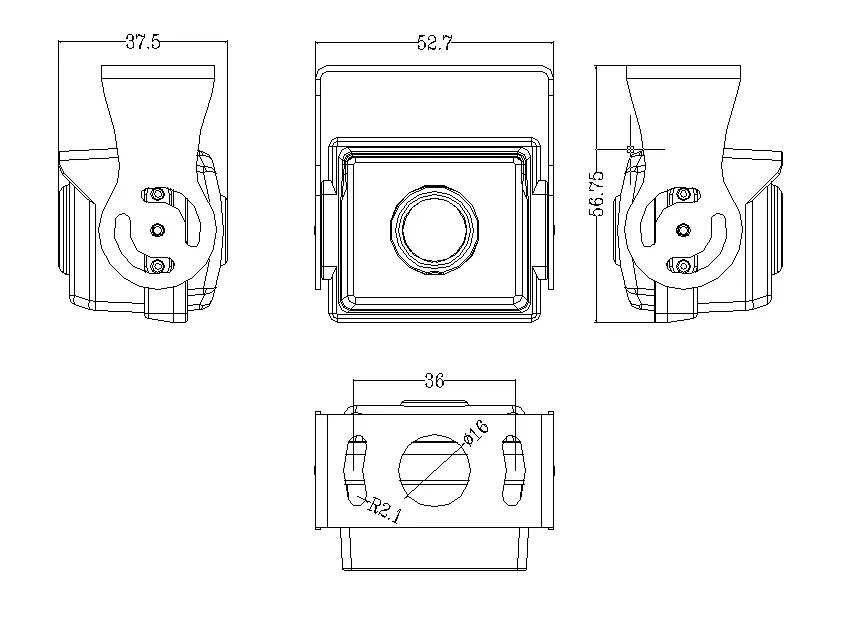

Size:
