Camera
264

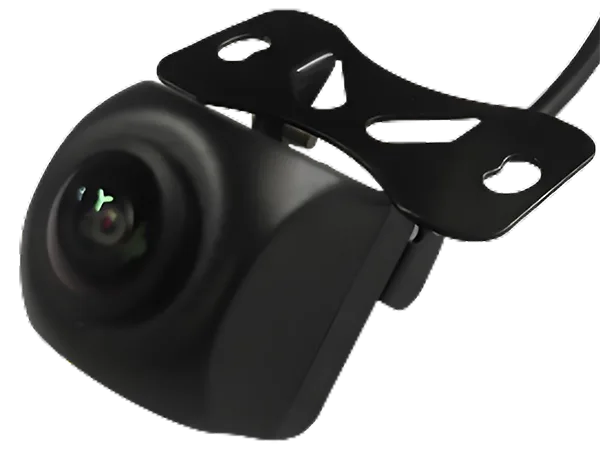

Model MX-AHDH-264A-NNP-005H
1/2.9″ high-resolution CMOS sensor
Key Specs
| Resolution | 1080P/720p |
|---|---|
| Image sensor | 1/2.9″ CMOS AHD |
| Horizontal angle | 130°/ 160 ° |
Full Specification
Product Model: MX-AHDH-264A-NNP-005H
Features:
◎ 1/2.9″ high-resolution CMOS sensor
◎ 1080P Ultra HD Camera
◎ PAL, front and back images can be freely selected
◎ Supports automatic white balance
◎ Supports low-light night vision down to 0.01 Lux
◎ No vignetting or distortion at a horizontal angle of 160°.
◎ Compact design supports better waterproofing
◎ Multiple mounting holes for quick installation
◎ Appearance color: Black;
Specifications:
Model | MX-AHDH-264A-NNP-005H |
Plan | 8536H+2053 |
Image sensor | 1/2.9″ CMOS AHD |
Resolution | 1080P/720p |
Signal System | PAL system |
Pixels | 1920(H)*1080(V)/1280(H)*720(V) |
Horizontal angle | |
Minimum Illumination | 0.01 Lux |
Backlight compensation | built-in |
Shutter speed | 1/53 to 1/100,000 (seconds) |
White Balance | Automatic white balance tracking |
Signal-to-noise ratio | Greater than 50dB (AGC OFF) |
Video output | 1.0Vp-p, 75Ω |
power supply | DC12V ± 10% |
Power consumption | ≤1W |
Operating temperature | -20 ℃ ~ +70℃ |
Video out interface | Professional Aviation Interface |
External dimensions | 40mm*23.5mm*23.5mm |

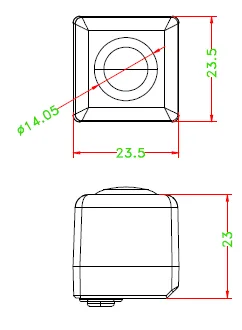

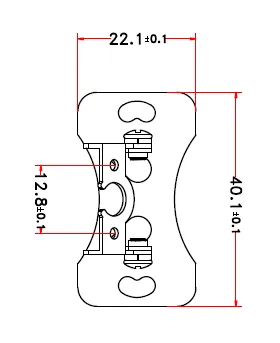

Size specifications :
