Camera
115
Model MX-AHDH-115B-NNP-005,2.1mm
Exquisite design, fine workmanship, precise circuitry and rigorous structure, reflecting the highest level of technology;
Key Specs
| Image sensor | 1/2.9″ CMOS AHD |
|---|---|
| Interface | BMW Connector |
Full Specification
Product Model: MX-AHDH-115B-NNP-005, 2.1mm
Features:
◎Exquisite design, fine workmanship, precise circuitry and rigorous structure, reflecting the highest level of technology;
◎Special strong adhesive design for easy installation;
◎The rotatable lens allows for adjustment of the shooting angle;
◎ Meets the needs of most commercial vehicles;
◎Image: Orthogonal/Mirror Image;
◎Appearance color: Black;
Specifications:
Plan | 8536H+2053 |
Image sensor | 1/2.9″ CMOS AHD |
Image resolution | 1080P |
Signal system | PAL |
Pixels | 1920 (H) x 1080 (V) |
lens | 2.1mm |
Maximum angle | 130° |
Minimum Illumination | 0Lux |
Backlight compensation | built-in |
Shutter speed | automatic |
White alance | Automatic white balance tracking |
Wide dynamic range | none |
Signal-to-noise ratio | Greater than 50dB (AGC OFF) |
Video output | 1.0Vp-p, 75Ω |
Audio | Optional |
Power supply | DC12V±10% |
Power consumption | Infrared light on/off ≤3W |
Operating temperature | -20℃ ~ +70℃ |
Infrared wavelength | 850 |
Number of infrared lights | 5 |
Infrared light illumination distance | 0-3 meters |
Infrared light illuminance | 0LUX |
Interface | BMW Connector |

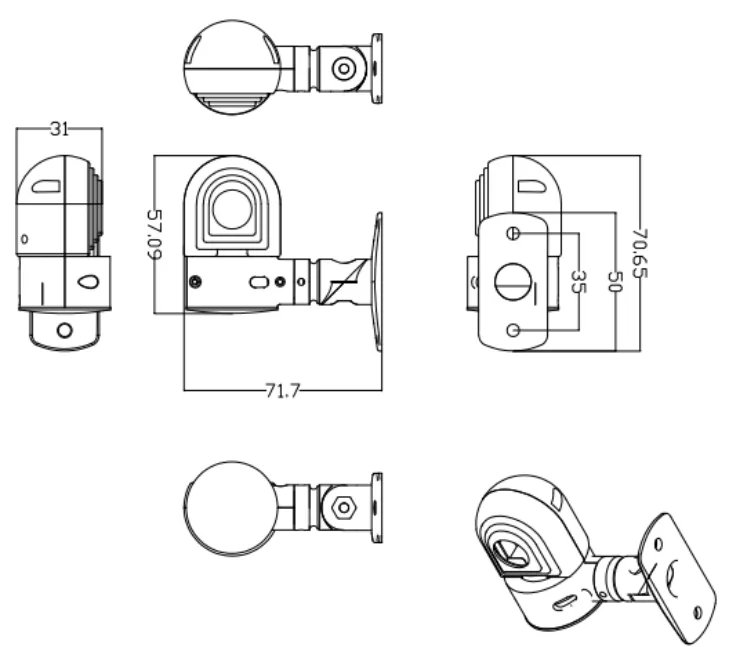

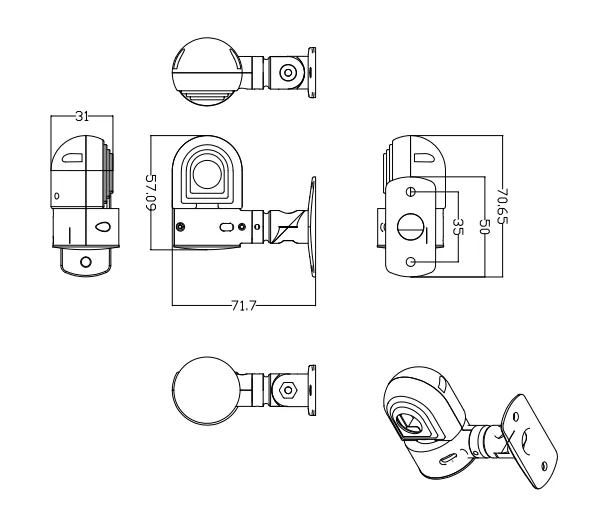

Size specifications:
