Camera
301
Model MX-AHDH-301A-NNP-005H
Key Specs
| Resolution | 1080P/720P |
|---|---|
| Pixel | PAL/NTSC：1920（H) x 1080(V)/1280（H) x 720(V) |
| Image sensor | 1/2.9” Aptina 0130 with Nextchip2431 |
| Lens | Standard 2.8mm/3.6mm lens |
| Power | DC12V±10% |
Full Specification
Model: MX-AHDH-301A-NNP-005H
Product features:
- Low power consumption, easy dissipate heat;
- Good color reduction and picture quality;
- Mini conch construction, Exquisite, beautiful and fashion;
- High hardness, Anti-collision;
- Built in imported 12 pcs Φ5 IR LED lights, 5m shooting distance;
- Infrared function auto on when light lower than 10Lux;
- Use imported lens plate, good moisture-proofing;
- Color: gray;
- Appropriative aviation connector design;
Specifications:
Model | MX-AHDH-301A-NNP-005H |
Image sensor | 1/2.9” Aptina 0130 with Nextchip2431 |
Resolution | 1080P/720P |
Signal system | PAL/NTSC |
Pixel | PAL/NTSC：1920（H) x 1080(V)/1280（H) x 720(V) |
Lens | Standard 2.8mm/3.6mm lens |
Horizontal angle of view | 105°/80° |
Minimal illumination | 0Lux |
Backlight compensation | Built-in |
Shutter speed | 1/53~1/100,000 sec |
White balance | Automatic tracking |
Noise-signal ratio | ＞50db (AGC OFF) |
Video output | 1.0Vp-p,75Ω |
Power | DC12V±10% |
Consumption | ≤3W |
working temperature | -20℃~ +70℃ |
Infrared wavelength | 850nm |
Infrared lamp quantity | Φ5 12LED light |
Infrared lamp Irradiation distance | 5M |
Infrared lamp turn on brightness | ＞3Lux |
Connector | VIDEO OUT (Appropriative aviation connector) |
Size | Φ68.8mm*59.2mm |

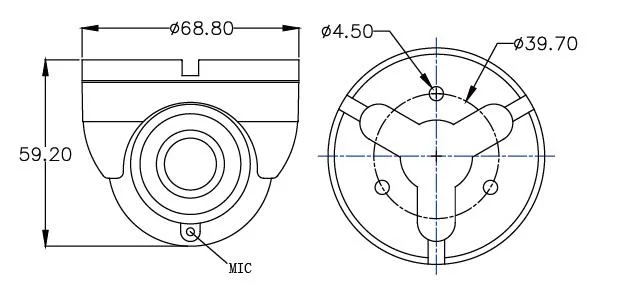

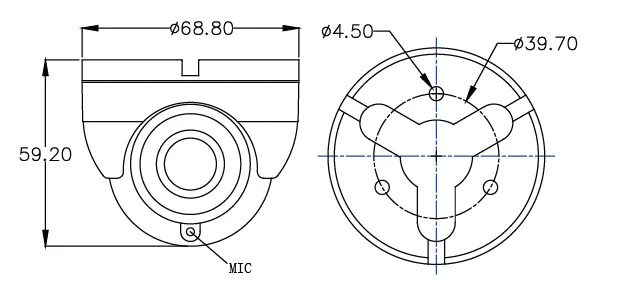

Size：
