Camera
B2

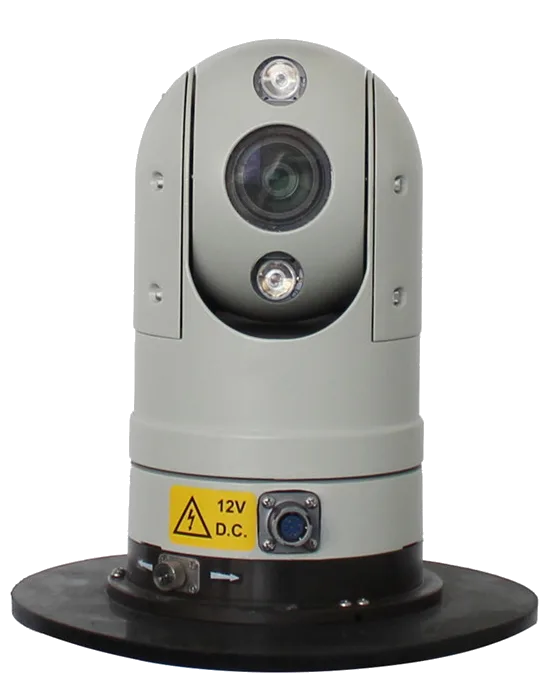

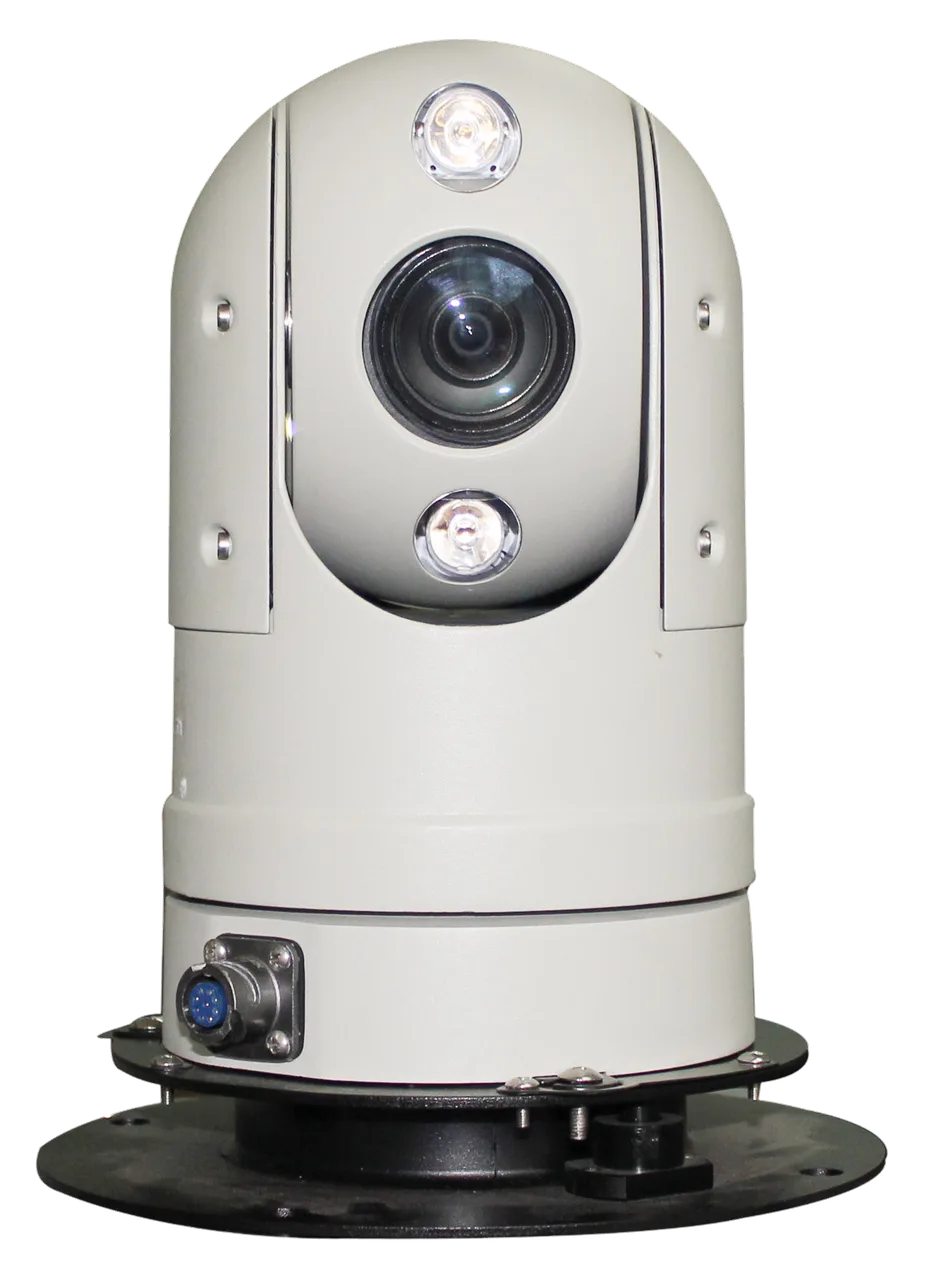

Model MX-AHD-IR-B2
Smart IR PTZ camera driven by a 0.9° precision motor for smooth, jitter-free movement; 360° continuous pan rotation with 256 presets and Osram high-intensity IR chip. Mounts upright or inverted, with magnetic, sucker and vibration-proof bases for portable outdoor vehicle monitoring.
Key Specs
| Pan range | 360° continuous rotation |
|---|---|
| Tilt range | 90° (180° automatic reverse) |
| Preset points | 256 |
| Protection level | IP66 |
| Power | DC11V-DC18V |
| Working temperature | -35°~+55° |
| Weight | 2.5kg |
Full Specification
Model：SMART IR PTZ CAMERA
Features :
- Real-time Monitoring and Remote Control: Allows remote control of camera functions like pan, tilt, and zoom, providing dynamic tracking capabilities via the MDVR's wireless network.
- Comprehensive Coverage: Provides 360-degree surveillance of vehicle interiors and exteriors, covering blind spots and enhancing security.
- Event Recording and Analysis: Captures high-resolution video for post-event analysis, aiding in incident investigation.
- Automated Patrol: Supports preset patrol routes, enabling automated surveillance of specific areas without manual intervention.
- Remote Alarm Integration: Works with sensors to trigger alarms and allows immediate remote viewing for rapid response.
- Robust Data Management: Offers reliable long-term storage and management of high-quality video data.
- Durability: Designed to operate in harsh environments, ensuring stable performance under extreme conditions.
- High scalability: The PTZ camera and MDVR system can add addition cameras and sensors as needed, with expansion interfaces allowing easy future upgrades.
This combination is highly effective in applications such as public transportation, logistics, and law enforcement vehicles, enhancing security, surveillance efficiency, and emergency response capabilities.
Ball machine performance:
Pan Preset Speed | 300 ° /S |
Tilt Preset Speed | 120 ° /S |
Pan Manual Control Speed | 0 ° -220 ° /S |
Tilt Manual Control Speed | 0 ° -90 ° /S |
Pan Range | 360 ° continuous rotation |
Tilt Range | 90 ° ( 180 ° automatic reverse) |
Preset Point | 256 |
Relative Humidity | 90% |
Ingress Protection Rating | IP66 |
Operating Temperature | -35 ° -+55 ° |
Power Input | DC11V-DC18V |
Weight | 2.5kg |

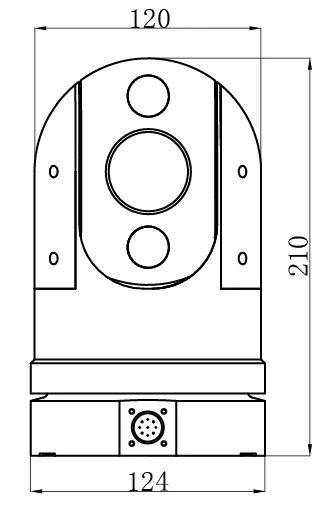

Size:
