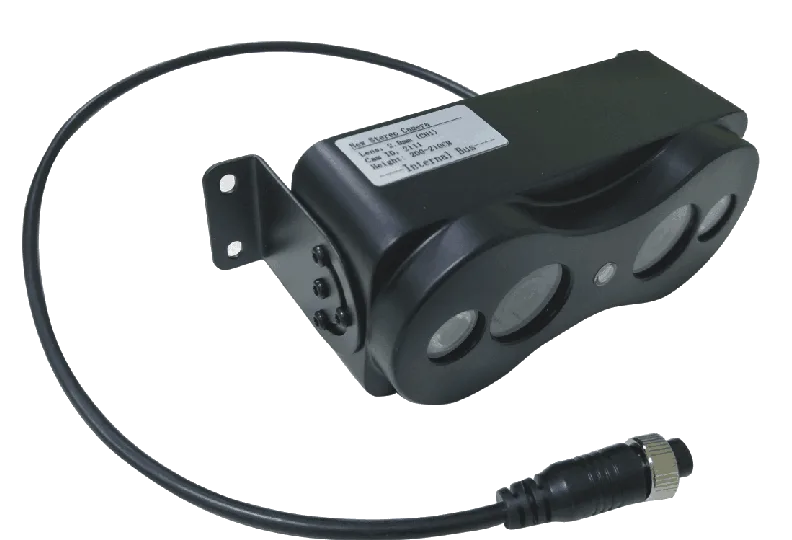

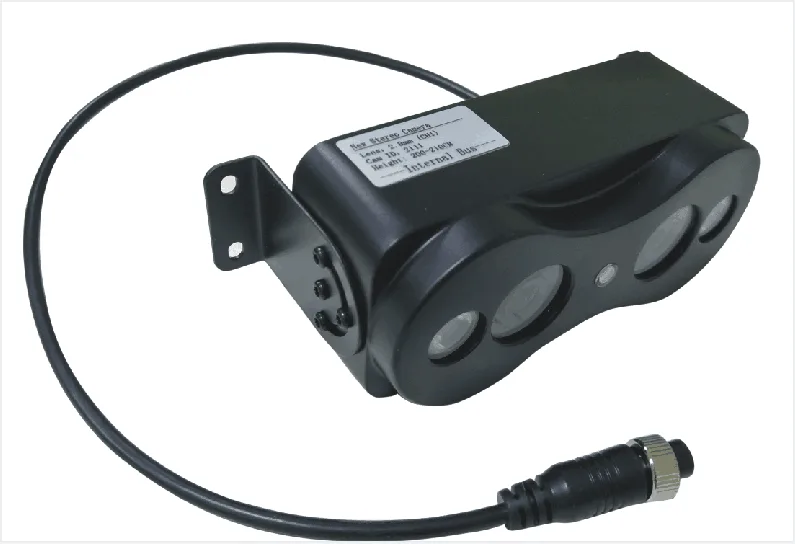

Camera
D30
Model MX-AHDL-D30-NNP-005H
Dual-lens passenger counting camera with built-in dual-camera modeling and detection, meeting the needs of most passenger vehicles; positive/mirror image, specialized aviation connector, 5 cm lens spacing (12 cm optional for wider detection ranges).
Key Specs
| Image sensor | 1/3" CMOS |
|---|---|
| Horizontal resolution | 700 TV Lines |
| Lens | 960×576 pixels, 2.8mm (2.1~8mm optional) |
| Field of view | 105° horizontal, 60° vertical (2.8mm) |
| Lens spacing | 5cm (12cm optional) |
| Interface | Composite video output, aviation connector |
| Power | DC12V, ≤2W |
| Working temperature | -20~+70℃ |
Full Specification
Product model: MX-AHDL-D30-NNP-005H
Features:
◎ Exquisite design, exquisite workmanship, precise circuit and rigorous structure, reflecting the highest technology;
◎ Equipped with dual camera modeling and detection function ;
◎Meet the needs of most passenger vehicles;
◎Image: positive image/mirror image;
◎Appearance color: black;
◎Specialized aviation interface design;
Parameters and specifications:
model | MX-AHDL-D30-NNP-005H |
Image Sensor | 1/3 CMOS |
Video format | PAL (PAL or NTSC optional) |
Horizontal resolution | 700TVLines |
Image Output | Synchronous sampling output |
Lens spacing | 5cm (12cm is selected according to the detection range) |
Lens parameters | 960×576 pixels, 2.8mm(2.1mm/2.8mm/3.6mm/4mm/6mm/8mm optional) |
White Balance | Automatic white balance |
shutter | 1/50-1/80000 (seconds) 1/60-1/80000 (seconds) |
Frame rate | 25 fps |
Video output interface | Composite video output, aviation head interface |
Gain | Automatic Gain Control |
Signal-to-Noise Ratio | ＞48db |
power supply | 12V voltage input |
power | ≤2W |
size | 165×59.65×68mm (L×W×H) |
weight | About 0.35KG |
Operating temperature range | -20～+70℃ |
Relative humidity | 10%～90% non-condensing |
Heat dissipation | No active heat dissipation, passive structural heat dissipation |
Field of view | 2.8MM Horizontal: 105° Vertical: 60° |

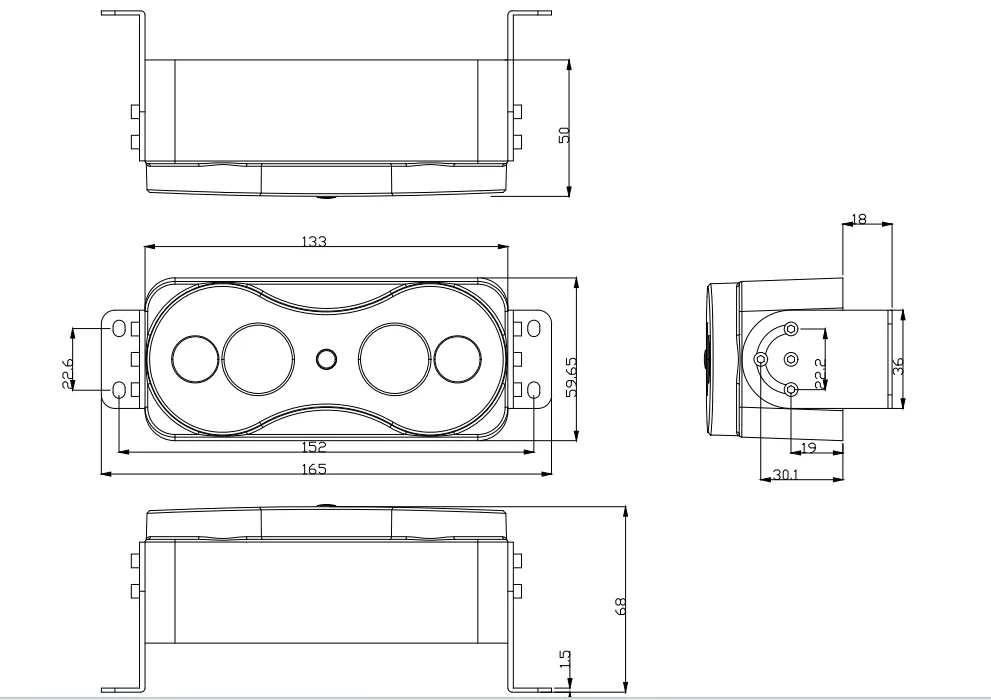

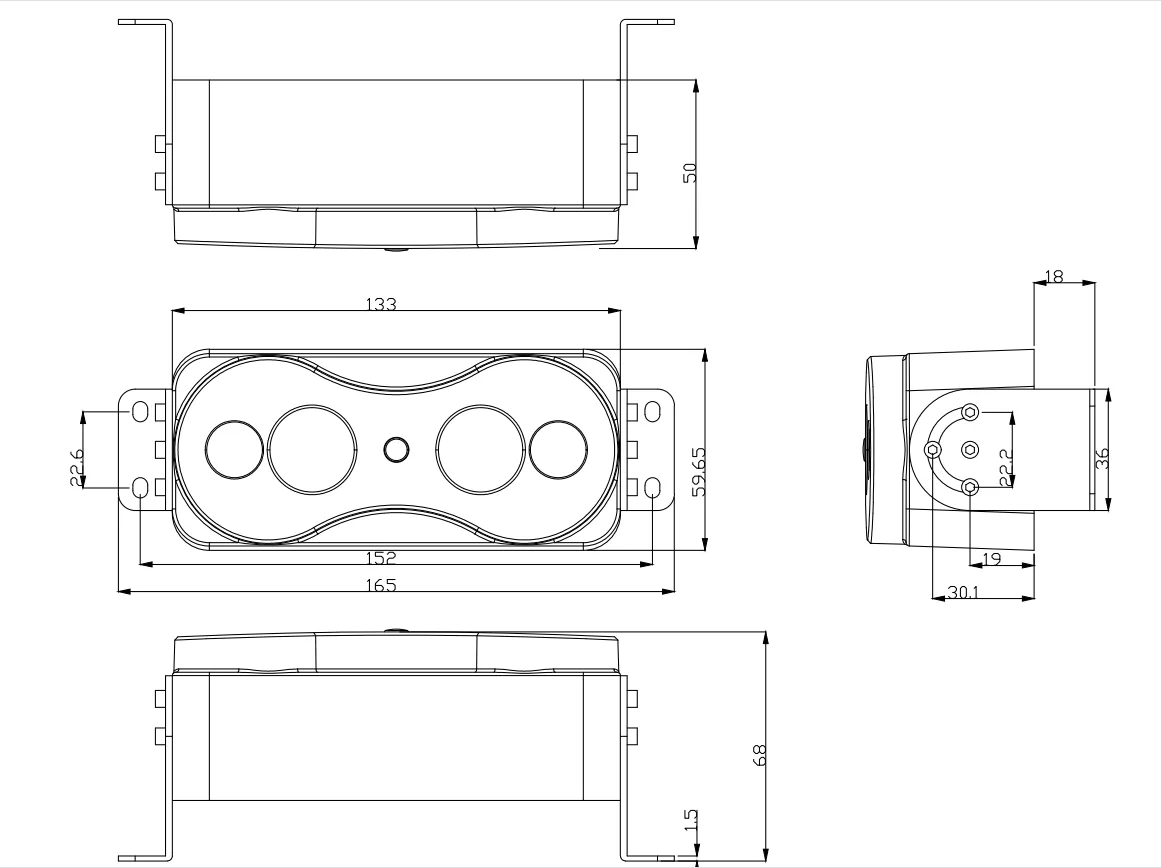

Dimensions:
