MDVR
Emergency PTZ

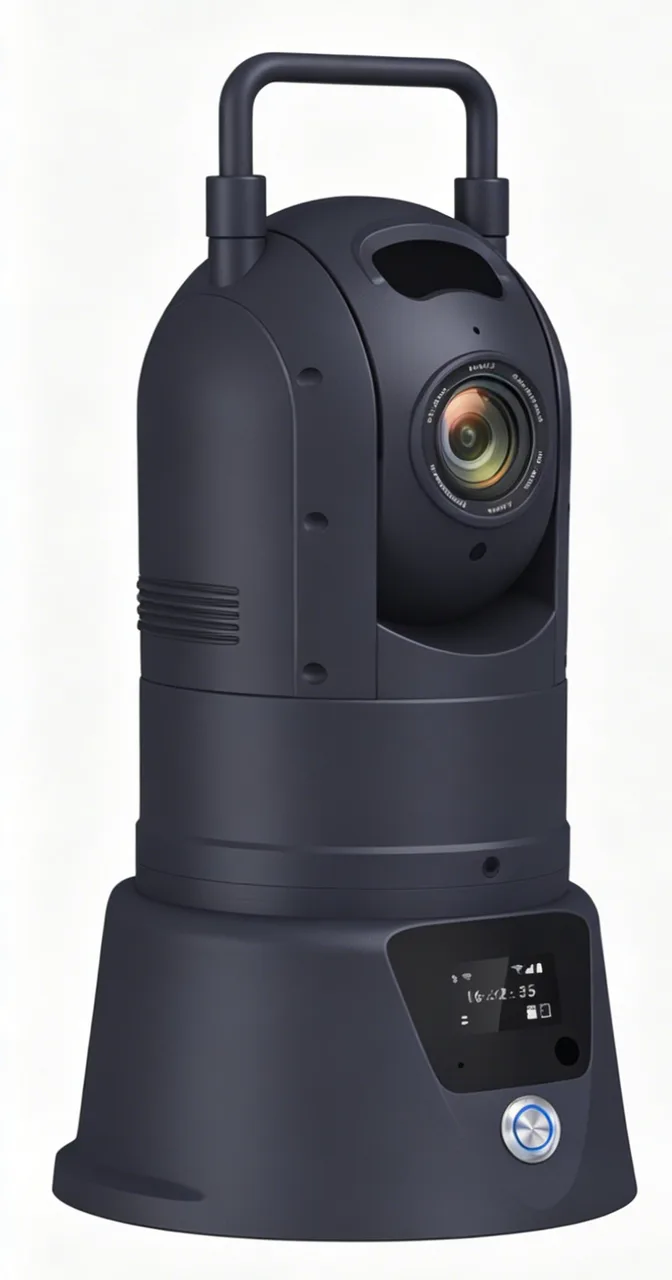

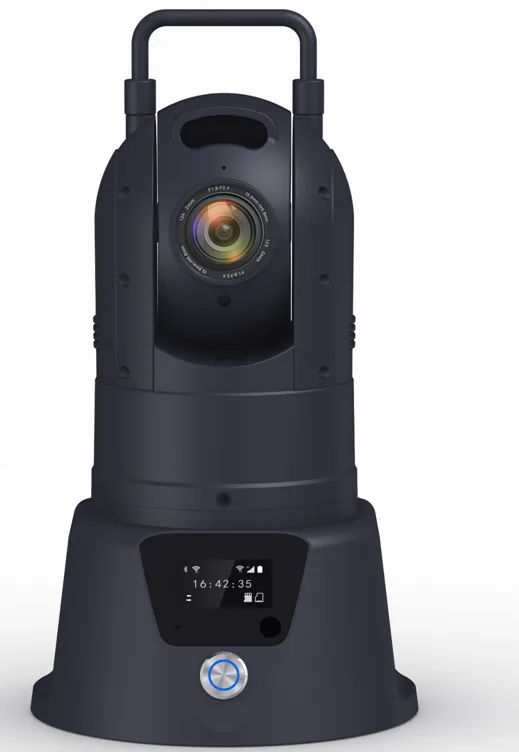

M92Sv
The M9 2 Sv lightweight mini surveillance PTZ camera is a comprehensive, portable, and easy-to-install wireless video application product. I…
Key Specs
| Video input | 1-channel IPC input |
|---|---|
| Video encoding | H.264/H.265 |
| WIFI | WIFI 6 (backward compatible with 5.8/2.4G ) Su… |
Full Specification
Product Introduction
The M9 2 Sv lightweight mini surveillance PTZ camera is a comprehensive, portable, and easy-to-install wireless video application product. It features high integration, a large-capacity lithium battery, waterproofing and shockproof design , and a miniature size, weighing only 2.5 kg , making it easily portable and meeting the special requirements of temporary rapid deployment and remote dispatching.
Product Advantages
- Lightweight design
- IP6 protection rating
- Voice intercom function
- Built-in high-capacity battery for long-lasting operation
- 360 ° omnidirectional PTZ control
- Supports 4G and WIFI
- Supports wired network ports
- Supports NARI encryption
Core parameters
project | Parameter Description | |
Video parameters | Video input | 1-channel IPC input |
Optical zoom | Maximum 10 times | |
Night vision distance | 30 meters | |
Video encoding | H.264/H.265 | |
Video pixels | The default maximum is 2K ( optional ) . | |
Support Agreement | GB2818 1. Private Protocol | |
Audio parameters | Audio input | Built-in microphone |
Audio encoding | G.711A, G.711U, PCM | |
Audio output | Built-in speaker | |
Storage method | TF card ( standard version) | 1 sheet, maximum 1TB |
Dual SIM (NARI version) | Enabling the NARI encryption function allows for the addition of one more TF card . | |
Positioning method | BeiDou/GPS | Supports mixed positioning |
4G/5G ( Standard Version) | One 4G/5G SIM card (compatible with all networks ) | |
Optional 4G card (NARI version) | NARI Encrypted Network: Supports one 4G SIM card compatible with all network types (optional) | |
WIFI | WIFI 6 (backward compatible with 5.8/2.4G ) Supports STA/AP modes | |
Wired network port | Route 1 | |
Call the police | I/O | One input/one output (selectable, optional) |
Gimbal | Horizontal range | 360° continuous rotation |
Horizontal speed | 120°/s | |
Vertical range | -15°-90° | |
Vertical velocity | 60°/s | |
Preset point | 200 | |
power supply | Built-in battery | 11.1V 10000mAh Lithium Battery Pack |
Working hours | Daytime ≈ 20 hours/Nighttime ≈ 12 hours | |
Power Management | switch button | |
Charging mode | Desktop adapter (4A ) , M12 aviation connector (7 pins) | |
Physical Specifications | size | 150mm ( W ) * 250.8mm ( H ) * 99mm ( D ) |
bracket height | Maximum height including bracket : 1700mm | |
weight | NW: 2.5KG, GW: 8KG (fluctuation within 5%) | |
Work environment | Operating temperature | -25℃ to +60℃ (in well-ventilated environments) |
Operating humidity | 10%–95% (non-condensing ) | |
other | Installation mode | Comes with a built-in bracket/base magnetic attachment. |
Protection level | IP6 6 | |
Movement parameters
The movement parameters vary depending on the specific model of the equipment. If needed, please inform our company of your actual technical requirements for assistance.

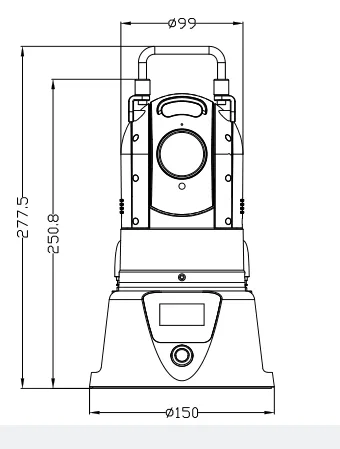

Dimensions
