M71HV
The M71Hv portable video transmission system is a highly portable and extensible product developed for drone monitoring, capturing, command…
Key Specs
| Video Encoding | H.264/H.265 |
|---|---|
| TF card | 1 sheet, maximum 1T |
| WIFI | WiFi Client connection / WiFi AP hotspot |
Full Specification
Product Introduction
The M71Hv portable video transmission system is a highly portable and extensible product developed for drone monitoring, capturing, command, and HDMI-based ultra-high-definition video transmission. The product features an integrated industrial design, incorporating hardware audio-video encoding, 5G/4G networks, GPS & BeiDou positioning, data storage, and lithium battery modules. It can connect to drones, robots, and DV cameras via an HDMI interface, enabling the management end to remotely access ultra-clear real-time video from the operation site.
Product Advantages
- IP65 protection level, suitable for various complex environments
- Video coding H.265, H.264 optional
- Support 5G, 4G, WIFI, GPS function modules
- Support a MicroSD (TF) card storage
- Built-in lithium battery, continuous work for 8 hours
- Support two-way intercom and cluster intercom;
- Comes with an anti-glare status display
- Comes with USB, HDMI and other interfaces
- High scalability
Core Parameters
project | Parameter Description | |
Audio and video input | AHD Input | 1 |
HDMI input | 1 | |
Audio Input | 1 (Bluetooth) | |
Wired MIC | support | |
Audio Output | Voice Output | 1 (Bluetooth) |
Wired headphones | support | |
Audio and video parameter encoding | Video Encoding | H.264/H.265 |
Video resolution | 1080P/720P | |
Audio Coding | G711A , G711U , AAC | |
Storage Space | TF card | 1 sheet, maximum 1T |
Wireless network | 5G/4G Wireless | 2 SIM cards ( With built-in 5G or 4G card access port , supports 1.4G private network) |
WIFI | WiFi Client connection / WiFi AP hotspot | |
Positioning method | BeiDou /GPS | Support, mixed positioning possible |
power supply | Battery capacity | 7.4v 6000mAh lithium battery pack |
Power Management | Key switch , automatic screen saver | |
Type-C charging | Support (current >2A ) | |
Magnetic charging | support | |
Screen | OLED screen | 1.54 inches |
show | Positioning, network, power, time | |
button | SOS button | 1 |
interface | External AHD | 1 ( 4- core M6 aviation connector ) |
TYPE-C | Charging / network port | |
Mini HDMI | 1 | |
Physical specifications | size | 149mm ( L ) *98.1mm ( W ) *42.6mm ( H ) (without antenna, back clip) |
weight | NW 0.74 kg ( up or down 5%) | |
Work Environment | Operating temperature | -20 ～ +6 0 ℃ |
Operating humidity | 8% ~ 90% (no condensation) | |
other | Remote Control | PC , APP |
Support Agreement | GB28181 , private protocol | |

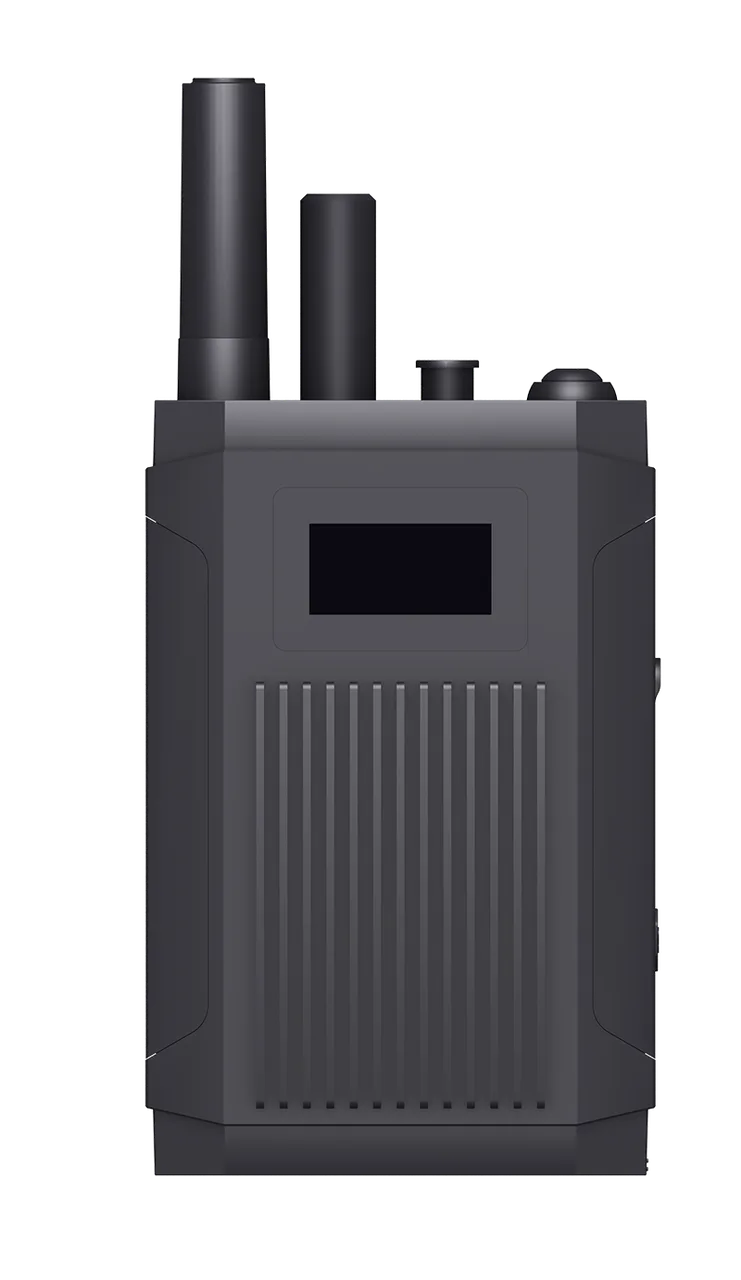

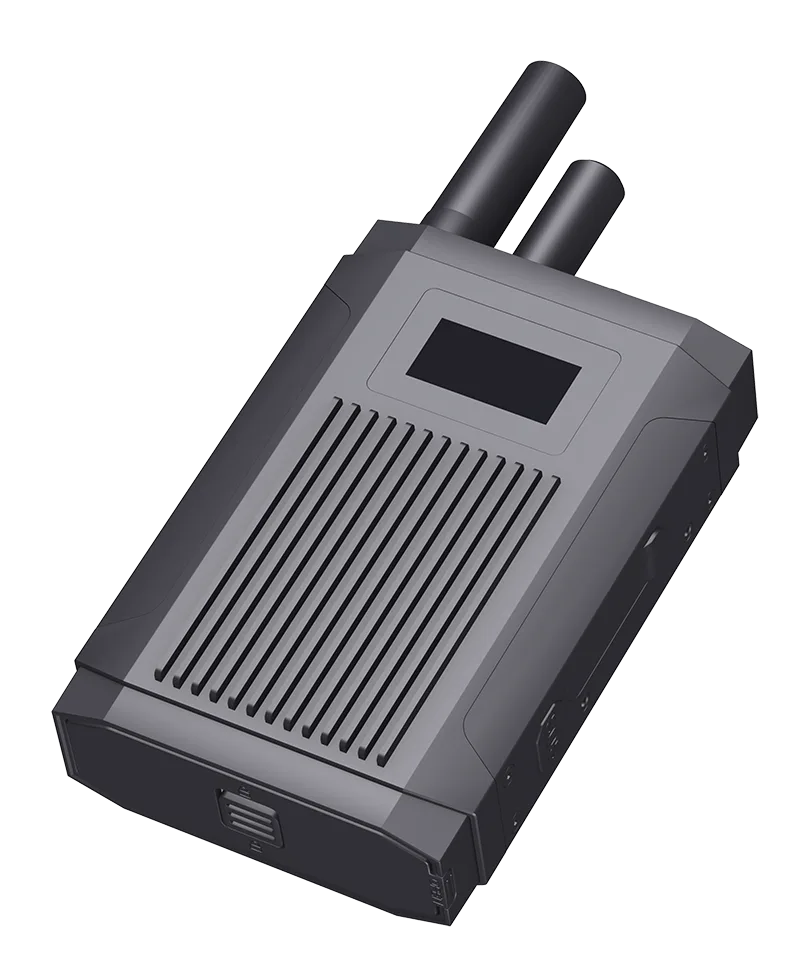

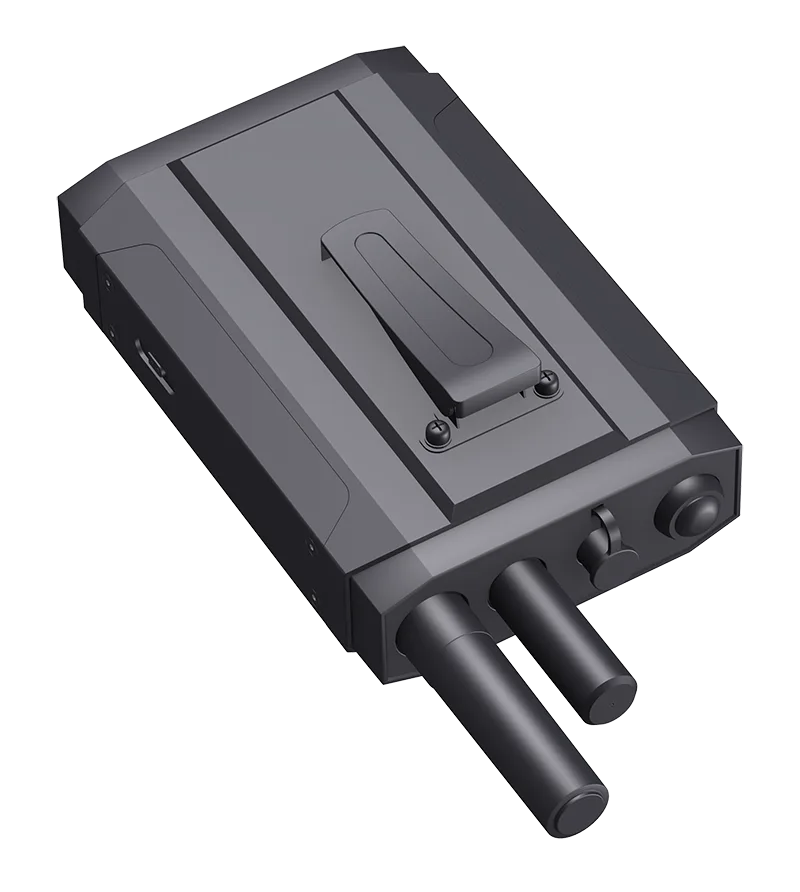

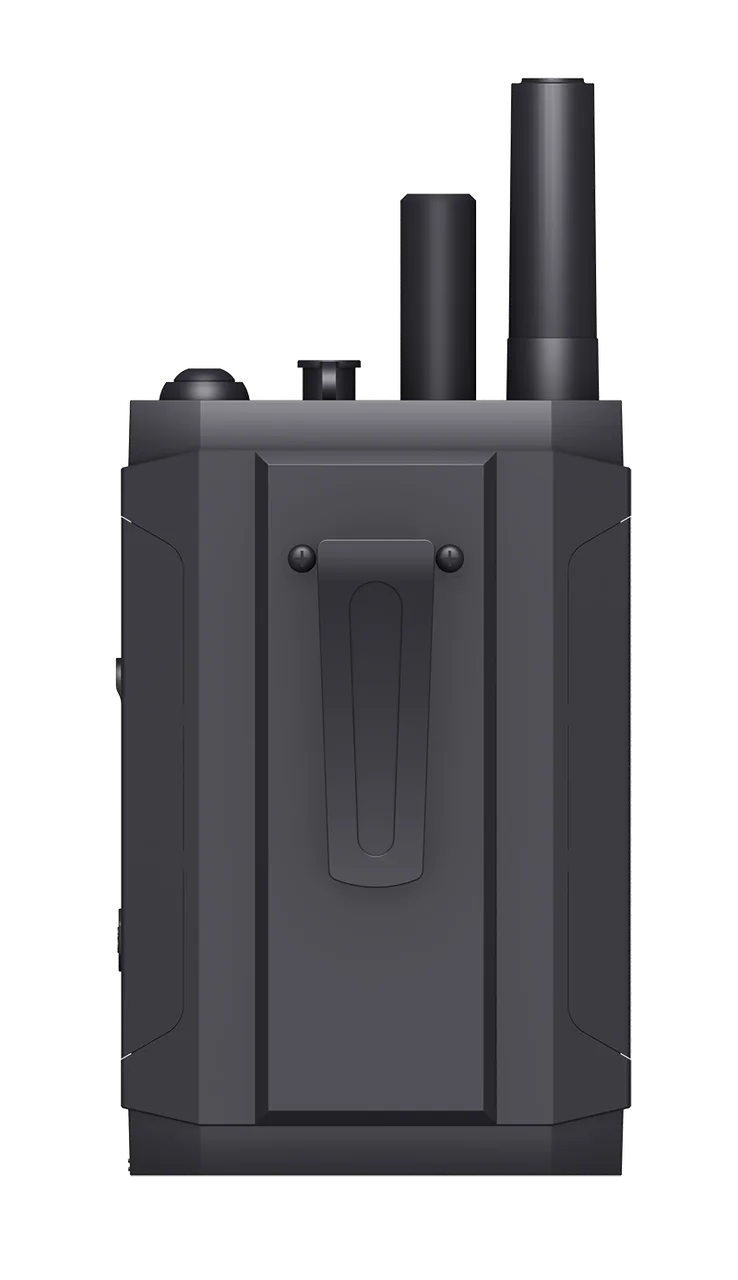

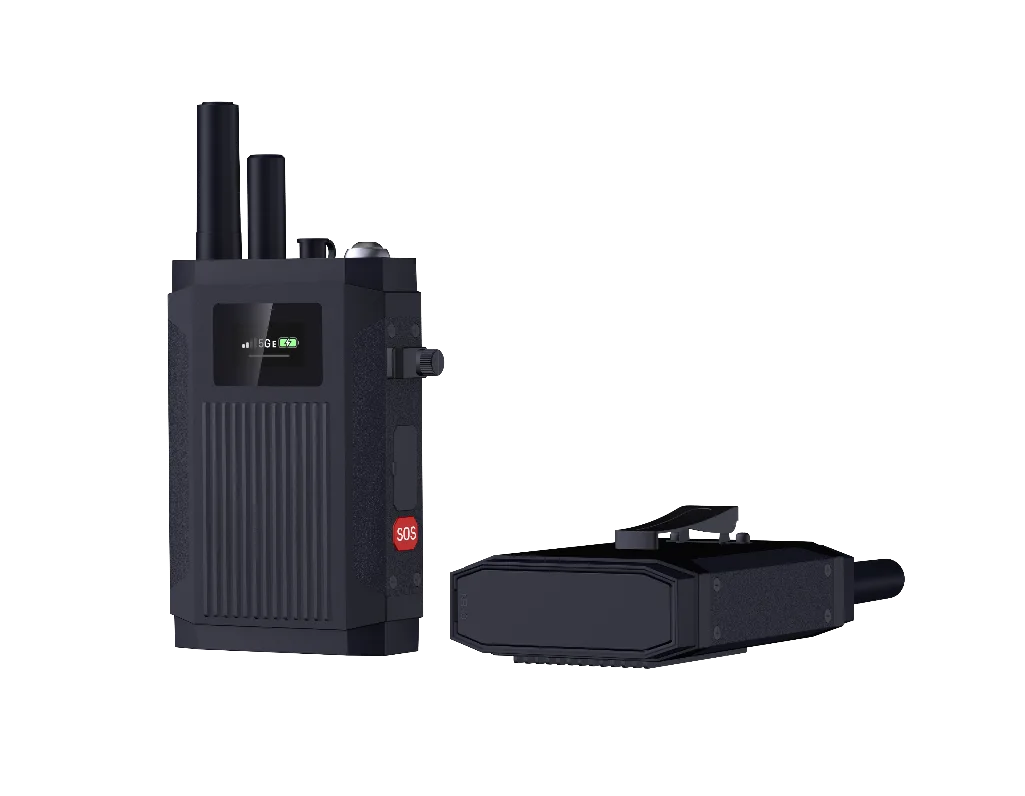

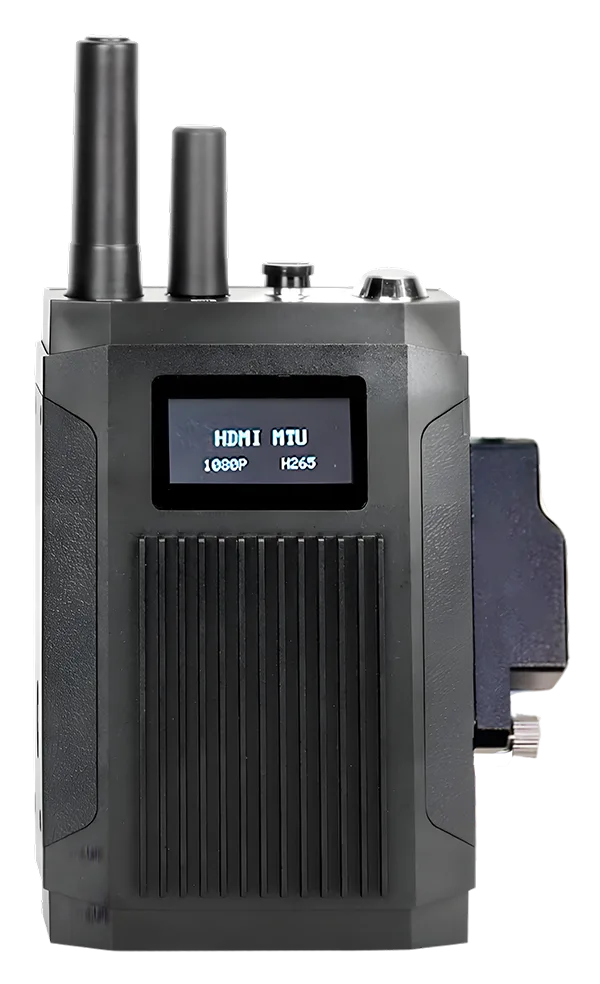

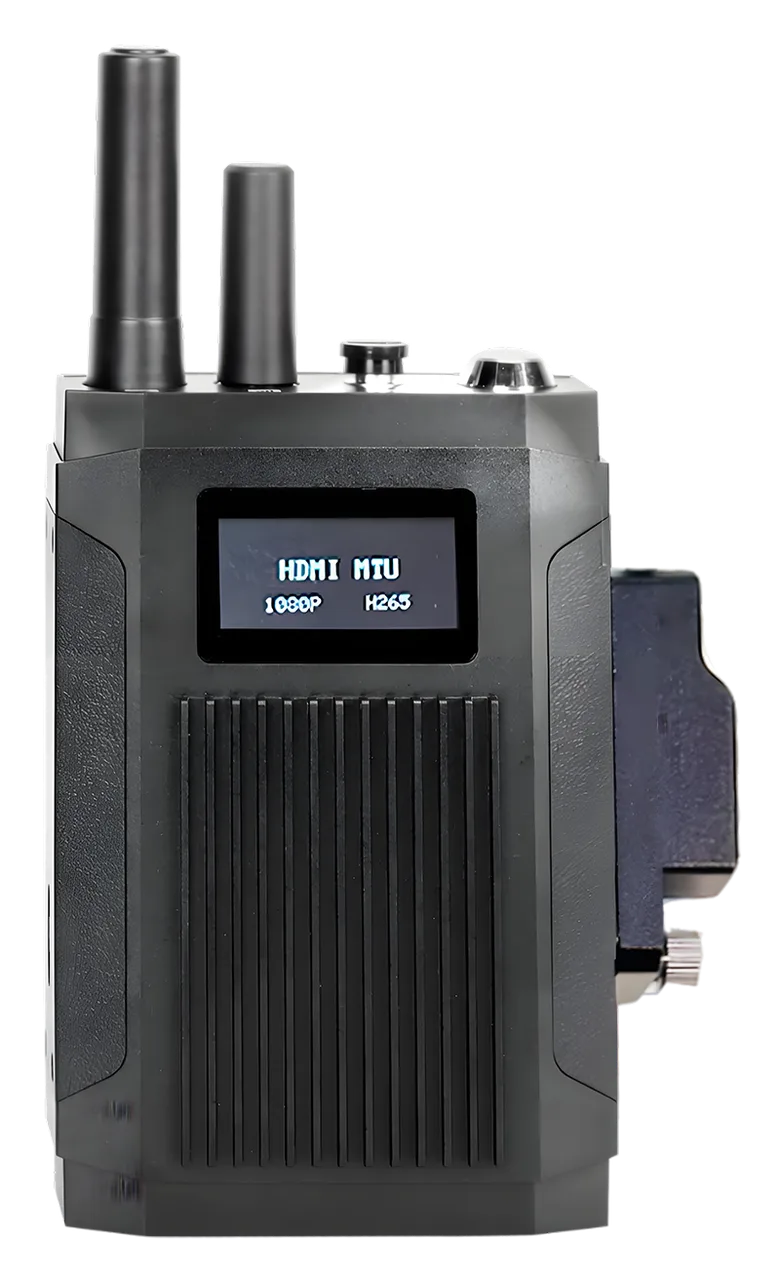

Appearance
Buttons and Interfaces

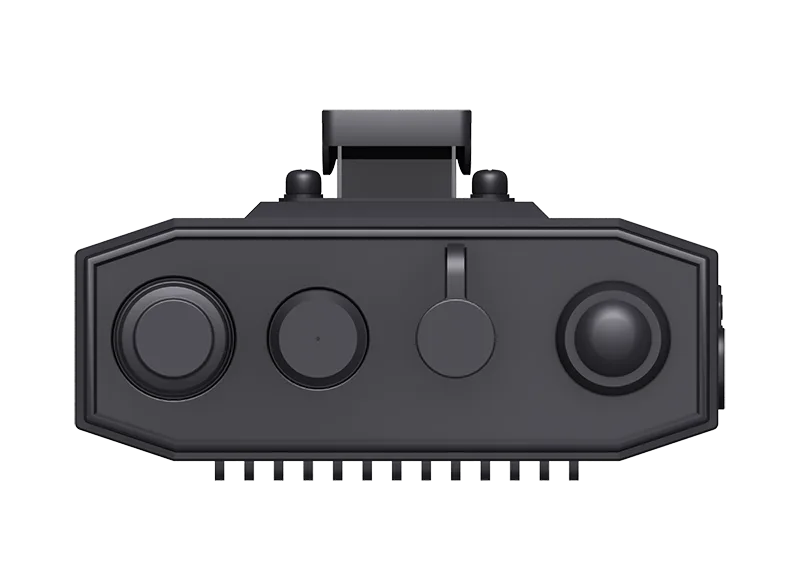

Top Structure

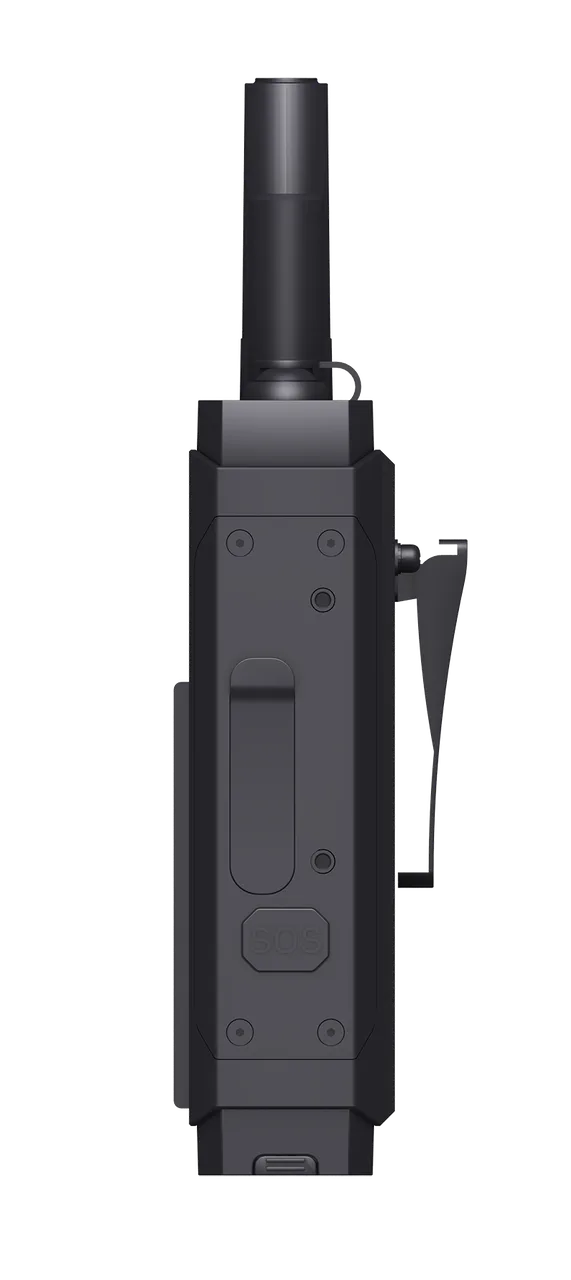

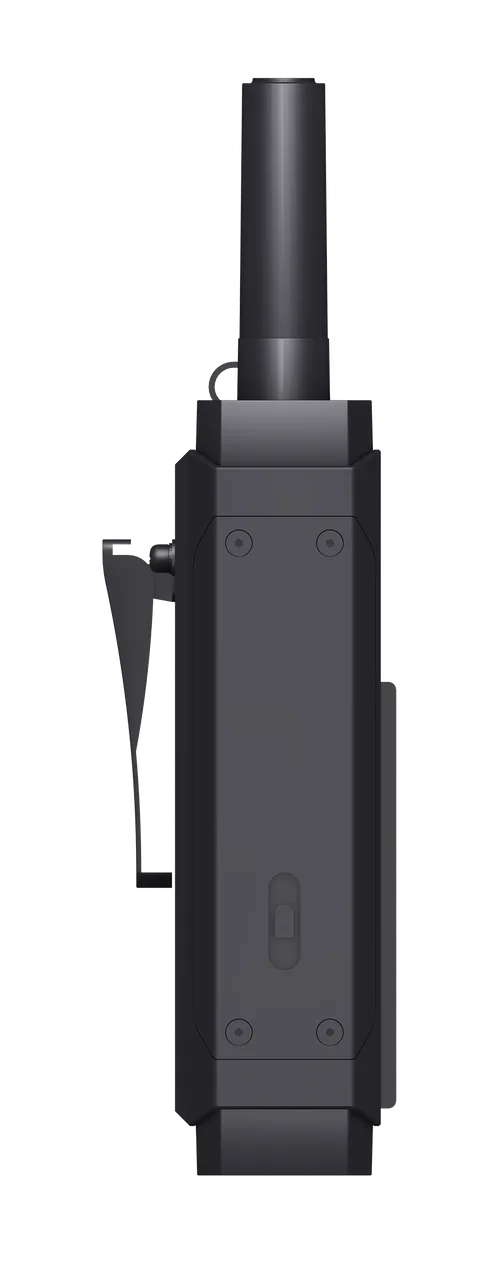

Side Structure
Bottom Structure
