M20Ev
M20Ev series is an integrated design with front and rear dual cameras, 4G, GPS and WIFI. While the rear camera can record the car, the front…
Key Specs
| Video Encoding | H.265/H.264 |
|---|---|
| TF card | 2, maximum 1TB*2 |
| WIFI | 2.4G |
| RS232 | 1 group |
| Size | 126 mm (L) * 81.5 mm (W) * 41 mm (H) |
Full Specification
Product introduction
M20Ev series is an integrated design with front and rear dual cameras, 4G, GPS and WIFI. While the rear camera can record the car, the front camera can also record the road information, which has obvious advantages in convenience and security. M20Ev series support H.265 video decoding technology, GPS/BD positioning technology and other mainstream video/network technology.
Product Advantage
- The on-board interface can operate reliably and stably in complex environments
- Video encoding H.265, H.264 is optional
- Support 4G, WIFI, GPS function module
- Supports 2 TF cards. Comes with dual cameras
- Adhesive backing allows for quick installation
Core parameter
Project | Parameter Description | |
Audio and video input | Video Input | Built-in: 2*1080P External: 2*1080P AHD |
Built-in camera perspective | Outside view：D:130°H:105°V:53° Inside view：D:157°H:127°V:65° | |
Video Standards | 25FPS | |
Audio Input | 1 built-in channel | |
Audio and video output | CVBS output | Resolution D1, 2-split view (2 external cameras with 4 partitions) |
Audio Output | built-in | |
Audio and video parameter encoding | Video Encoding | H.265/H.264 |
Video resolution | 1080P/720P/D1 | |
Audio Coding | G.711A | |
Storage Space | TF card | 2, maximum 1TB*2 |
Wireless network | 4G Wireless | 1 SIM card |
WIFI | 2.4G | |
Positioning method | BeiDou/GPS | Support, mixed positioning possible |
interface | RS232 | 1 group |
SENSOR | 1 | |
SENSOR OUT | 1 | |
ADC | 1 | |
Physical specifications | Size | 126 mm (L) * 81.5 mm (W) * 41 mm (H) |
Weight | NW: 0.3 kg GW: 0.65 kg （with a fluctuation of 5% ) | |
Work Environment | Operating temperature | -20～+70℃ |
Operating humidity | 8%～90% (no condensation) | |
Other | SOS button | Support |
Collision Sensor | Support | |
GSensor | Support | |
Linkage alarm | Acceleration, rollover, collision trigger | |

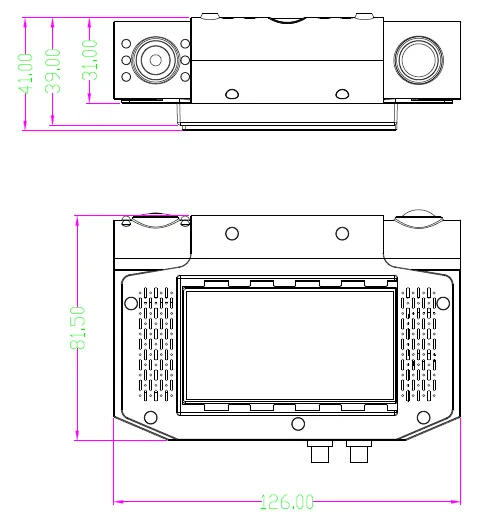

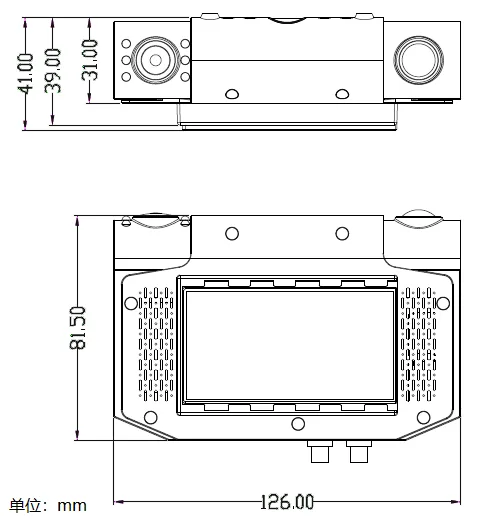

Size
Body mechanism

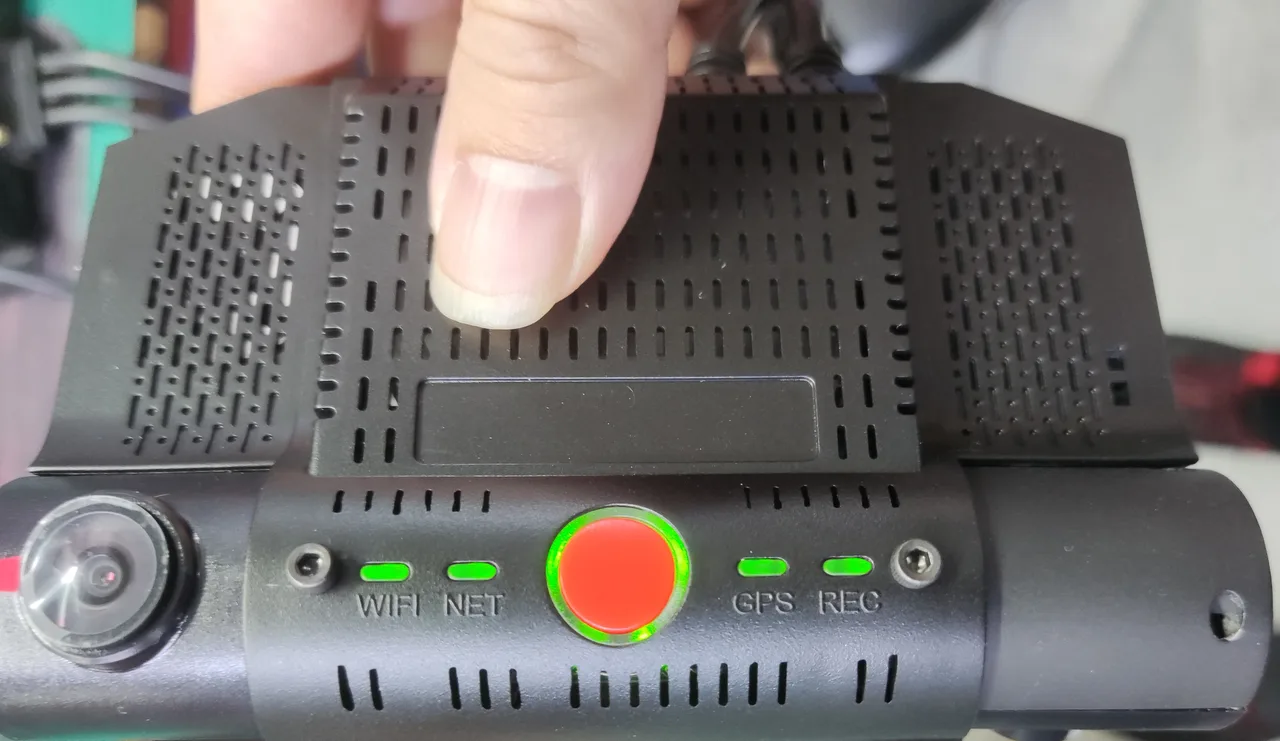

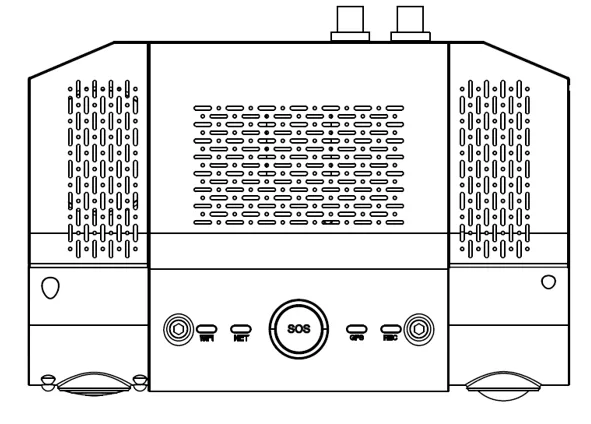

Front panel

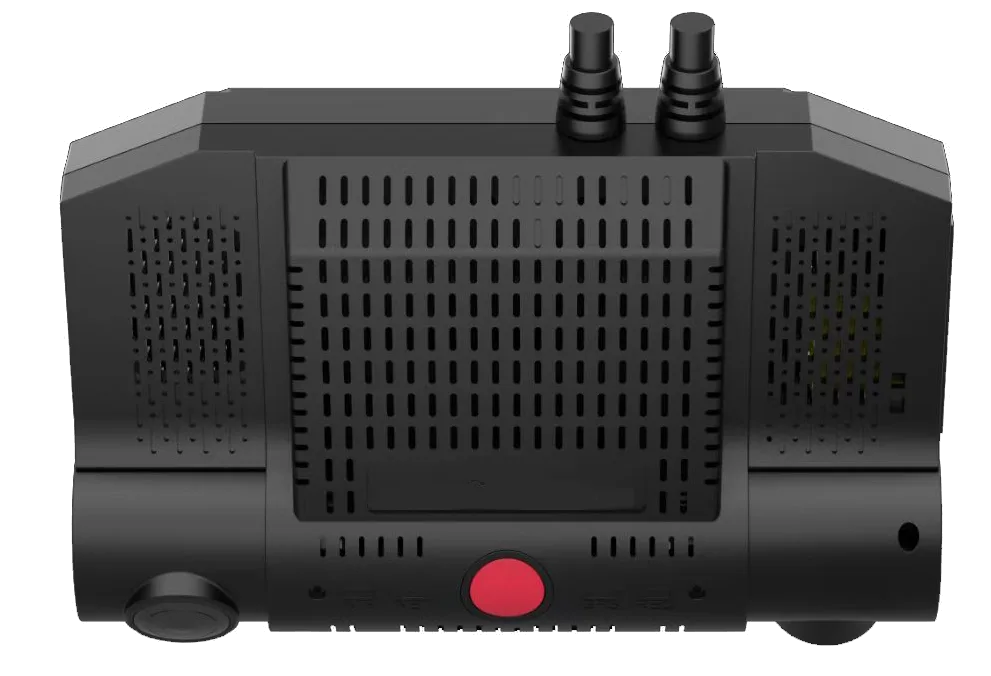

Rear panel

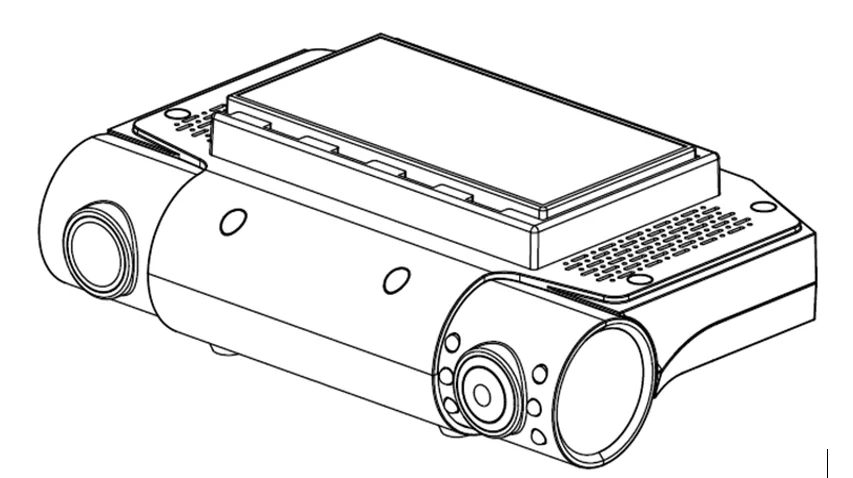

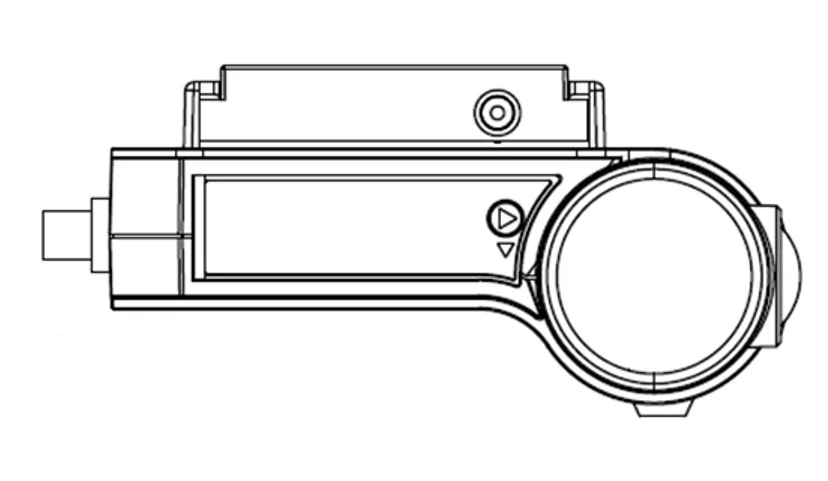

construction profile
