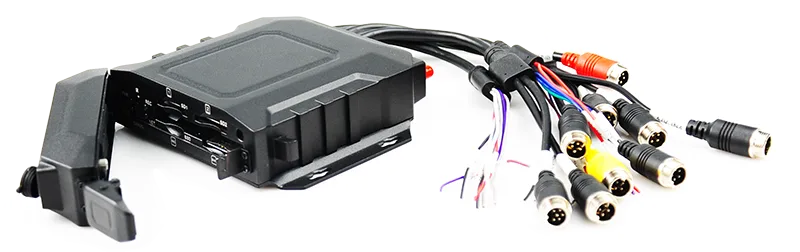

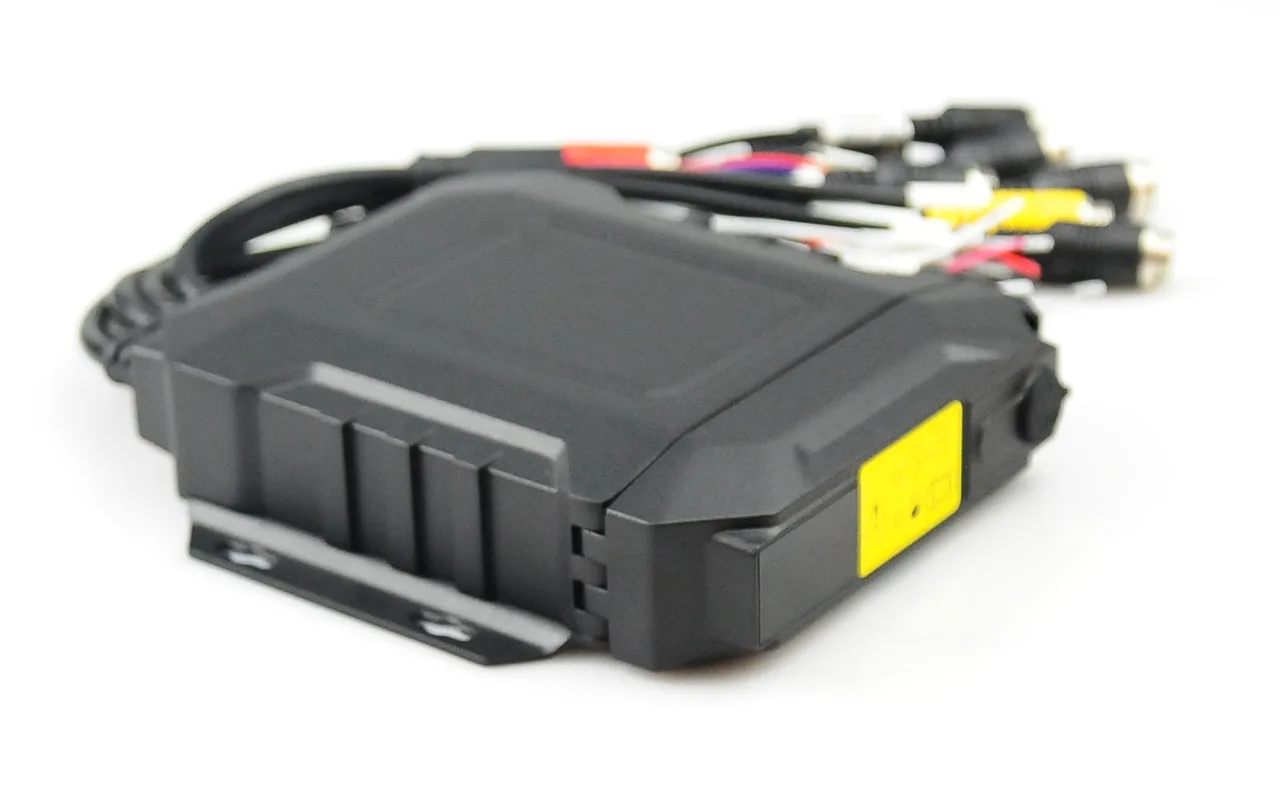

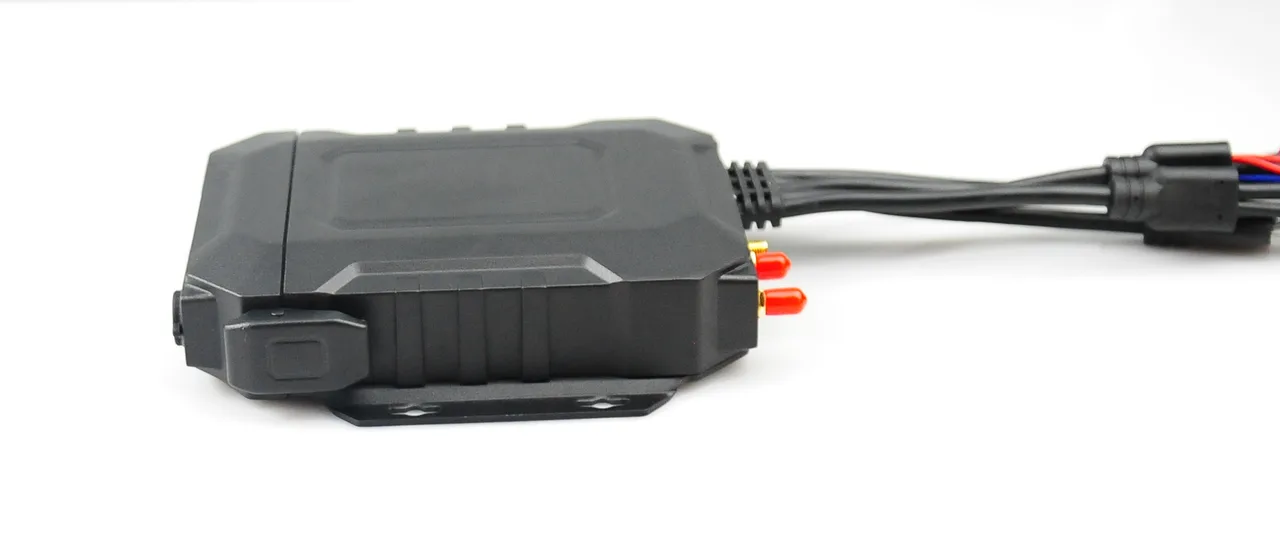

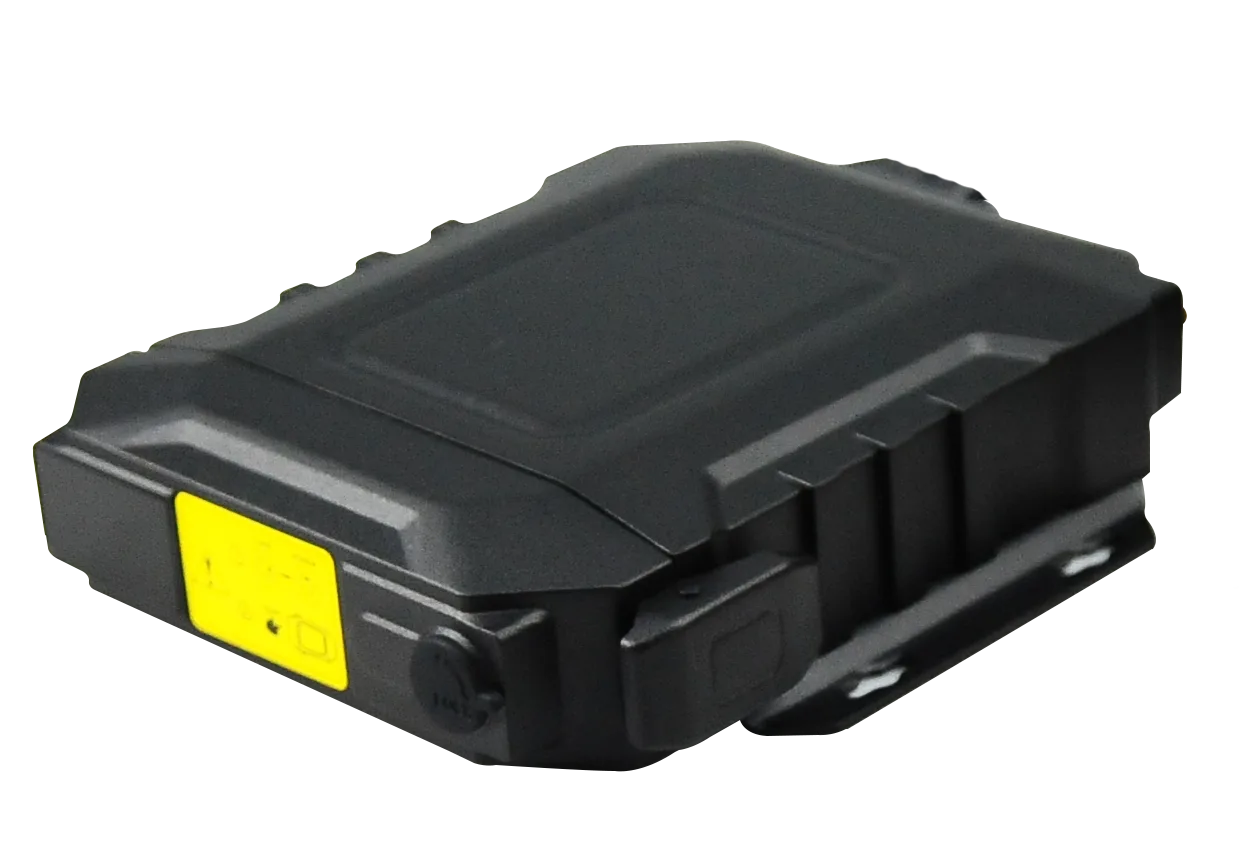

M32Hv
M32Hv series is a dedicated vehicle-mounted audio and video surveillance product that uses a high-speed processor. It adopts a waterproof an…
Key Specs
| Video Encoding | H.264/H.265 |
|---|---|
| WIFI | 2.4/5.8G ( optional) |
| RS232 | 1 group |
| RS485 | 1 group (enhanced version) |
| Size | 154mm ( L ) *148mm ( W ) *39mm ( H ) (excludin… |
Full Specification
Product introduction
M32Hv series is a dedicated vehicle-mounted audio and video surveillance product that uses a high-speed processor. It adopts a waterproof and dustproof structural design and an embedded operating system, integrating IT cutting-edge technologies such as H.264/H.265 video compression / decompression, 4G network, GPS/BD positioning, etc. It has the characteristics of strong earthquake resistance, simple appearance, flexible and convenient installation, comprehensive functions, and high reliability.
Product Advantage
- The interface can operate reliably and stably in complex environments
- Video encoding H.265, H.264 is optional
- Support 4G 、WIFI and GPS functional modules
- Supports a 2.5-inch optional SSD/HDD hard disk
- Support two SD cards
- Rich peripheral interfaces
- Support external UPS battery life

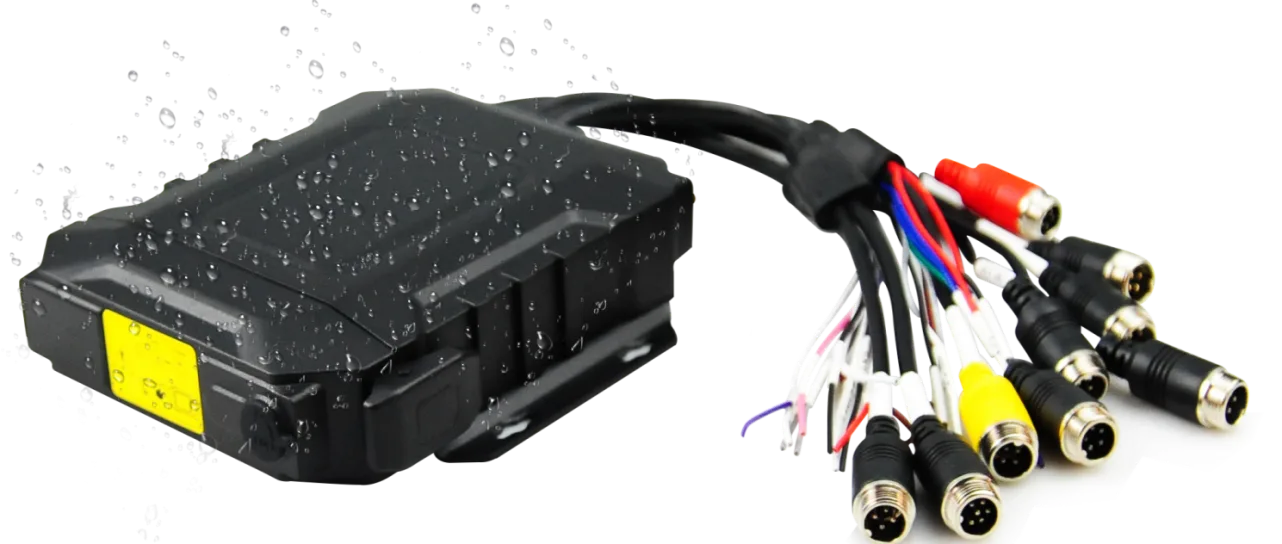

- Waterproof dust-proof
Core parameters
Project | Parameter Description | |
Audio and video input | AHD Video Input | External 4 * 1080P |
Video Standards | 30fps | |
Audio Input | 4+1 | |
Audio and video output | CVBS output | 1 |
VGA output | 1 (optional) | |
Audio Output | 1 | |
Audio and video parameter encoding | Video Encoding | H.264/H.265 |
Video resolution | 1080P/720P/D1 | |
Audio Coding | G.711A | |
Storage Space | Solid State Drive | 1, maximum 8TB |
SD Card | 2 sheets , maximum 1T*2 | |
Wireless network | 4G Wireless | 1 SIM card |
WIFI | 2.4/5.8G ( optional) | |
Positioning method | BeiDou /GPS | Support, mixed positioning possible |
Interface | RS232 | 1 group |
RS485 | 1 group (enhanced version) | |
SENSOR | 2/4 (Enhanced Edition) | |
SENSOR OUT | 2 (Enhanced version) | |
ADC | 2 (Enhanced version) | |
USB | 1 ( Enhanced version) | |
NET | 1 (Enhanced version) | |
MIC | 1 | |
Physical specifications | Size | 154mm ( L ) *148mm ( W ) *39mm ( H ) (excluding tail wire) |
Weight | NW：1.10 kg，GW：1.40 kg | |
Work Environment | Operating temperature | -20°C to +70°C |
Protection level | 10% ~ 95% (no condensation) | |
Protection Rating | IP66 | |
Other | Operation Mode | Remote control, APP , WEB |
G SENSOR | support | |

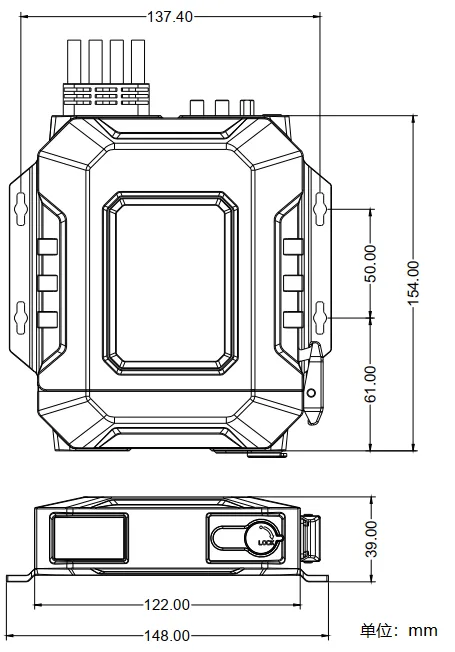

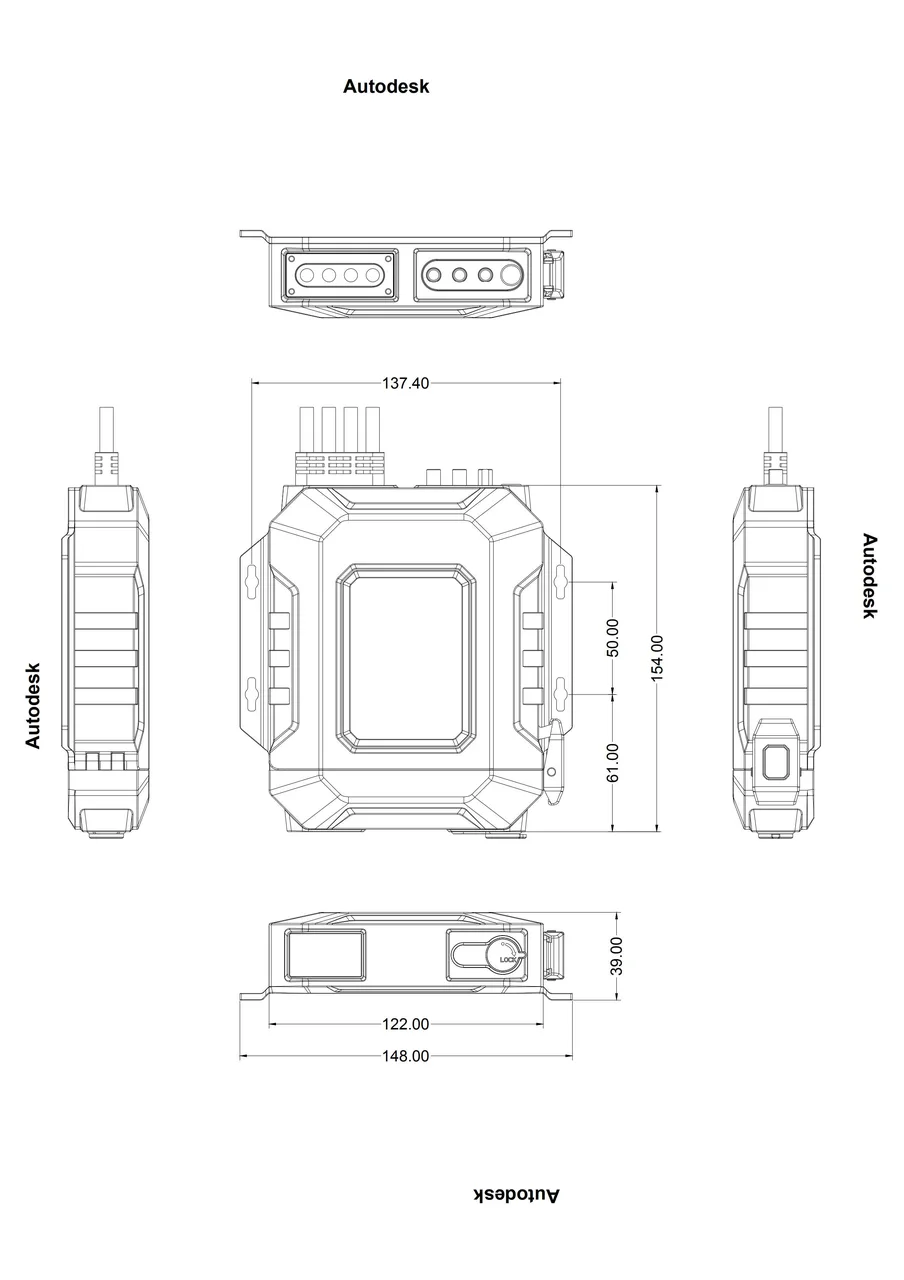

size
Panel& interface

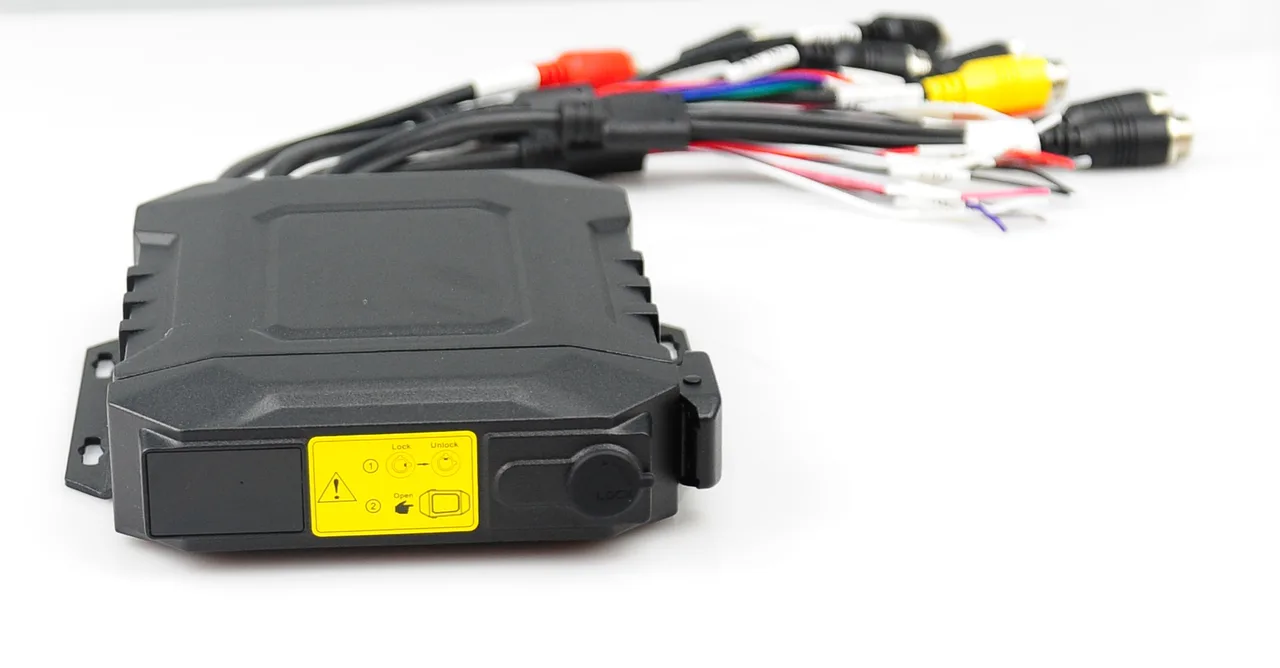

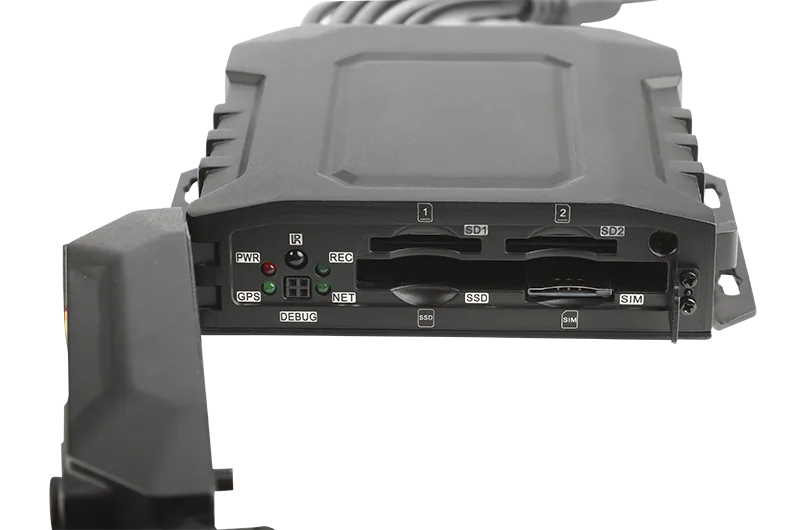

Front panel
WIFI

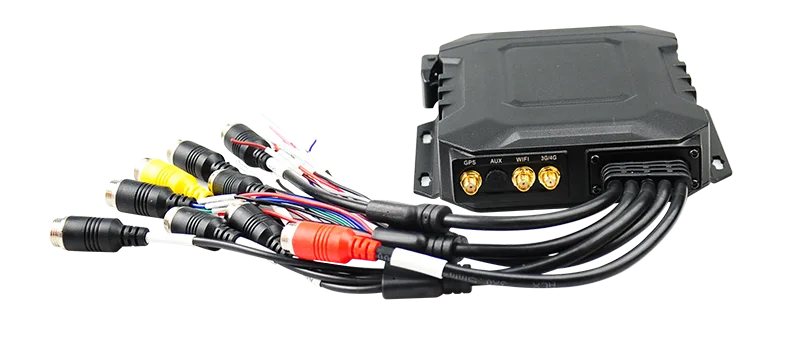

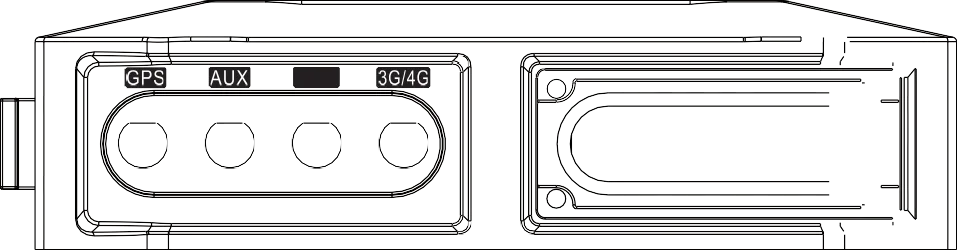

Rear panel
