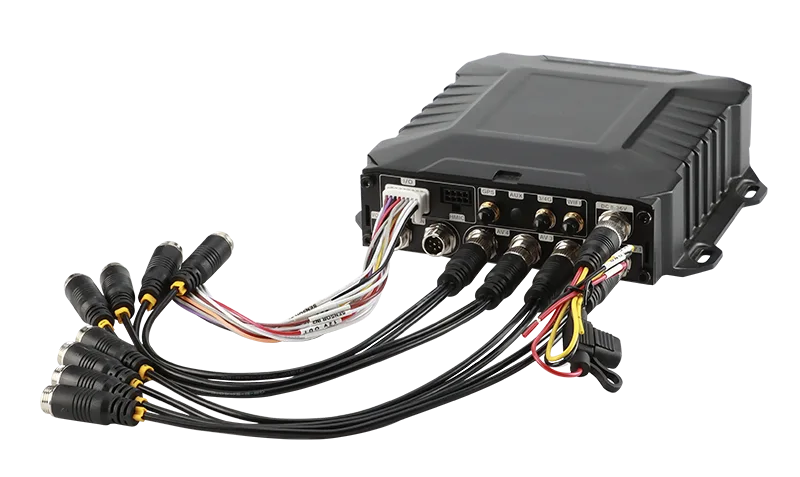

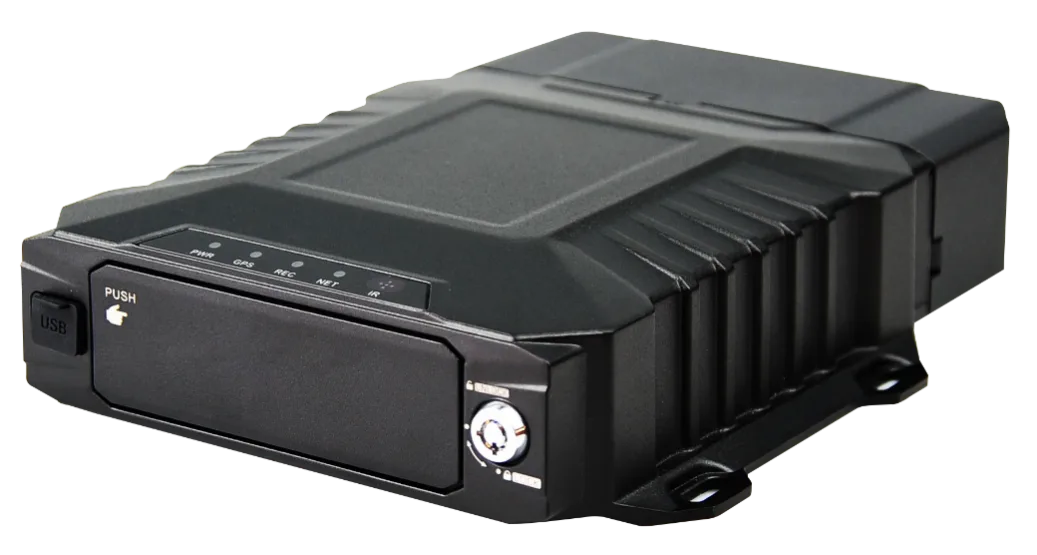

M51&52Hv
M51/52Hv is designed for vehicle video monitoring, remote video monitoring development of a high-performance, highly expandable product, fea…
Key Specs
| Video Encoding | H.264/H.265 |
|---|---|
| WIFI | 2.4/5.8G ( optional) |
| RS232 | 1 group |
| RS485 | 1 group |
| Size | 176.9mm ( L ) *186.8mm ( W ) *54mm ( H ) (with… |
Full Specification
Product introduction
M51/52Hv is designed for vehicle video monitoring, remote video monitoring development of a high-performance, highly expandable product, featuring a self-ejecting hard drive structure and high-speed processor NT98323 and embedded operating system, integration of IT cutting-edge field H.264/H.265 video compression or decompression, 4G network, GPS/BD positioning technology. It has the characteristics of strong earthquake resistance, simple appearance, flexible and convenient installation, comprehensive function and high reliability.
Product Advantage
- The interface can operate reliably and stably in complex environments
- Video encoding H.265, H.264 is optional
- Support 4G WIFI and GPS functional modules
- Supports a 2.5-inch optional SSD/HDD hard disk
- Supports one SD card
- Rich peripheral interfaces
- Support external UPS battery life
- High scalability
Core parameters
Project | Parameter Description | |
Audio and video input | AHD Video Input | M51Hv external 4 * 1080P M52Hv external 8*1080P |
Video Standards | 30FPS (4 channels) / 15FPS (8 channels) | |
Audio Input | 5 | |
Audio and video output | CVBS output | 1 |
VGA output | 1(optional) | |
Audio Output | 1 | |
Audio and video parameter encoding | Video Encoding | H.264/H.265 |
Video resolution | 1080P/720P/D1 | |
Audio Coding | G.711A | |
Storage Space | Harddisk | SSD/HDD, maximum 8T |
SD Card | 1 card, maximum 1T | |
Wireless network | 4G Wireless | 1 SIM card |
WIFI | 2.4/5.8G ( optional) | |
Positioning method | BeiDou /GPS | Support, mixed positioning possible |
Interface | RS232 | 1 group |
RS485 | 1 group | |
SENSOR | 4 | |
SENSOR OUT | 2 | |
ADC | 2 | |
USB | 1 | |
NET | 1 | |
MIC | 1 | |
Physical specifications | Size | 176.9mm ( L ) *186.8mm ( W ) *54mm ( H ) (without cable shroud) |
Weight | NW：1.4kg，GW:2kg (fluctuating 5% up and down) | |
Work Environment | Operating temperature | -20 ～ +70 ℃ |
Operating humidity | 8% ~ 90% (no condensation) | |
Other | Operation Mode | Remote control, APP , WEB |
G SENSOR | Support | |

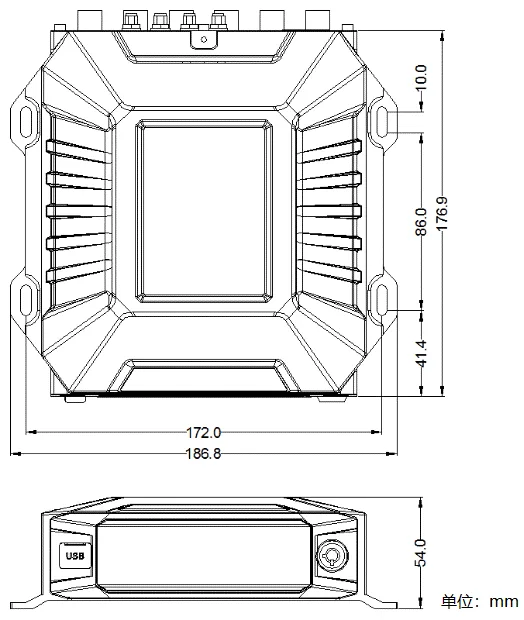

Size
Panel& interface

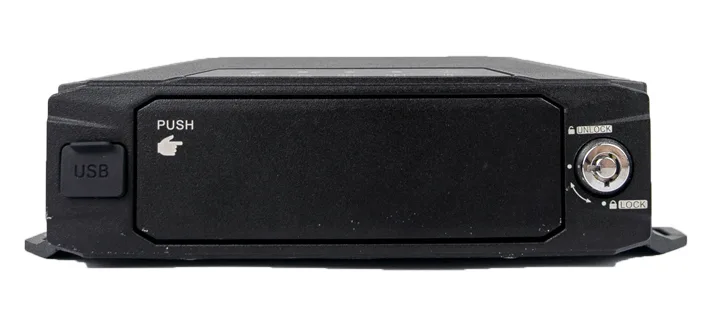

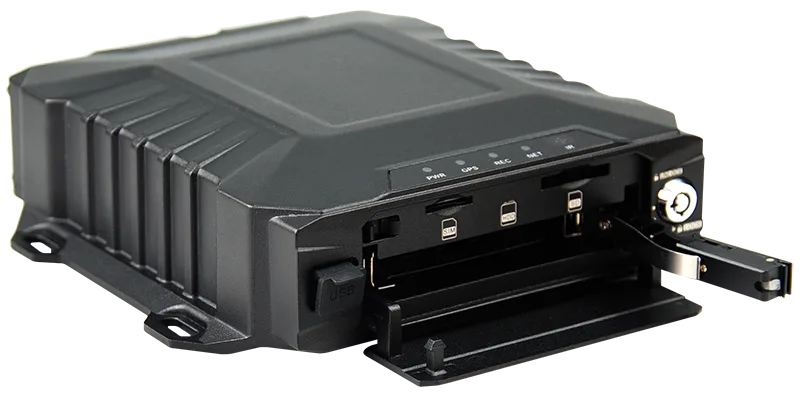

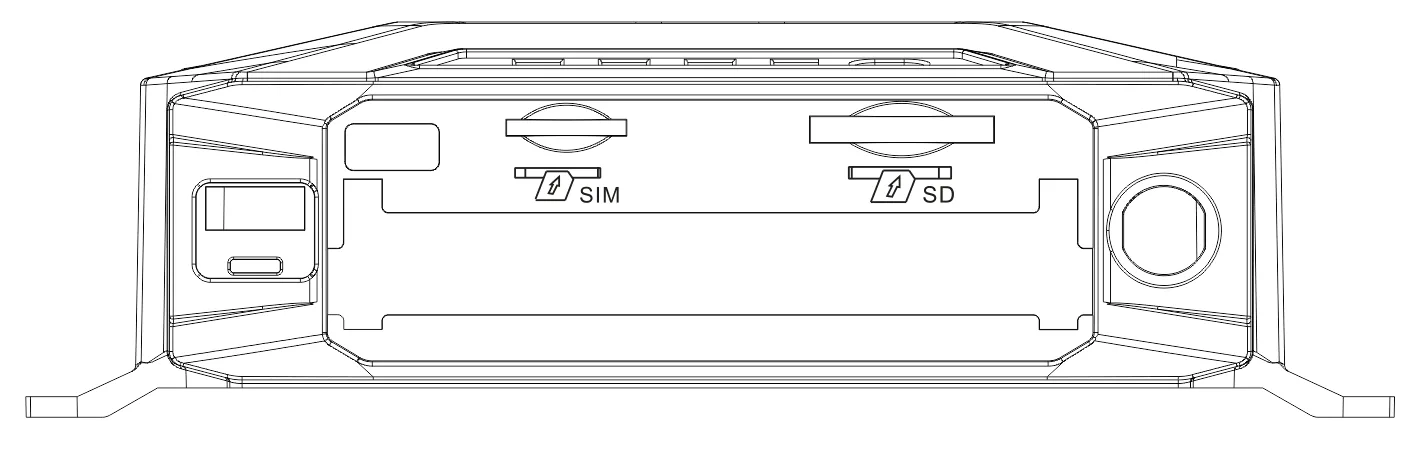

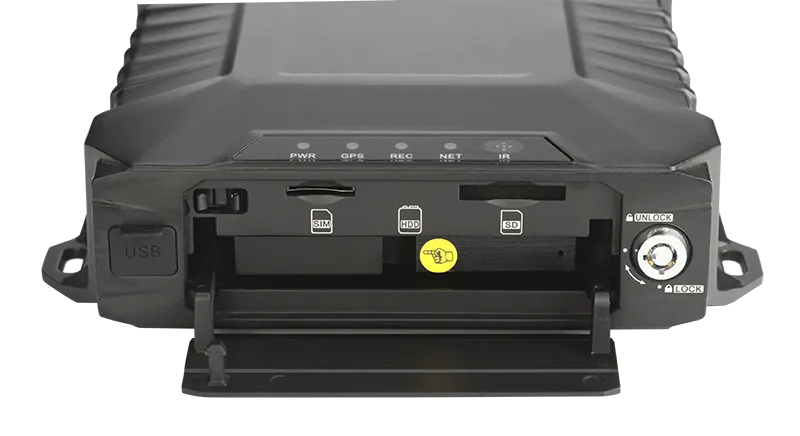

Front panel
![d:\Documents\Tencent Files\280646473\Image\C2C\Image1\@AD1LRZP6W}F_W7$CK{_]BU.png](/assets/products-media/en/host/host-en-m51-52hv/spec-images/img-4.webp)

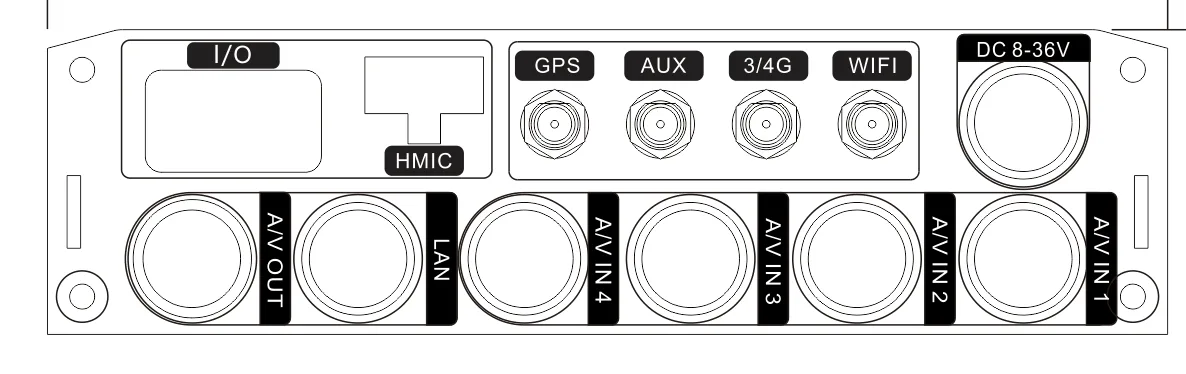

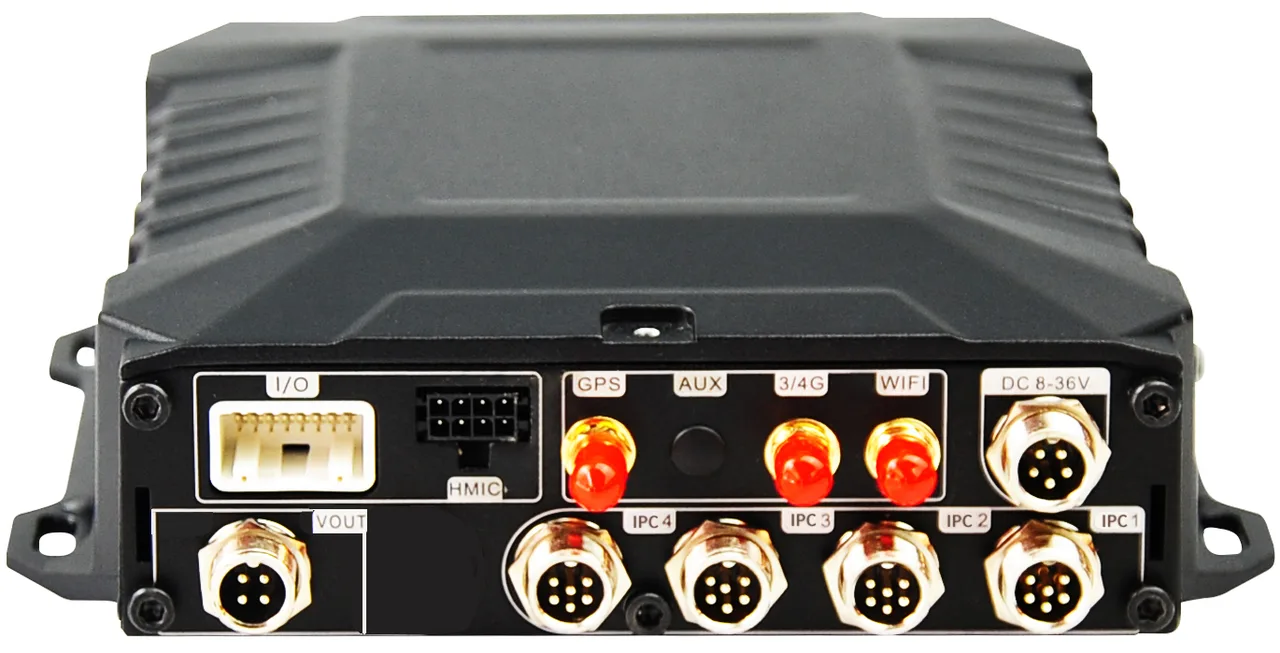

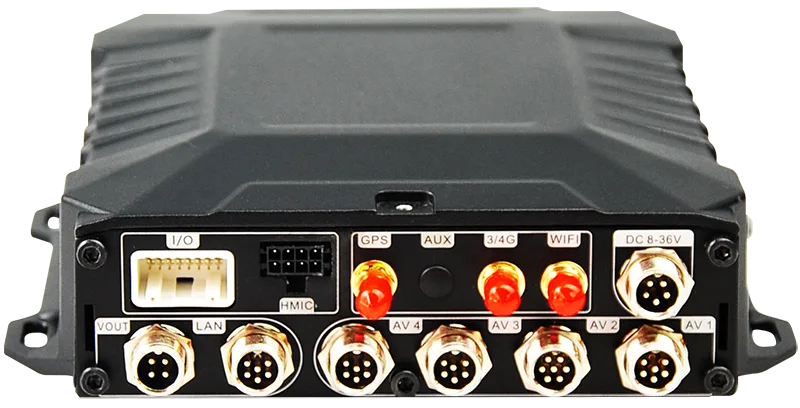

Rear panel
