M25Hv
The M25Hv series is designed for in-vehicle video surveillance, intelligent image recognition, and highly expandable products. It utilizes t…
Key Specs
| AHD input | External 4 * 1080P |
|---|---|
| Video encoding | H.264/H.265 |
| TF card | 1, maximum 1TB |
| RS232 | 1( GPS module ) |
| Size | 1 30 mm (L) * 71.2 mm (T) * 27.8 mm (H) |
Full Specification
Note: The appearance of the device may vary slightly depending on the version.

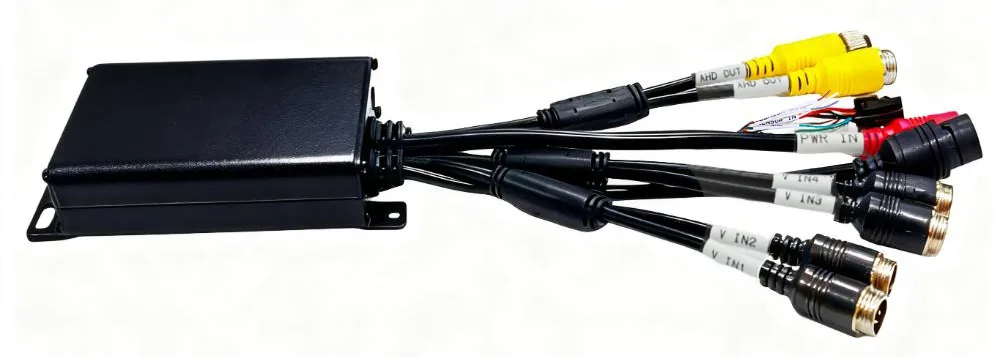

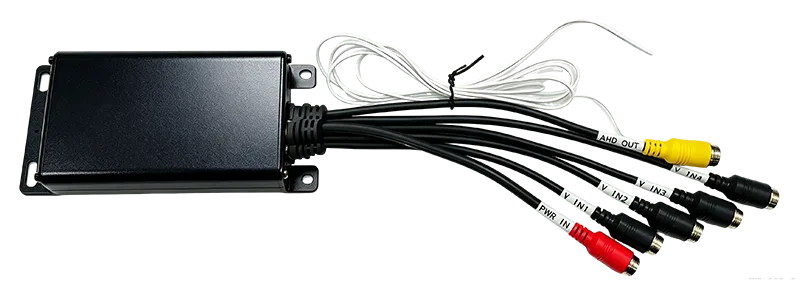

Product Introduction
The M25Hv series is designed for in-vehicle video surveillance, intelligent image recognition, and highly expandable products. It utilizes the high-speed NT98321 processor and an embedded operating system, integrating cutting-edge IT technologies such as H.264/H.265 video compression / decompression. Its multi-functionality allows for diverse product development, such as: a 4- channel video splitter, a 4- channel BSD intelligent recognition alarm, and a DMS ( Driver Fatigue Assist System).
Product Advantages
- Supports up to 4 AHD video inputs
- Video encoding options : H.265 or H.264
- Supports AHD 1080P output.

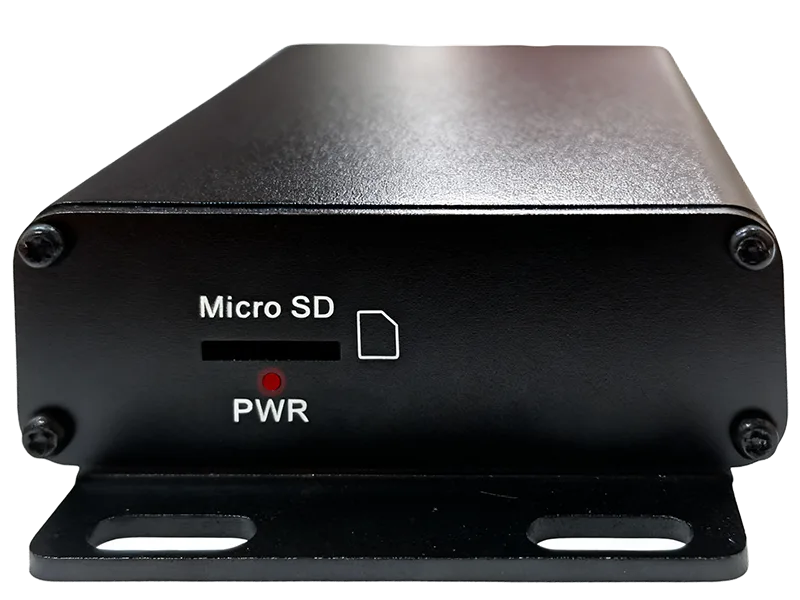

- Supports one TF card
- Abundant peripheral interfaces
- High scalability
Core parameters
project | Parameter Description | |
AI Functions | ADAS, DSM, BSD | Full-featured AI |
Video input | AHD input | External 4 * 1080P |
Audio and video output | AHD output | Route 1 ( 1080P ) |
Voice output | 1 ( four-core male connector，yellow ) | |
Video parameter encoding | Video encoding | H.264/H.265 |
Video resolution | 1080P/720P/D1 | |
Storage space | TF card | 1, maximum 1TB |
Interface | RJ45 | 1 ( 100MB ) |
RS232 | 1( GPS module ) | |
SENSOR OUT | 1 | |
M12 4-core aviation female connector (V) | 4 ( 4- channel AI video input ) | |
M12 4-core aviation male connector (V) | 1( AHD video output ) | |
M12 4-core aircraft carrier bow ( A ) | 1 ( For external speaker output ) | |
Physical Specifications | Size | 1 30 mm (L) * 71.2 mm (T) * 27.8 mm (H) |
Weight | GW：0.3kg; NW：0.34kg | |
Work environment | Operating temperature | -20 to +70℃ |
Operating humidity | 8%~90% (non-condensing) | |
other | Operating mode | Mobile App, Web |
Dimensions
