M15Hv

Video encoding	H.264/H.265
SD card	1 , maximum 1T
RS232	1 group
RS485	1 group(optional)
Size	102.8mm ( L ) 120mm ( W ) 32.23mm ( H ) (exc…

Product introduction

M15Hv is a high-performance, high- expansion product specially developed for in-vehicle video surveillance and remote video surveillance. etc. technology. M15Hv has a compact structure, elegant appearance, and easy installation and use. It is a basic product for lightweight applications. It is suitable for public safety, long-distance passenger transportation, road inspection and other automotive mobile monitoring fields.

Product advantages

The in-vehicle interface can operate reliably and stably in complex environments
Video encoding H.265, H.264 optional
Support 4G , GPS function module
Support one SD card
Abundant peripheral interfaces
Support external UPS battery life
High scalability

Core parameters

Project		Parameter Description
Audio and video input	AHD video input	External 4 * 1080P
	Video standards	30FPS
	Audio Input	2
Audio and video output	CVBS output	1
	VGA output	1 (optional)
	Audio output	1
Audio and video parameter encoding	Video encoding	H.264/H.265
	Video resolution	1080P/720P/D1
	Audio coding	G.711A
Storage Space	SD card	1 , maximum 1T
Wireless network	4G wireless	1 SIM card
Positioning method	BeiDou /GPS	Support, mixed positioning possible
Interface	USB	1
	RS232	1 group
	RS485	1 group(optional)
	SENSOR	4
	SENSOR OUT	1
	NET	1 (optional)
Physical specifications	Size	102.8mm ( L ) 120mm ( W ) 32.23mm ( H ) (excluding tail wire)
Physical specifications	Weight	NW：0.6kg，GW：0.8kg ( with a fluctuation of 5% )
Work Environment	Operating temperature	-20 ～ +70 ℃
Work Environment	Operating humidity	8% ~ 90% (no condensation)
Other	Operation Mode	Remote control, mobile phone APP , WEB

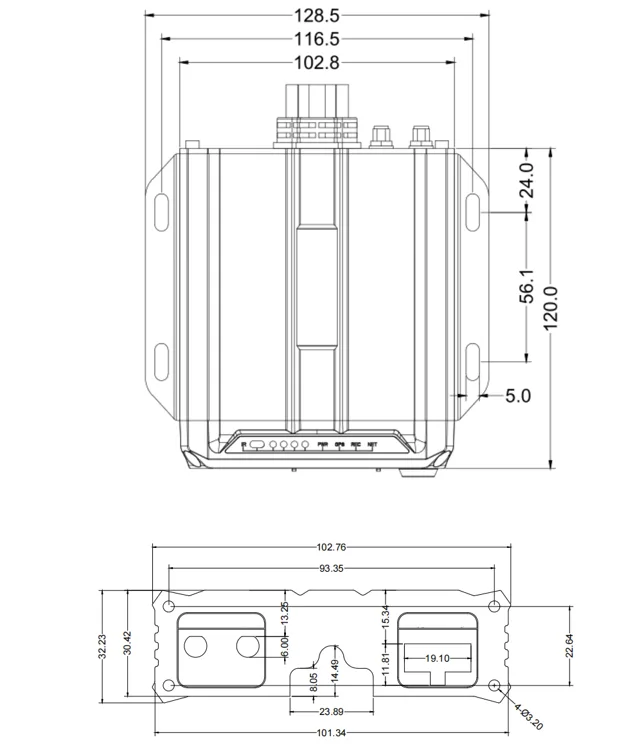

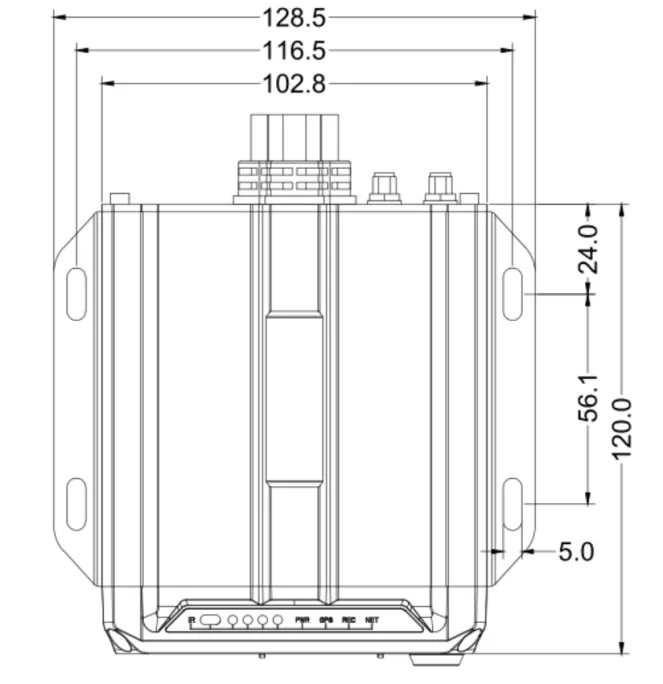

Product Size

M15Hv

Unit: mm

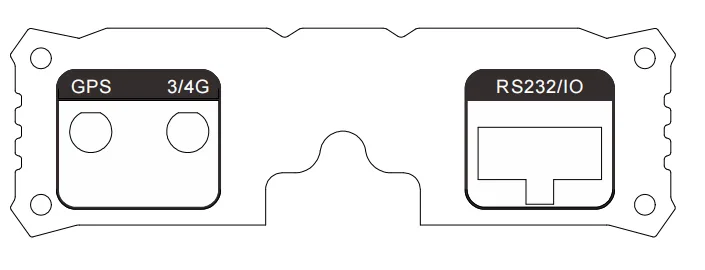

Panel interface

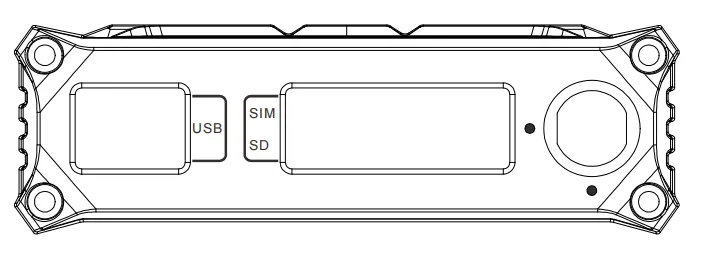

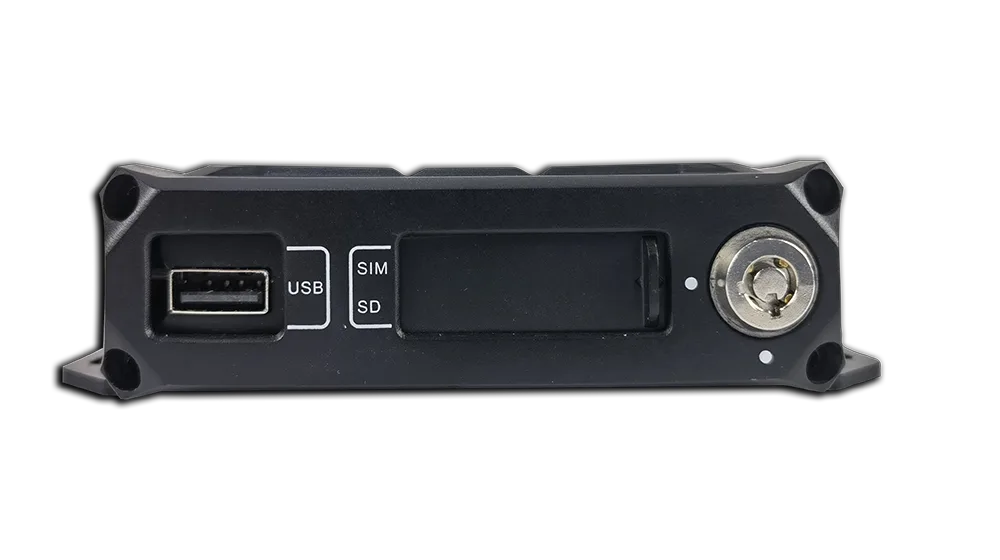

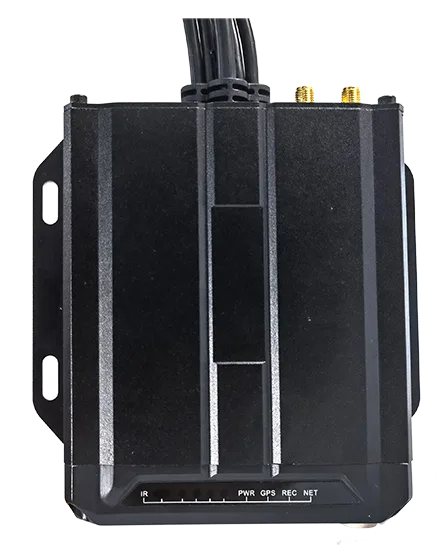

front panel

M15Hv

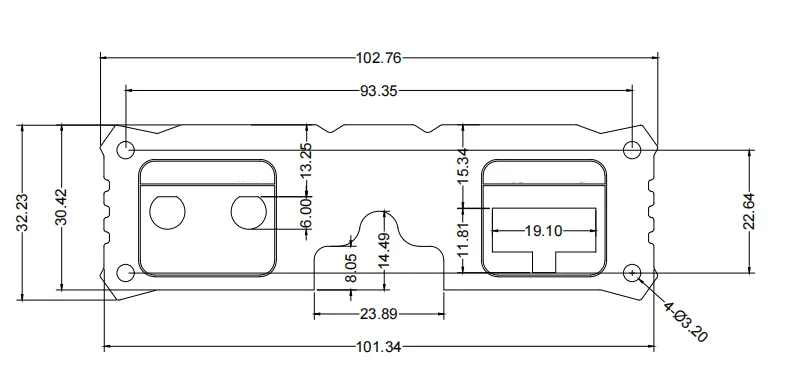

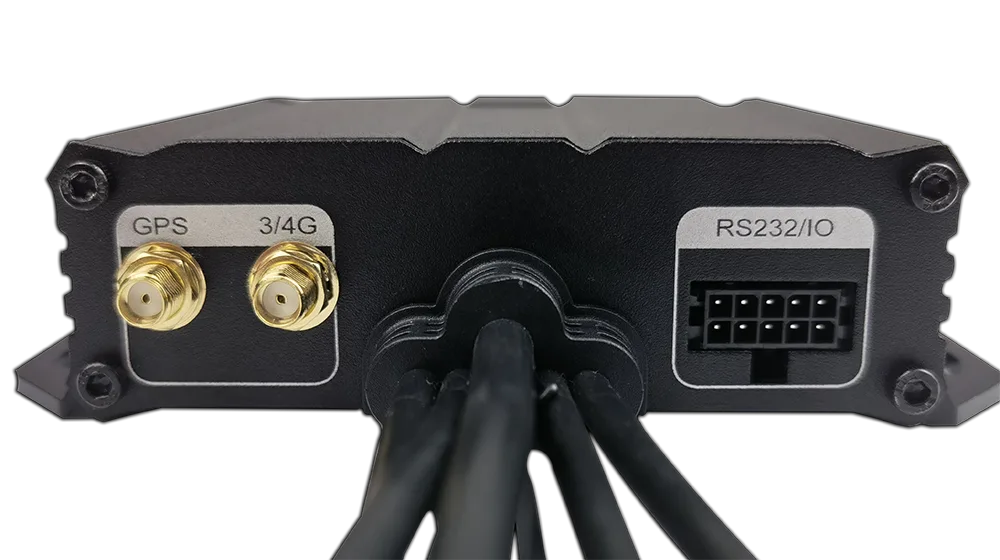

rear panel

M15Hv

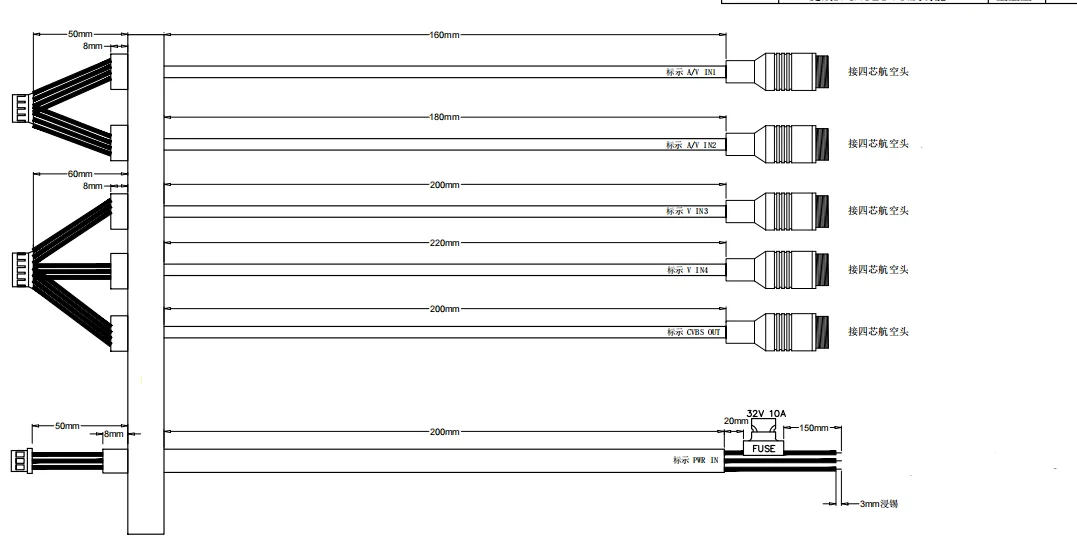

tail line definition

M15Hv

M15Hv
