M16Hv
The M16Hv series uses a mini body, which can be easily installed and used in small spaces. Support dual SD card, effectively improve the sto…
Key Specs
| Video Encoding | H.264/H.265 |
|---|---|
| WIFI | 2.4 / 5.8G ( optional) |
| RS232 | 1 group |
| RS485 | 1 group |
| Size | 135.5mm ( L ) *137.7mm ( W ) *36.5mm ( H ) |
Full Specification
Product Parameters
The M16Hv series uses a mini body, which can be easily installed and used in small spaces. Support dual SD card, effectively improve the storage space. The products are compatible with mainstream H.265 video decoding technology, 4G network technology, GPS/BD positioning technology, WIFI technology, etc., which are suitable for all kinds of road patrol vehicles, mixing trucks, logistics vehicles, dump trucks and other industrial vehicles.
Product advantages
- The on-board interface can operate reliably and stably in complex environments
- Video encoding H.265, H.264 is optional
- Support 4G, GPS, WIFI function modules
- Rich peripheral interfaces
- Support UI human-computer interface
- Support dual SD card storage
- Support remote system maintenance
Core parameters
project | Parameter Description | |
Audio and video input | AHD Video Input | External 4 * 1080P |
Video Standards | 30FPS | |
Audio Input | 3 | |
Audio and video output | CVBS output | 1 |
VGA output | 1(optional) | |
Audio Output | 1 | |
Audio and video parameter encoding | Video Encoding | H.264/H.265 |
Video resolution | 1080P/720P/D1 | |
Audio Coding | G.711A | |
Storage Space | SD Card | 2, maximum 1TB*2 |
Wireless network | 4G Wireless | 1 SIM card |
WIFI | 2.4 / 5.8G ( optional) | |
Positioning method | BeiDou /GPS | Support, mixed positioning possible |
Interface | RS232 | 1 group |
RS485 | 1 group | |
SENSOR | 4 | |
SENSOR OUT | 1 | |
ADC | 2 | |
USB | 1 | |
NET | 1 | |
Physical specifications | Size | 135.5mm ( L ) *137.7mm ( W ) *36.5mm ( H ) |
Weight | NW：0.5kg，GW：0.75kg ( with a fluctuation of 5% ) | |
Work Environment | Operating temperature | -20 ～ +70 ℃ |
Operating humidity | 8% ~ 90% (no condensation) | |
Other | Operation Mode | Remote control, APP , WEB |
G SENSOR | Support | |

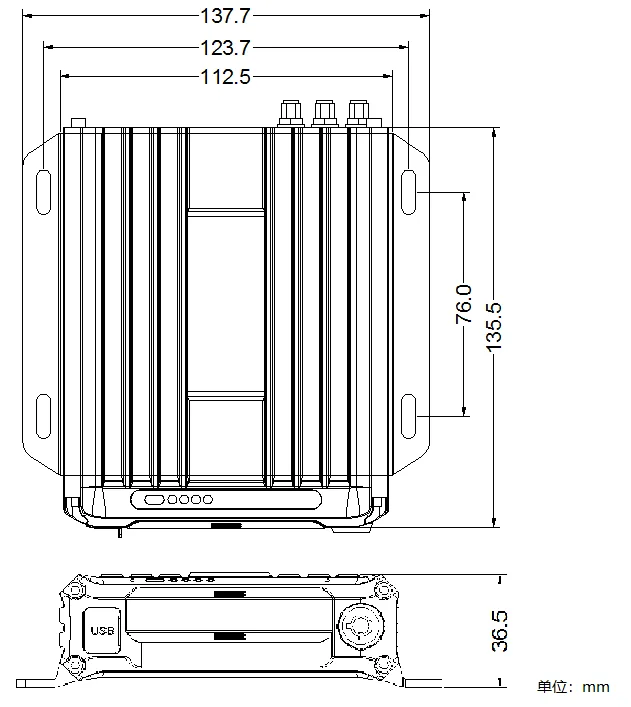

Size
Panel&interface

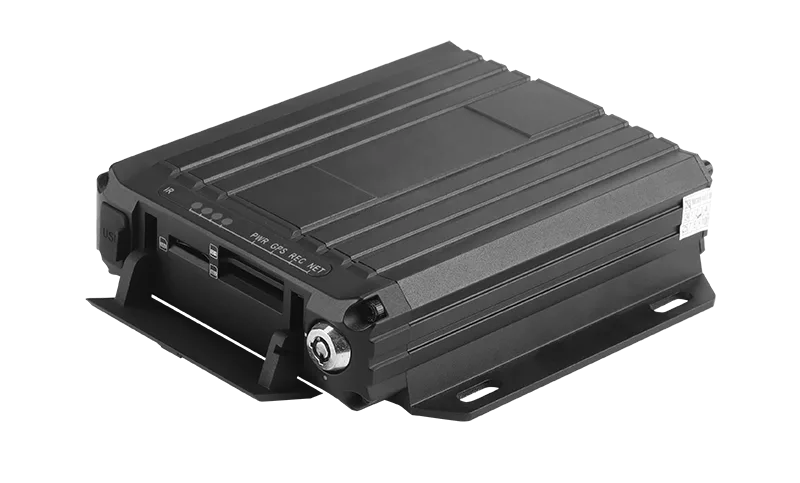

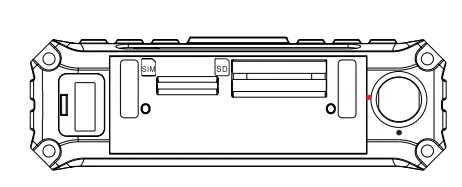

Front panel

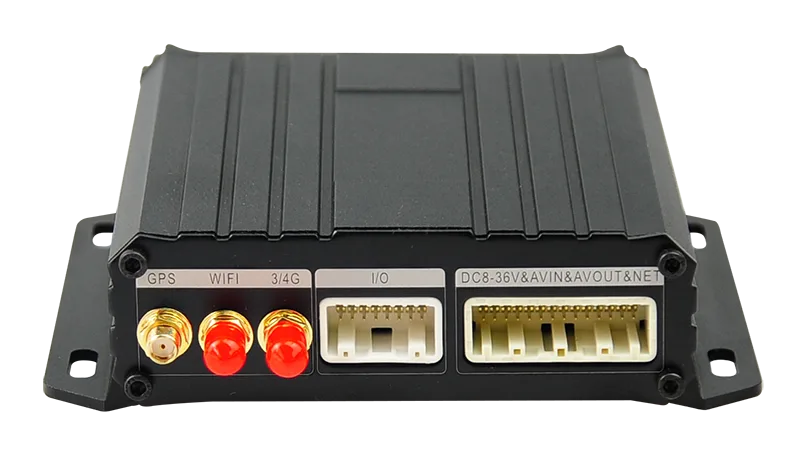

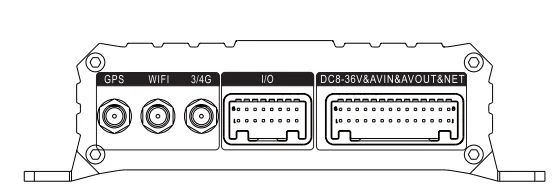

Rear panel
