MDVR
4G All-in-one
M93Hv

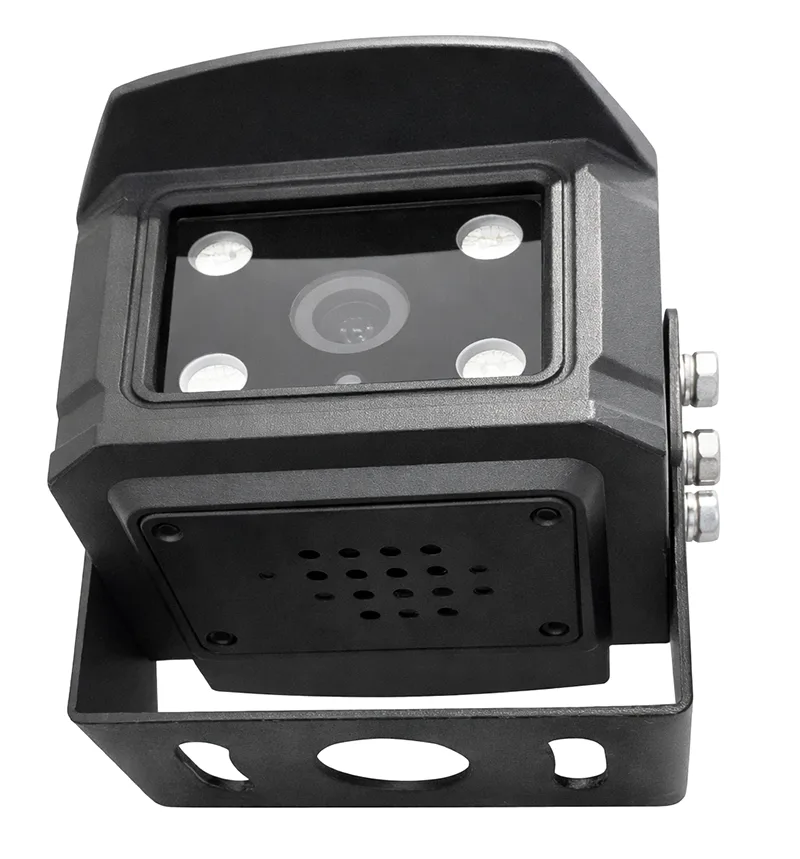

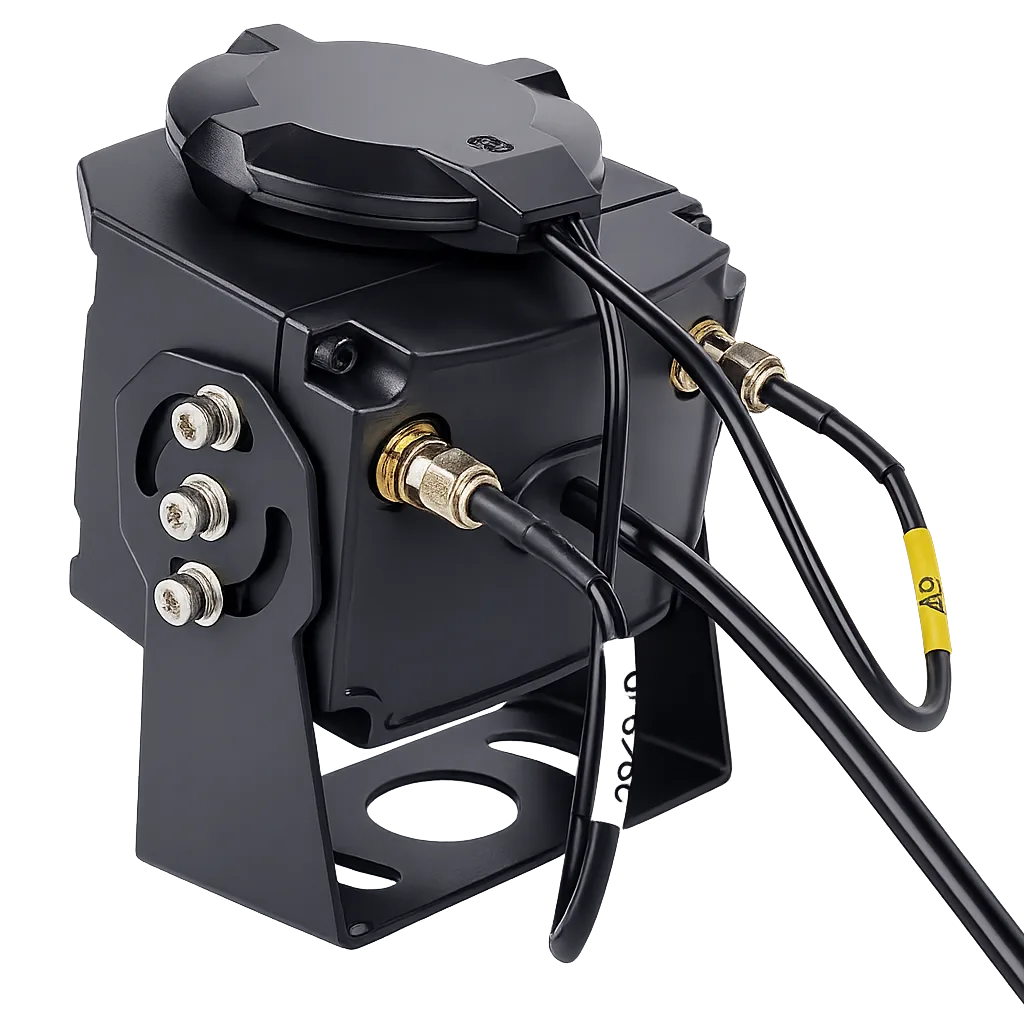

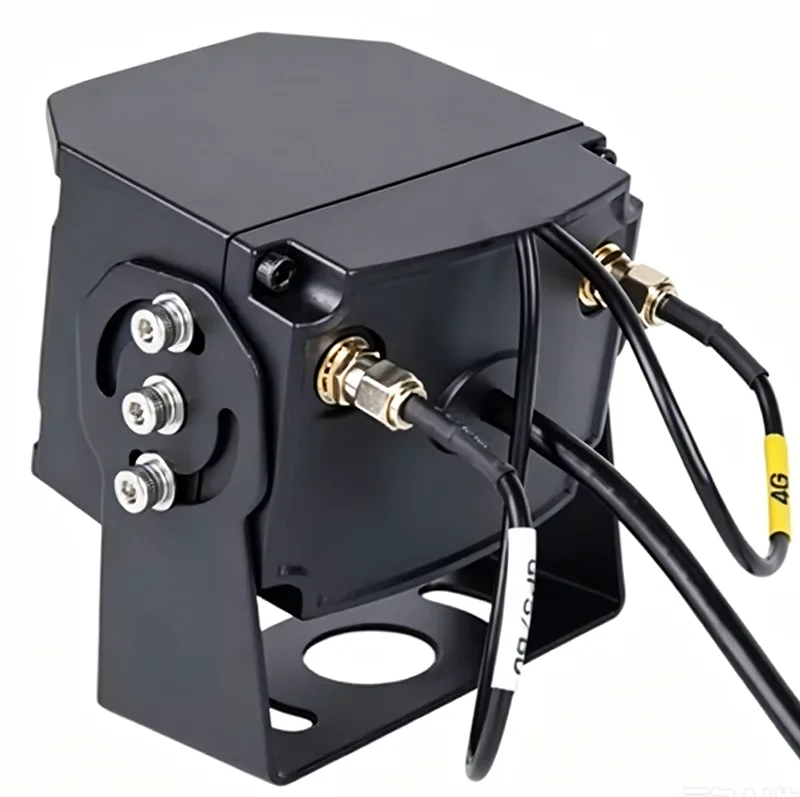

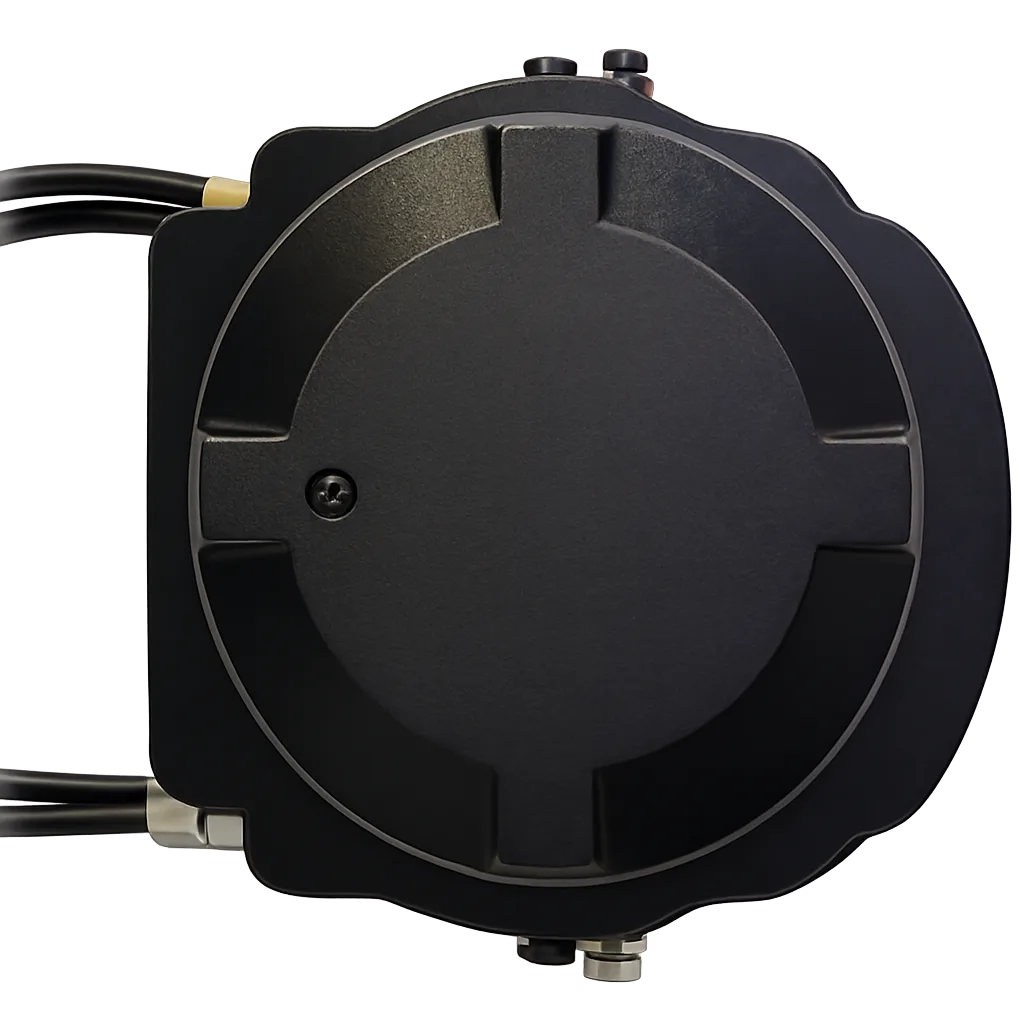

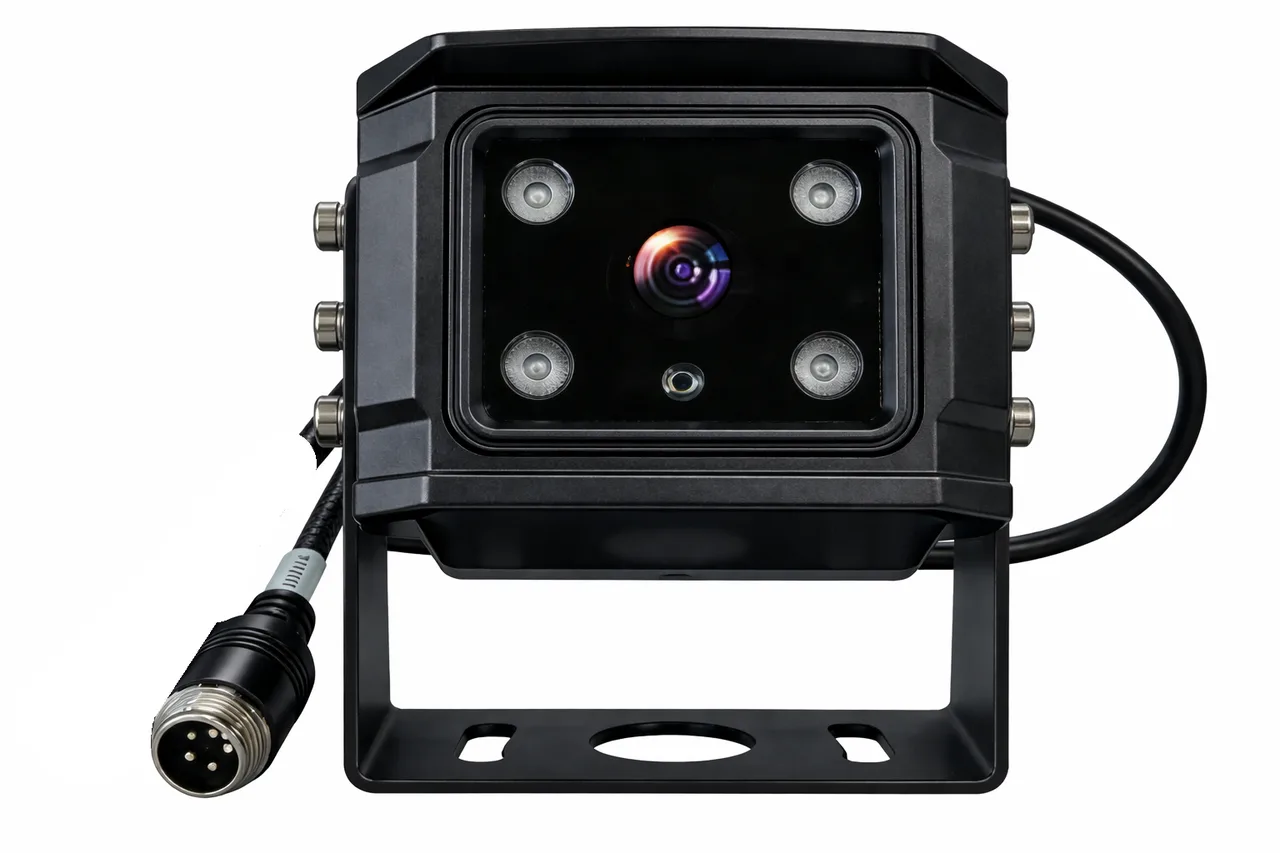

M93H 4G camera is a comprehensive, lightweight, and easy-to-install wireless video application product. It features high integration, waterp…
Key Specs
| TF card | 1 sheet, maximum 512GB |
|---|---|
| WIFI | No |
| 4G | Supports all network compatible 4G cards |
| RS232 | Supports one RS232 input (optional) |
| Size | 77.5 mm ( W ) * 61 mm ( H ) * 74 mm ( D ) |
Full Specification
（M93Hv-2CH）
Product Introduction
M93H 4G camera is a comprehensive, lightweight, and easy-to-install wireless video application product. It features high integration, waterproof and shockproof design, simple installation, and meets the specific requirements of rapid deployment and remote dispatching. It is suitable for business scenarios such as construction site monitoring, vehicle surveillance, and theft prevention. The AI version also supports functions such as facial recognition, blind spot personnel detection, and driver fatigue warning.
Product Advantages
- Integrated design
- IP66 protection rating
- Equipped MIC-Online intercom
- Wide voltage supply
- Supports 4G , BD/GPS
- Supports multiple application platforms
- Supports video AI functions
Core parameters
project | Parameter Description | |
Video parameters | Built-in Input CMOS | 1080P 25/30fps |
Infrared night vision | Automatic color-to-black switch at a distance of 10 meters. | |
Extended input video | External AHD 1080P input is available (optional). | |
Video output | AHD 720P/1080P output (optional) | |
Lens parameters | Default 2.8mm (View angle 105 °) | |
Audio parameters | Audio input | Built-in microphone (optional) |
Audio output | Built-in speaker | |
Storage method | TF card | 1 sheet, maximum 512GB |
Positioning method | BeiDou/GPS | Supports mixed positioning |
Network | 4G | Supports all network compatible 4G cards |
WIFI | No | |
Interface | Alarm input | 1-channel ADC input(optional) |
Alarm output | 1-channel controllable 10V voltage output(optional) | |
RS232 | Supports one RS232 input (optional) | |
Power supply | Input voltage | 8-36V |
Output voltage | 10V (optional) | |
Power Management | ACC power on/off, alarm input triggers power on/off | |
Power connection method | Vehicle power supply and adapter, can be equipped with a dedicated UPS (plug and play, can work for 18 hours on a full charge). | |
Power consumption | Standalone version: 1.9W during the day, 3.5W at night. | |
Intelligent algorithms | Dysfunction Driving Management System (DSM) | Facial recognition, closing eyes, yawning, making a phone call, smoking, looking left and right (optional) |
Blind spot monitoring BSD | Personnel intrusion detection (optional) | |
Advanced Driver Assistance Systems (ADAS) | Lane departure warning, forward collision warning, and vehicle in front starting (optional) | |
License plate recognition | Supports license plate recognition, image capture, and uploading.(optional) | |
Size | 77.5 mm ( W ) * 61 mm ( H ) * 74 mm ( D ) | |
Bracket height | 23.5mm | |
Weight | NW:0.42KG (Fluctuation within 5%) | |
Work environment | Operating temperature | -20℃ to +70℃ (Good ventilation environment) |
Operating humidity | 10%–95% (non-condensing ) | |
Other | Installation mode | Comes with stand |
Protection level | IP66 | |
Note : The AI algorithm can only support one set at a time.

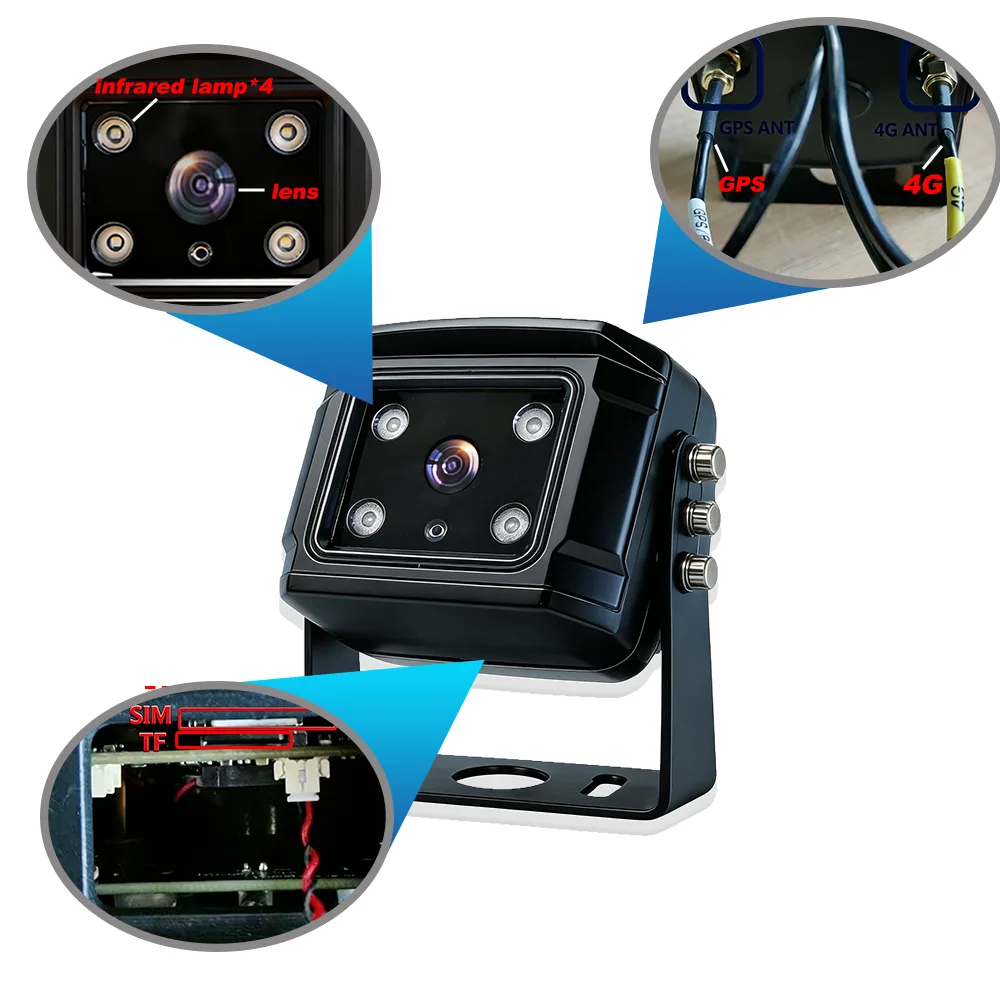

Interface Description

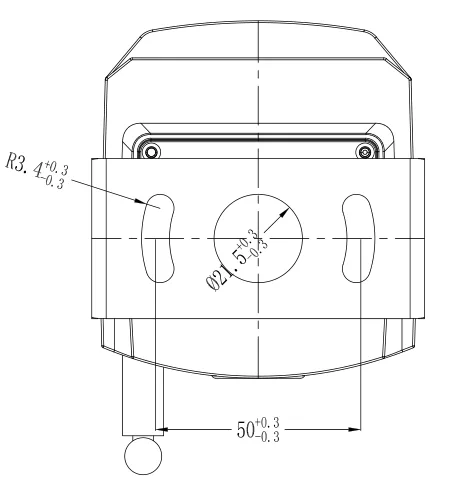

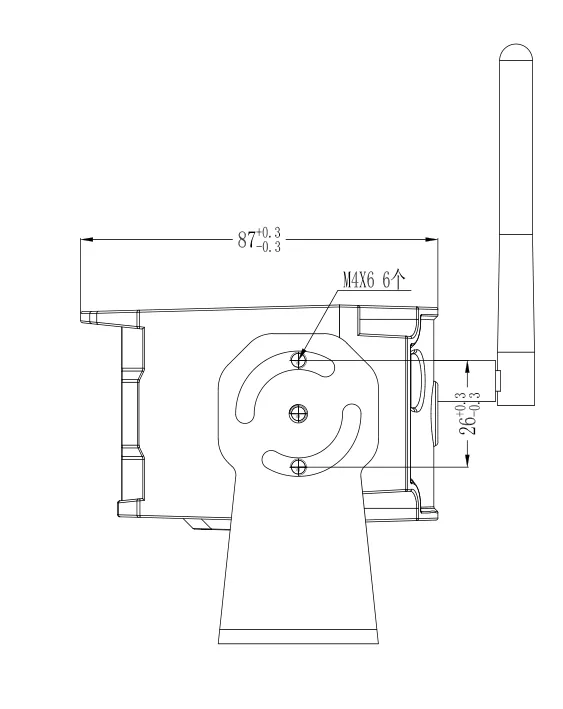

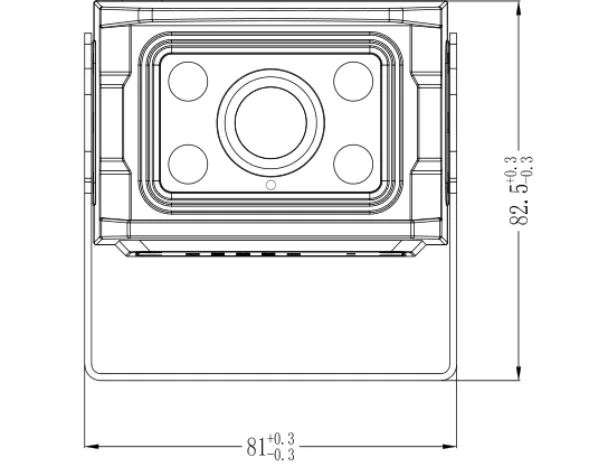

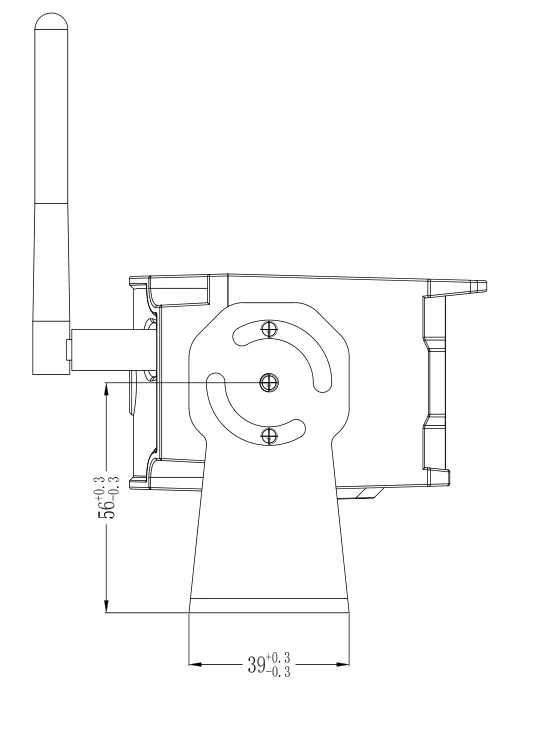

Dimensions
