M91Sv

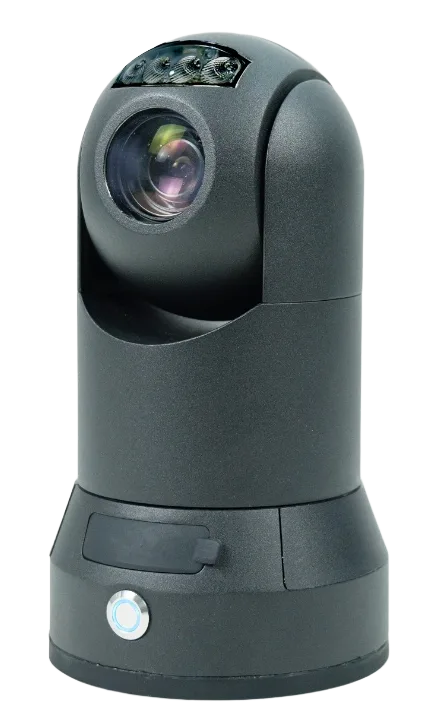

The M91Sv lightweight MINI surveillance ball is a wireless video application integrated product with comprehensive functions, easy installat…
Key Specs
| Video Encoding | H.264/H.265 |
|---|---|
| TF card | 1 , maximum 1T |
| WIFI | 2.4G |
Full Specification
Product Introduction

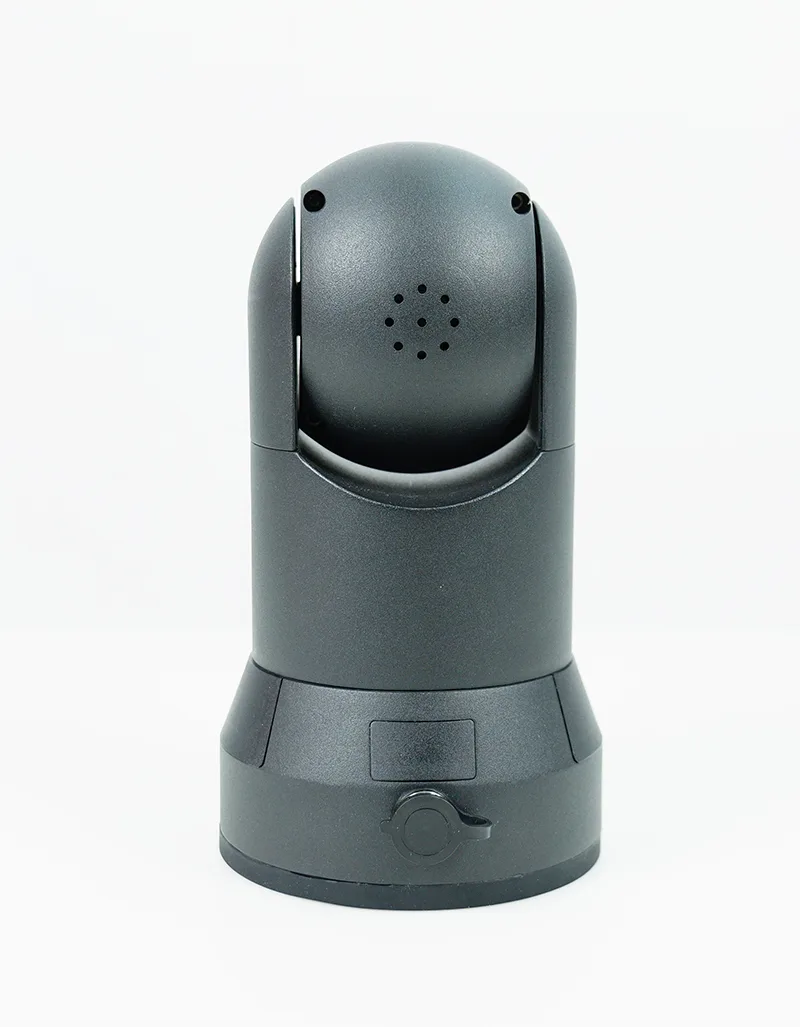

The M91Sv lightweight MINI surveillance ball is a wireless video application integrated product with comprehensive functions, easy installation and use. It has the characteristics of high integration, large-capacity lithium battery pack, waterproof and shockproof, and MINI size. The bare weight is only 1.4KG , which can be carried around and meets the special requirements of temporary rapid surveillance and remote dispatching and command.
Product Advantages
- Lightweight design
- IP6-5 protection level
- Voice intercom function
- Built-in large-capacity battery, long-lasting work
- 360 ° PTZ control
- Support 4G , WIFI
- Support wired network port
Core parameters
project | Parameter Description | |
Video Parameters | IPC Input | 1 |
Optical zoom | Maximum 10 times | |
Night vision distance | 30m | |
Video Encoding | H.264/H.265 | |
Video Pixels | Maximum 2K (optional) | |
Support Agreement | GB28181. Private protocol | |
Audio parameters | Audio Input | built-in |
Audio Output | built-in | |
Storage | TF card | 1 , maximum 1T |
Positioning method | BeiDou /GPS | Support, mixed positioning possible |
network | 4G/5G | 1 piece |
WIFI | 2.4G | |
Wired network port | 1 channel (optional) | |
Call the police | I/O | 1 channel (optional) |
PTZ | Horizontal range | 360° continuous rotation |
Horizontal speed | 120°/s | |
Vertical Range | -15° - 90° | |
Vertical speed | 60°/s | |
Preset Point | 200 | |
power supply | Power | 5000mAh , 11.1V lithium battery pack |
Working hours | during the day: 10 hours Night time: 6 hours | |
Power Management | Switch button | |
Charging Mode | USB ( 2A ) / Power Bank | |
Physical specifications | size | 102.4mm ( W ) *188mm ( H ) *85mm ( D ) |
Bracket height | Maximum height including bracket : 1.7m | |
weight | NW: 1.4KG, GW: 2.7KG (The remaining floating rate is 5%) | |
Work Environment | Operating temperature | -25℃～+60℃ (Good ventilation environment) |
Operating humidity | 10%～95% (no condensation ) | |
other | Installation Mode | Comes with bracket/ chassis magnet adsorption |
Protection level | IP65 | |

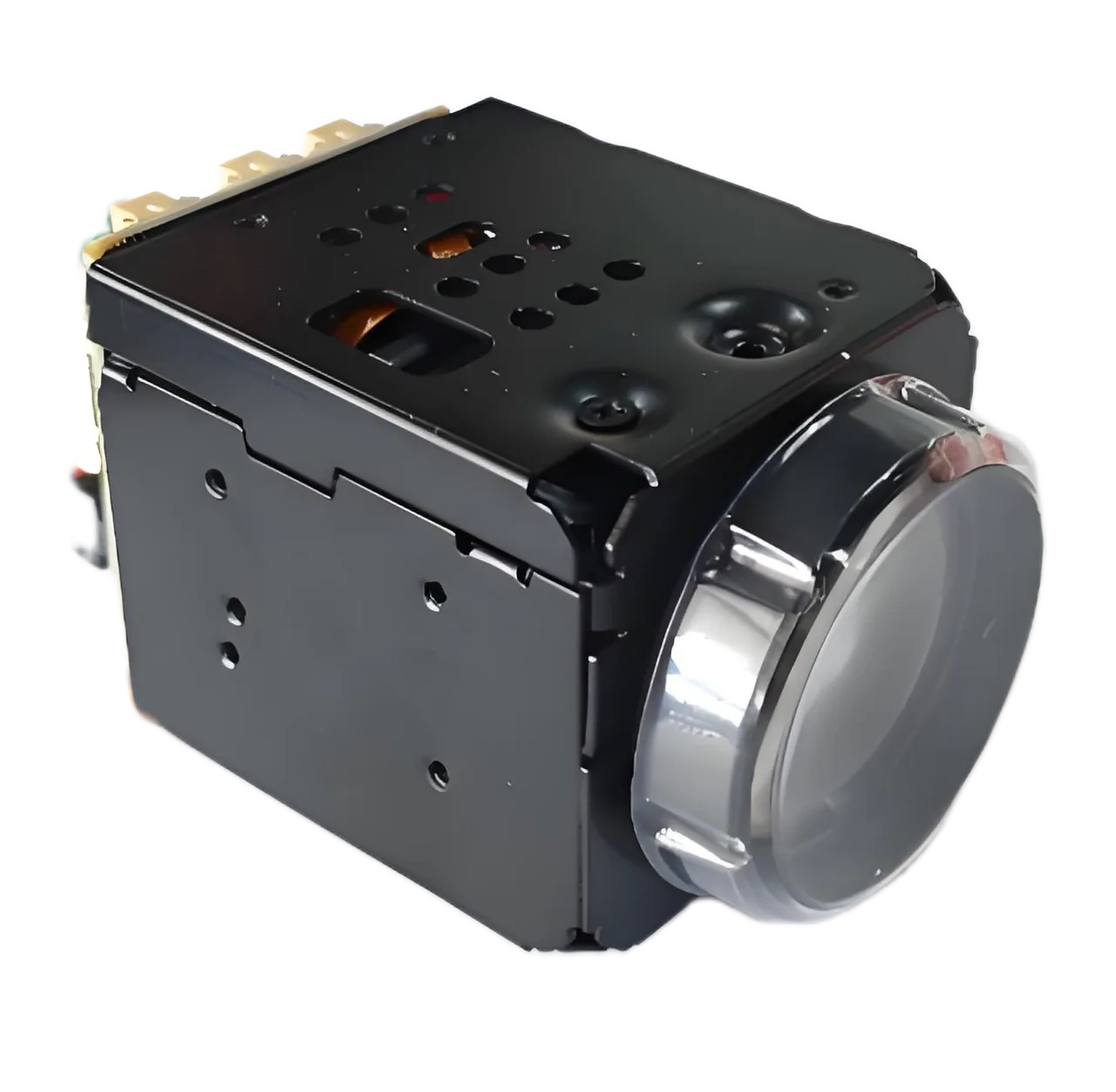

Movement parameters
Movement parameters are configured according to the specific model of the equipment. If necessary, please inform our company of your actual technical requirements for assistance.

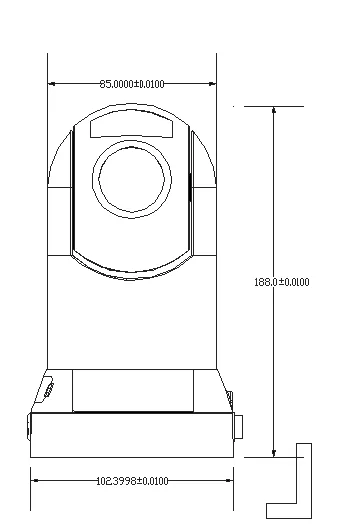

Dimensions
