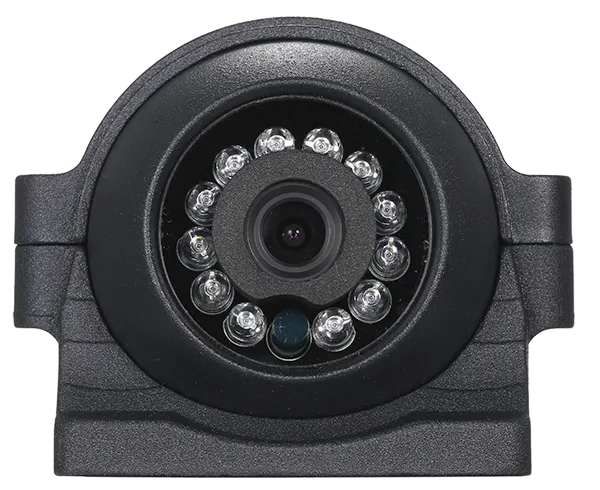

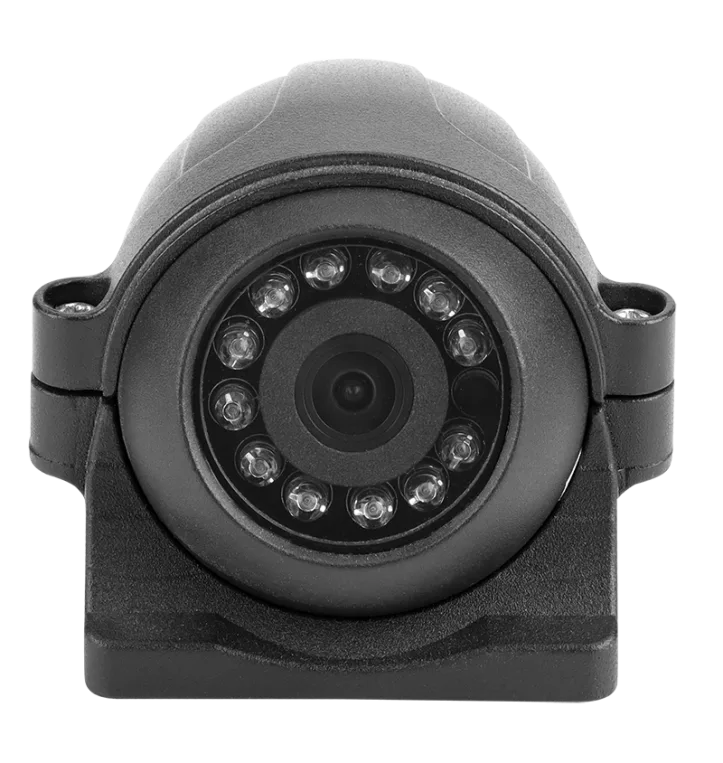

Camera
701
Model MX-AHDH-701A-NNP-005H
Low power consumption, easy heat dissipation; good color reproduction, clear picture quality;
Key Specs
| Resolution | 1080P/720P |
|---|---|
| Pixel | 1920 ( H) x 1080(V) |
Full Specification
Model: MX-AHDH-701A-NNP-005H
Features:
◎Low power consumption, easy heat dissipation; good color reproduction, clear picture quality;
◎Exquisite, beautiful and fashionable appearance;
◎Fashionable appearance; high strength, highly resistant to impact damage;
◎ Using 9 imported high-power LED lights, shooting distance 10 m;
◎Infrared automatically turns on when the light is lower than 10Lux;
◎Adopt imported lens to prevent water vapor from affecting the image;
◎Appearance color: black ;
◎ Waterproof grade: IP67 ;
◎Specialized aviation interface design .
Specifications:
Model | MX-AHDH-701A-NNP-005H |
Image Sensor | 1/4″ CMOS AHD |
Resolution | 1080P/720P |
Signal system | PAL / NTSC |
Pixel | 1920 ( H) x 1080(V) |
Lenses | 2.8mm/3.6mm |
Horizontal angle of view | 100°/80° |
Minimum illumination | 0.001 ( Lux ) (Infrared on) |
Backlight compensation | built-in |
Shutter speed | 1/50~1/10000 seconds ( P ) 1/60-1/10000 seconds ( N ) |
White Balance | automatic |
Signal-to-Noise Ratio | Greater than 50db (AGC OFF) |
Video Output | AHD , amplitude 1Vp-p, 75Ω |
Power supply | Rated DC12V±10% |
Power consumption | Infrared light on Infrared light off ≤ 3W |
Operating temperature | -20 ℃ ~ +70℃ |
Infrared wavelength | 850nm |
Number of infrared lights | Φ 5 12LED lamp |
Infrared light irradiation distance | 5M |
Infrared light illumination | ＞3Lux |
Jack | M12 aircraft carrier head (with O -ring) |
Dimensions | 90mm*77.5mm*62mm |

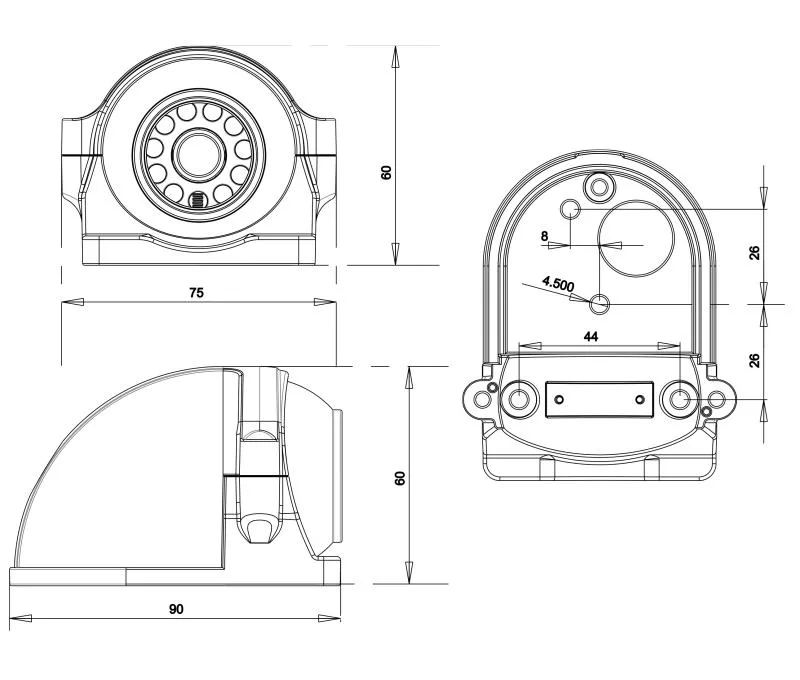

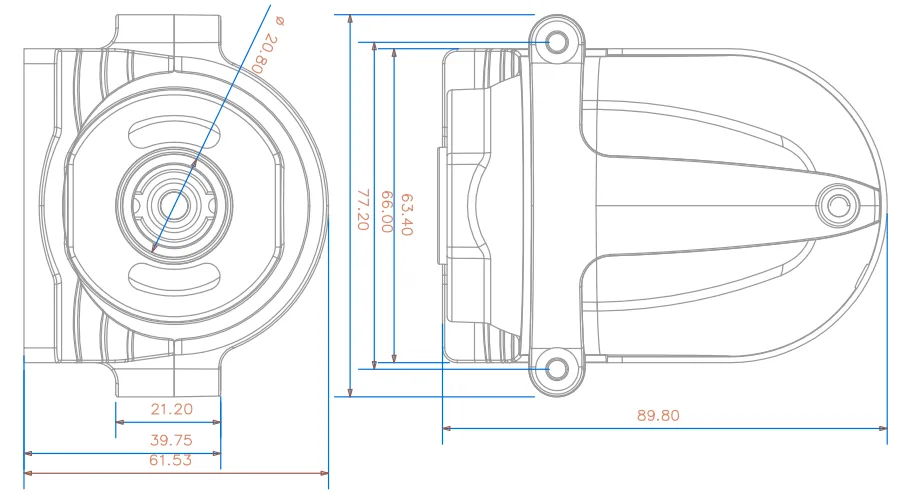

Dimensions:
