PTZ

PTZ--Relay connection

As following:

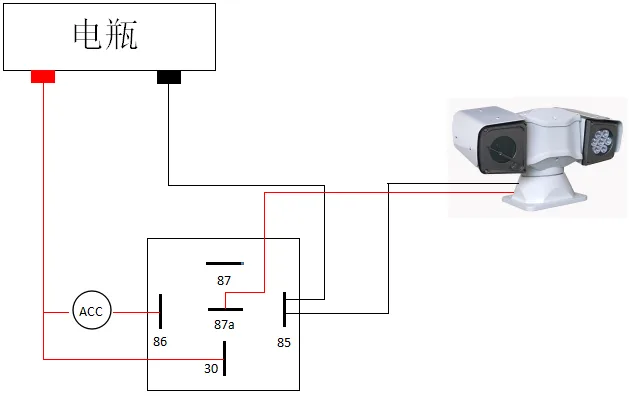

Connection

Description：

1. The 85 and 86 pins of the relay are respectively connected to the negative pole of the car fuse box/the negative pole of the pan/tilt power cord and the ACC ignition switch.
2. The 30-pin of the relay is connected to the normal power of the car.
3. The 87a of the relay is connected to the positive pole of the power cord of the gimbal.
