Camera
839
Model MX-DSMM-839A-NNP-015H
Exquisite design, fine workmanship, precise circuitry and rigorous structure, reflecting the highest level of technology;
Key Specs
| Horizontal angle | 80 ° |
|---|
Full Specification
Model: MX-DSMM-839A-NNP-015H
Features:
◎ Exquisite design, fine workmanship, precise circuitry and rigorous structure, reflecting the highest level of technology;
◎ Adjustable stand, allowing for angle adjustment;
◎ Focusing on driver behavior recognition ;
◎ Suitable for monitoring in various vehicle environments;
◎ Appearance color : Black;
Specifications:
Imaging devices | ISP: FH8536H | Sensor: GC2053 | |
Standard | AHD PAL | ||
Effective resolution | 1280 (H) x 720 (V)/1920 (H) x 1080 (V) | ||
Effective pixels | 720P/1080 P | ||
Synchronization System | Internal synchronization | ||
Vertical synchronization frequency | 50Hz / 60Hz | ||
Output image | DMS Black and White | ||
Video output | 1.0vp-p, 75Ω | ||
Gamma coefficient | 0.45 | ||
AGC | automatic | ||
White Balance | automatic | ||
lens | 4.0 mm | ||
Lens angle | Horizontal angle | 80 ° | |
Effective distance of infrared light | 1-2 meters | ||
IR-CUT | none | ||
audio | none | ||
Current | 165 mA ± 10% ( DC12V ) | ||
Voltage | DC 6-16V | ||
Operating temperature | - 20 °C~ 70 °C, RH95% MAX | ||
Storage temperature | -30°C~80 ° C, RH95% MAX | ||
Net weight | 182g | ||

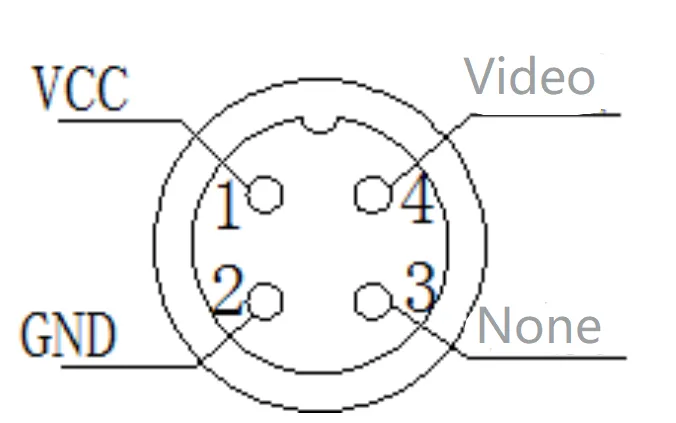

Wiring definition:

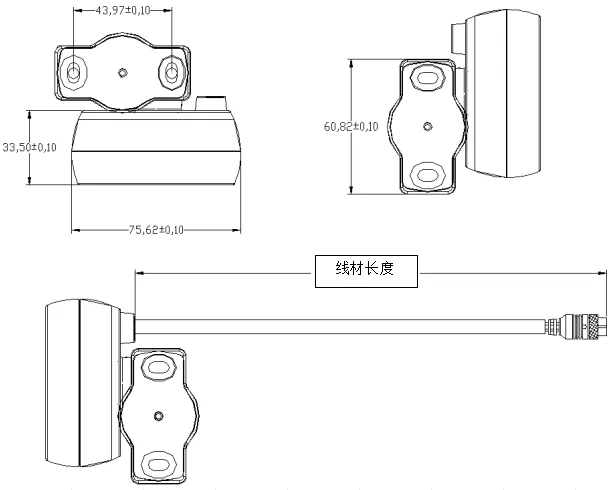

Product dimensions:
