Camera
813
Model MX-AHDH-813-ANP-015
Key Specs
| Pixel | 1920(H) x 1080(V) |
|---|---|
| Image sensor | 1/2.9″ CMOS AHD |
| Lens | 3.6mm/2.1MM |
| Interface | M12 |
Full Specification
Model：MX-AHDH-813-ANP-015
Product features：
- Exquisite design, exquisite workmanship, precise circuits and rigorous structure, reflecting the highest technology;
- Wide angle adjustable lens, which can adjust the angle freely during the installation and fixation process;
- Integrated structure, shockproof and anti loosening design;
- Suitable for monitoring in various vehicle environments;
- Image: positive/mirror image;
- Appearance color: black;
- Special aviation interface design with silicone sleeve and silicone ring.
Specifications:
Model | MX-AHDH-813-ANP-015 |
Image sensor | 1/2.9″ CMOS AHD |
Signal system | PAL |
Pixel | 1920(H) x 1080(V) |
Lens | 3.6mm/2.1MM |
Horizontal angle of view | 85°/130° |
Minimum illumination | 0Lux |
Backlight compensation | Built-in |
Shutter speed | 1/53~1/100,000（Sec） |
White balance | Auto Tracing White Balance |
Signal-to-noise ratio | ＞50db (AGC OFF) |
Video output | 1.0Vp-p,75Ω |
Source | DC12V±10% |
Power consumption | ≤3W |
Working temperature | -20℃ ~ +70℃ |
Infrared wavelength | 850 |
IR LED Quantity | 5 |
IR View Distance | 0-3M |
Infrared light on illumination | 0Lux |
Interface | M12 |

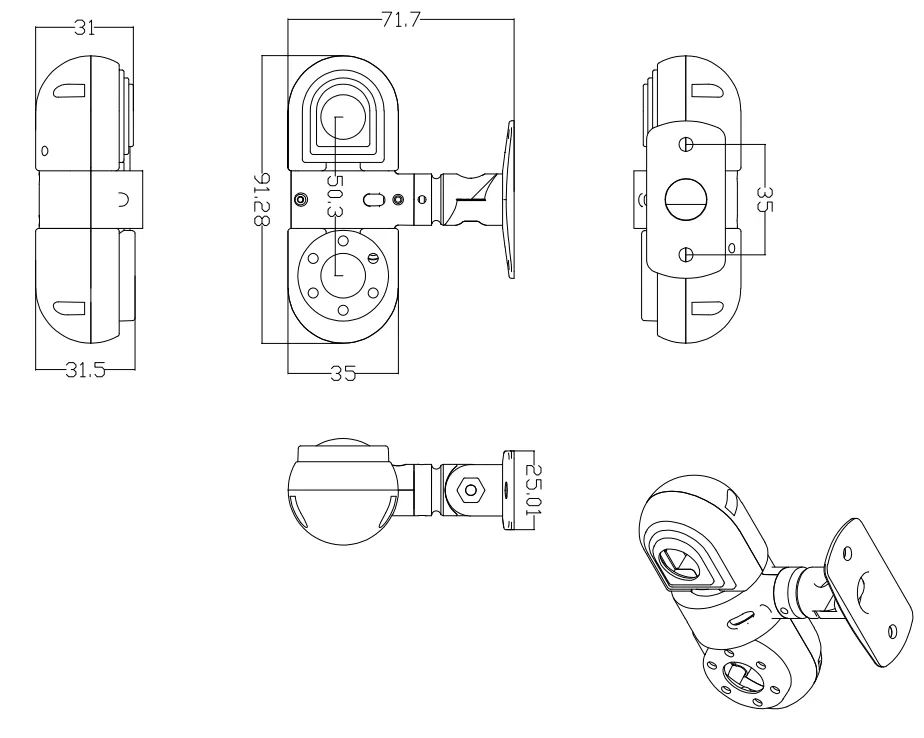

Product size：
