Full Specification

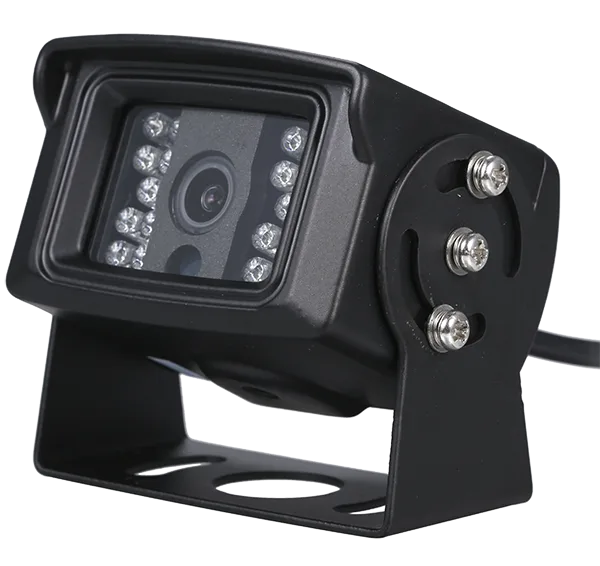

Model: MX-AHDH-803-NNP-WIFI-H , 2.8mm
Features:
- Low power consumption and easy heat dissipation;
- Wide viewing angle, adjustable stand,
- Provide indoor and outdoor sun protection;
- Waterproof grade, IP6 6 ;
- Integrated structure, shockproof and anti-loosening design;
- Applicable to various vehicle monitoring environments
- Color: Black;
- Suitable aviation connector design;
Specification:
Model | MX-AHDH-803-NNP-WIFI-H |

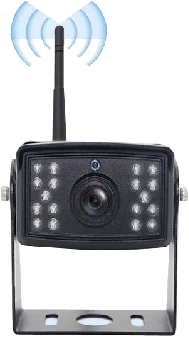

Wireless Camera | |
Image Sensor | 1/2.9 inch CMOS |
Image resolution | 2MP |
Image pixels | 1920(horizontal)*1080(vertical) |
Video frame rate | 1080p@25fps or 30fps |
Minimum illumination | Color: 0.01Lux, Black and White: 0.001Lux, 0Lux (infrared on) |
lens | 2.8mm 2MP IR plate lens (90°) |
Horizontal angle of view | 100° |
day and night | Automatic (ICR) / Color / Black and White |
Infrared LED | 16 LED arrays |
Infrared distance | 10-15 meters |
Wide dynamic range | Wide dynamic range |
Wireless | Built-in 2.4GHz wireless signal receiver |
Operating temperature | -20 ⁰ C-70 ⁰ C |
power supply | DC 12V±20% |
shell | IP66 rated black metal housing |

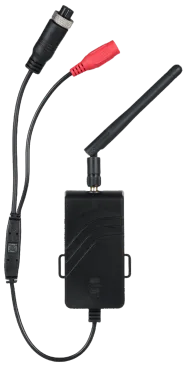

2.4G HD wireless waterproof receiver | |
power supply | DC12V-24V |
Emission current | 300 mAh |
Video Output | 720P (HD) |
Operating frequency | 2400-2483.5MHz |
Transmission distance | 500m open space |
Startup time | 3 seconds |
Transmission power | 12Mbps |
Pair | automatic |
Sound | No |
Water proof | IP66 |
Delay time | 9-120 ms |
Operating temperature | -20 ～ 70 ℃ RH95% or less |
Storage temperature | -30 ～ 80 ℃ RH95% or less |
Shell | Black plastic housing |

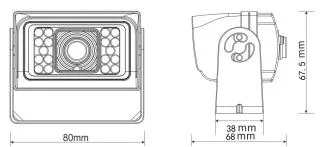

Aspect | 80(length)*40(width)*18(thickness)mm |
Red light on/off | Power on/off |
Flashing red light | Pairing |
Green light on | Connection successful |
Green light off | Signal loss |
