Accessory
SOS
SOS button Model: MX-EPB-01-03 parameter size drawing product component
Full Specification
SOS button
Model: MX-EPB-01-03
parameter
Item | Parameters |
Environment temperature | -25℃～+70℃ |
Dielectric Strength | AC250V (50Hz for 1mi nute) |
Rating | DC12V. 50mA |
Electrically Life | 100. 000Cycles |
Contact Resistance | ≤30m0 |
Travel | 0.2士0.05mn |
Insulation Resistance | ≥100MO |
Actuating Force | 100 -350gf |
Relative Humidity | (40C)≤95% |

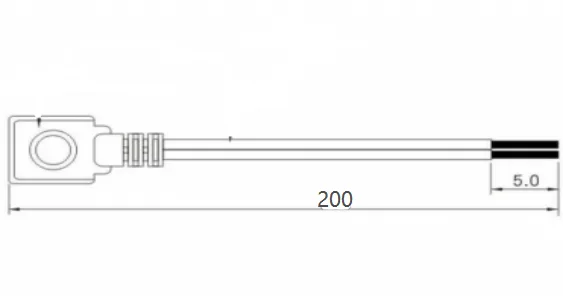

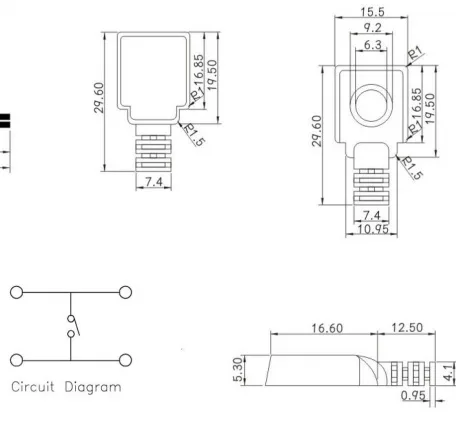

size drawing
product component
Name | Model | Color | Materials | Quantity | Size |
Injection moulding | Push-button alarm switch | black | PVC | 1 | |
Switch | Reset switch | black | PA66 | 1 | |
Follow-up material specifications | 2468 2pin | Black | PVC | 1 | 5ooMM |
