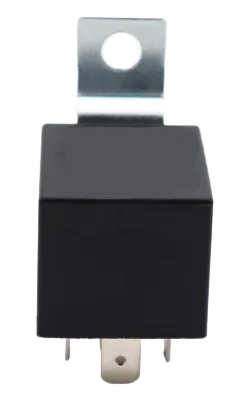

MX-RLY-12-40 Relay
Product Introduction
Relays are electrical control devices used in vehicles . When the change in input quantity reaches the specified requirement, a relay causes a predetermined step change in the controlled quantity in the electrical output circuit. They are often used in automatic switching systems where small current controls large current operation . Relays play the role of automatic adjustment, safety protection, and circuit conversion in the circuit of the entire automotive equipment .
Features
- 40A contact switching capability
- Contact form 1Z: a set of rotary
- Assembled welding wire for easy use
- Relay pins comply with ISO 7588 PART 1
Core parameters
Electric shock parameters
Contact Material | silver oxide tin steel |
Contact Forms | 1Z conversion |
Contact Load | NO: 40A/14VDC |
Contact Resistance | 50m 2 |
Max.Switching Current | 150A ON, 40A OFF |
Electrical Life | 1*10⁵ |
Mechanical Life | 1*10⁶ |
Coil parameters
Nominal Volt ( VDC ) | Coil Res. X(1±10%)Ω | Shunt Res. X(1±10%)Ω | Pull-in Volt. ( VDC ) | Release Volt. ( VDC ) | Max Applicable Volt. ( VDC ) |
12V | 80 | 8 | 1.2 | 20.2(23 ℃)15.7(85℃) |

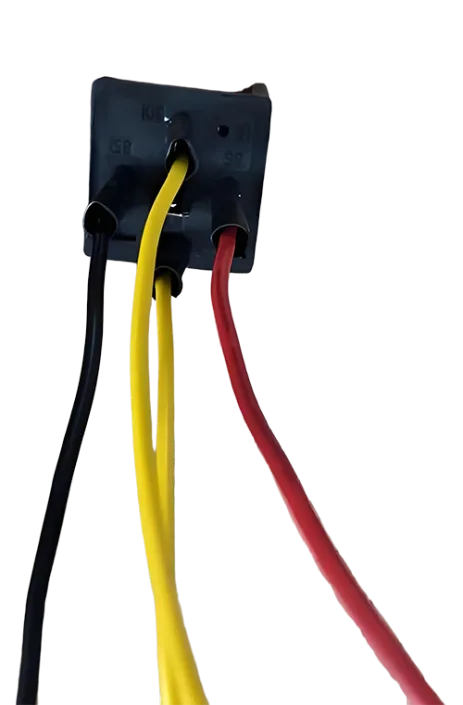

Harness parameters
86 Red Line
85 Black Line
30 87 Yellow Line
Wire gauge: UL1007 #18AWG
Cable length: 20cm
Thread tail: 10MM glue left
Heat shrink sleeve for welding

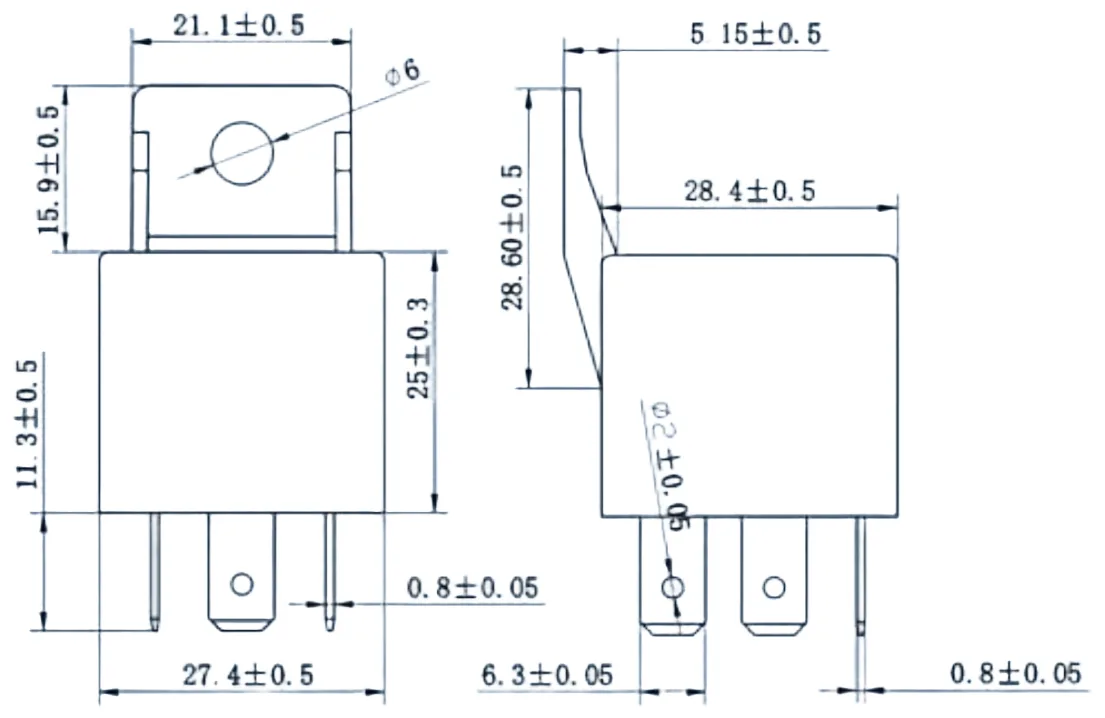

Product size
