Multil- functional Mic Model：MX-HMC-02 Product parameters Product size Installation matters Pins definition
Key Specs
| Power | 5-12V/200mA |
|---|
Full Specification

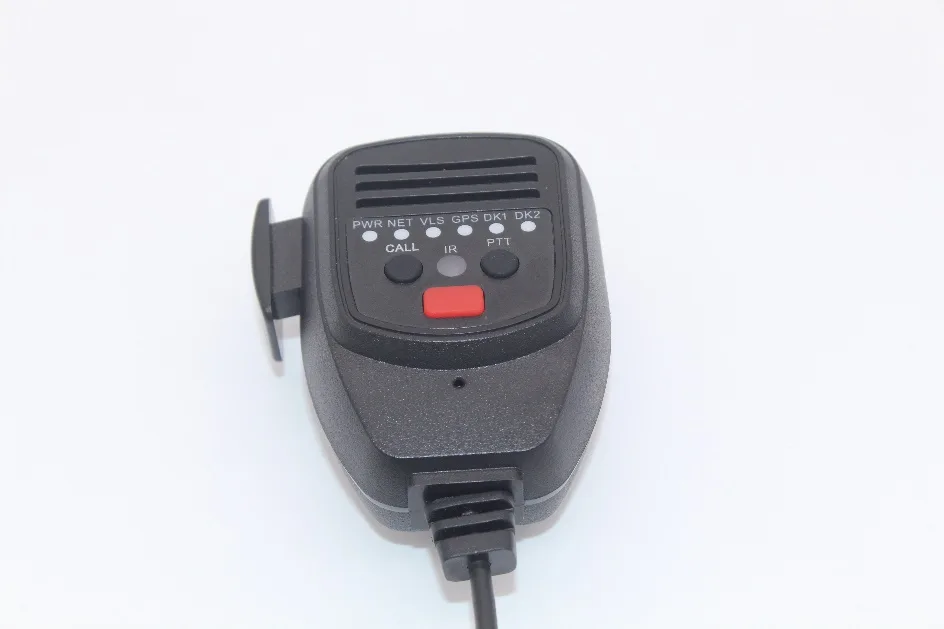

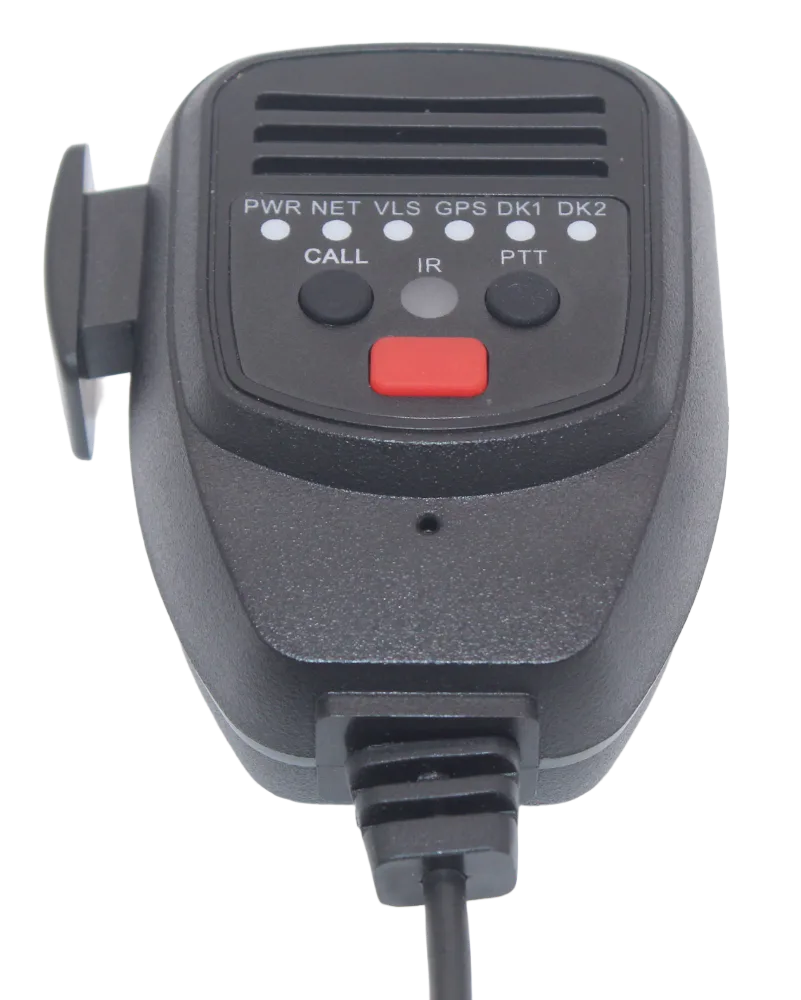

Multil- functional Mic
Model：MX-HMC-02
Product parameters
Item | Description | |
Video/Audio | Receiving sensitivity | 0.25μV |
Rated audio | 500mW | |
Spurious suppression | 70dB | |
Audio response | +1~-3dB | |
General | Working voltage | 5-12V |
Water and dust resistant | IP54 | |
Operating temperature | -30℃~+60℃ | |
Size(H*W*D) | 82*58*40mm | |

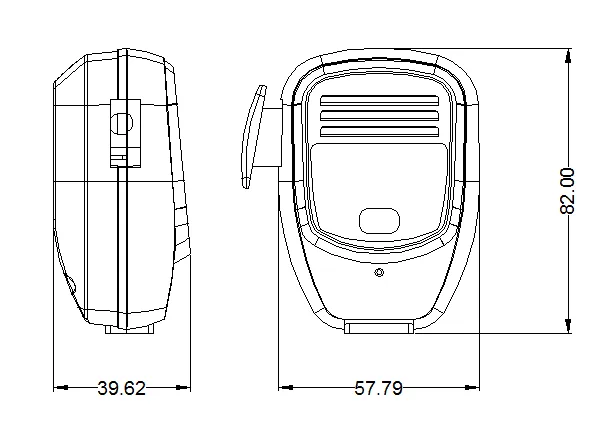

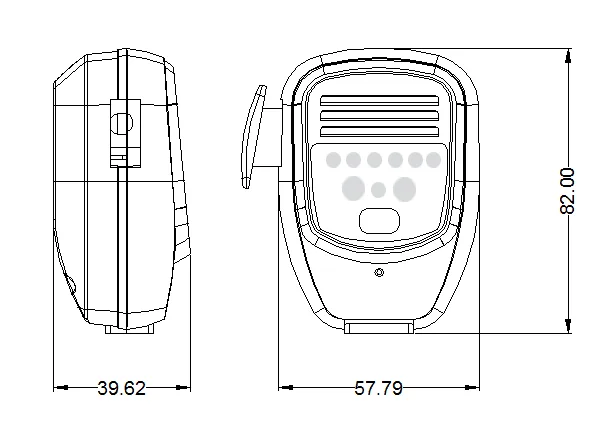

Product size
Installation matters

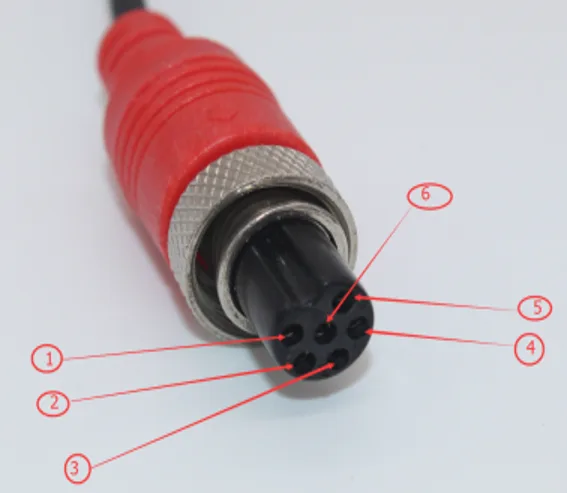

- Pins definition
NO. | function | describe |
1 | Power | 5-12V/200mA |
2 | GND | GND |
3 | RS232 RX | RX1 |
4 | RS232 TX | TX1 |
5 | MIC | IN |
6 | SPK | OUT |
