Full Specification

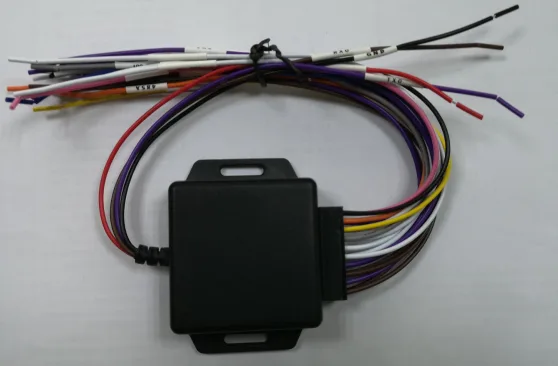

Multifunctional expansion box
Functions＆features
- Support multiple serial port expansion, can dock more sensors, peripherals, expansion function is stronger.
- Support 4ch RS232 interface, each interface can be set up and work independently.
- Support 1ch RS485 interface.
- Support 4ch switch alarm input, 2ch analog alarm input, 1ch alarm output;
- Support 1ch PWM interface, input and output can be configured.
Technical Parameters
Project | Performance index | |
Input interface | power | 5V-12V |
GND | 1piece | |
TXD(RS232) | 1 piece | |
RXD(RS232) | 1 piece | |
Indicator light | power led | The indicator light comes on when the power is on，When there is data interaction, the lights flicker |
Output interface | RS232 | 4 piece，independent work |
RS485 | 1 piece | |
I/O Alarm input | 4 piece | |
Analog quantity alarm input | 2 piece | |
Alarm output | 1 piece | |
PWM | 1 piece，configurable | |
power output | 5V@1A | |
Installation matters

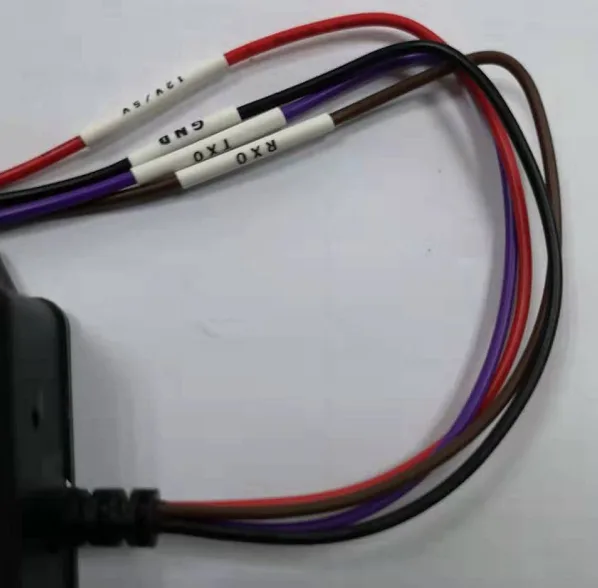

- Input interface definition
PIN | Color | Definition |
1 | red | 12V/5V |
2 | brown | RXD |
3 | purple | TXD |
4 | black | GND |

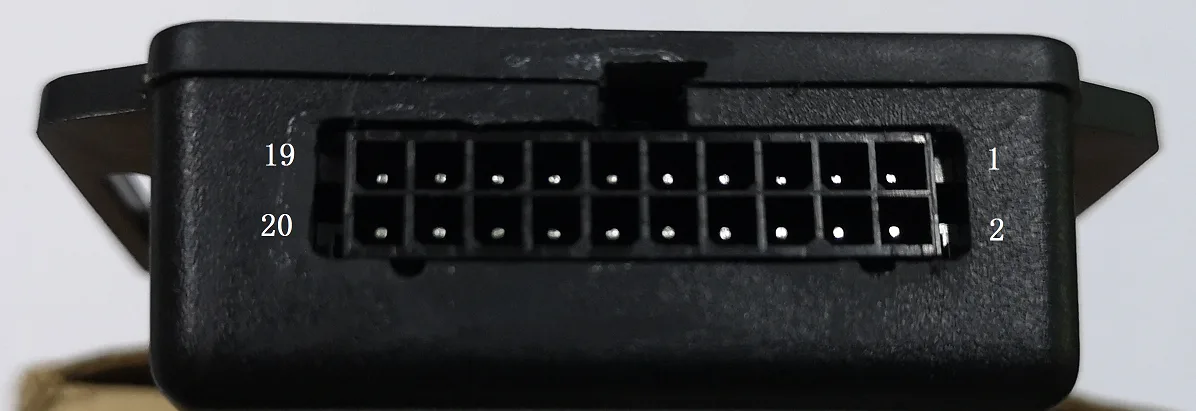

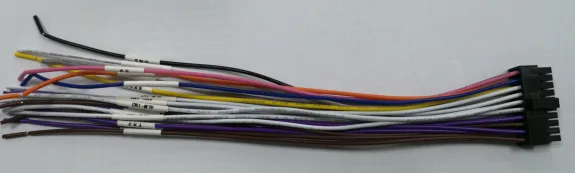

- Output interface definition
PIN | color | definition | PIN | color | definition |
1 | brown | RX2 | 2 | brown | RX1 |
3 | purple | TX2 | 4 | purple | TX1 |
5 | brown | RX4 | 6 | brown | RX3 |
7 | purple | TX4 | 8 | purple | TX3 |
9 | white | ALM_IN2 | 10 | white | ALM_IN1 |
11 | white | ALM_IN4 | 12 | white | ALM_IN3 |
13 | gray | ALM_OUT | 14 | white | ADC_IN1 |
15 | yellow | 485B | 16 | white | ADC_IN2 |
17 | orange | 485A | 18 | blue | PWM |
19 | black | GND | 20 | pink | 5V |
